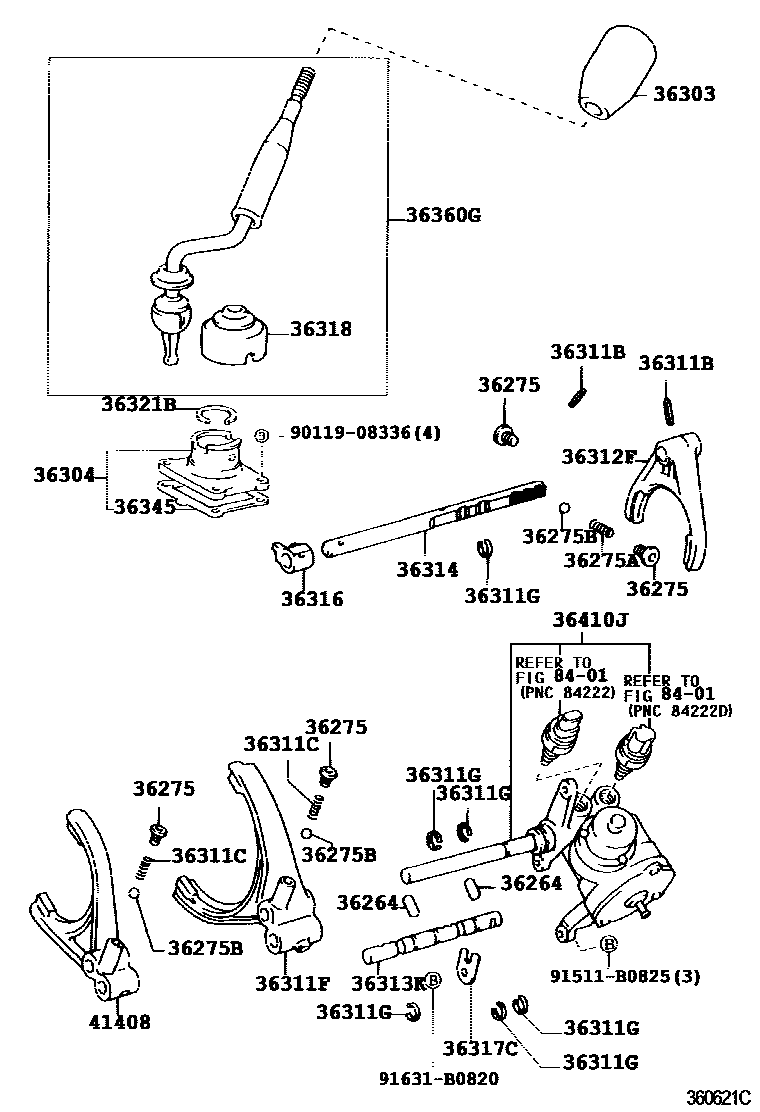

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06007×2iUCK45200009-200408

L=8.6,OD=6

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×4iUCK45200009-200408

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116iUCK45200009-200408

L=23

36275BBALL, SHIFT DETENT

main90360-10003×3iUCK45200009-200408

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-34030iUCK45200009-200408

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35051iUCK45200009-200408

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2iUCK45200009-200408

L=22

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-18091×2iUCK45200009-200408

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36301-35010iUCK45200408

main36311-35060iUCK45200009-200408

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002×3iUCK45200408

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-35011iUCK45200408

main36312-35040iUCK45200009-200408

36313KSHAFT, TRANSFER GEAR SHIFT FORK

main36313-35090iUCK45200009-200104

main36313-35091iUCK45200104-200408

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35160iUCK45200009-200408

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35040iUCK45200009-200408

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35041iUCK45200009-200408

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iUCK45200009-200408

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90520-45009iUCK45200009-200408

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iUCK45200009-200408

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-34050iUCK45200009-200408

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-34021iUCK45200009-200102

main36410-34022iUCK45200102-200408

main36410-35091iUCK45200408-200411

main36410-35092iUCK45200411

41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK

main41408-35010iUCK45200009-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908336

main90119-08336

91511B0825

main91511-B0825

91631B0820

main91631-B0820

25 parts on this diagram · 2 diagrams in section
