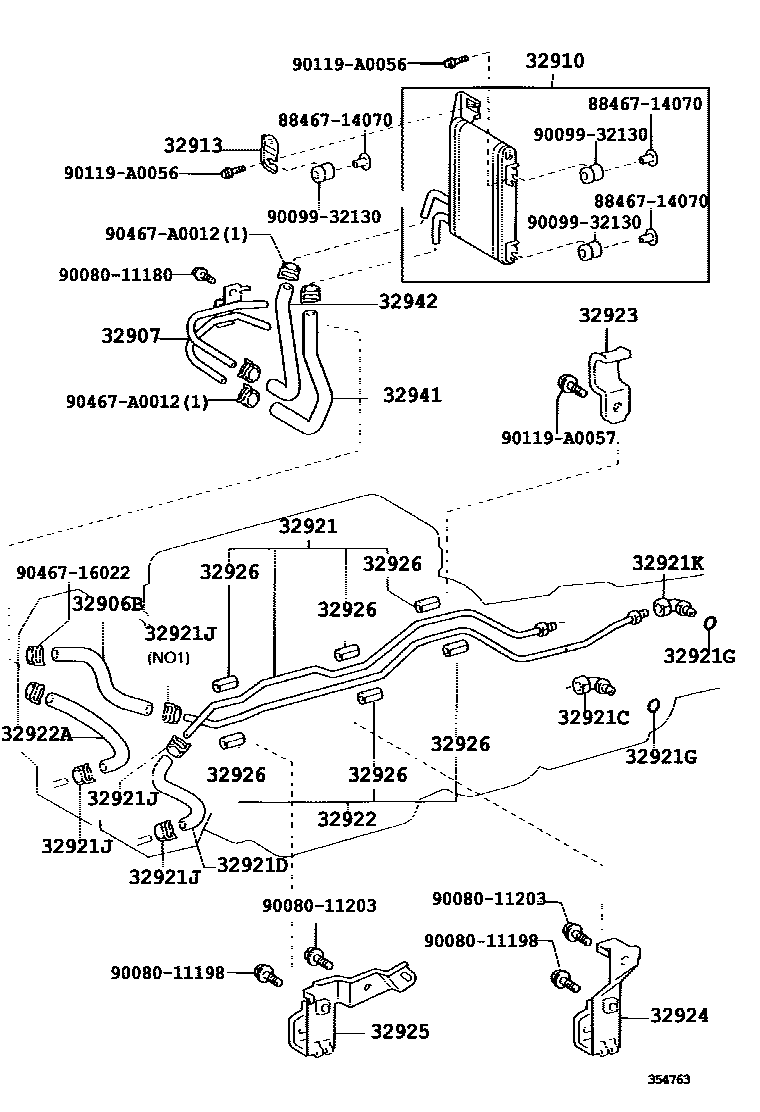

OIL COOLER & TUBE (ATM)

0001 1A750E,A750F 0002 1A340E,A340F

32906BHOSE, OIL COOLER TUBE(FOR OUTLET)

main32943-34010iUCK35,45200408

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-34040iUCK35,45200009-200408

32910COOLER ASSY, OIL

main32910-34020iUCK35,45200009-200408

32913BRACKET, OIL COOLER

main32913-34030iUCK35,45200009-200408

32921TUBE, OIL COOLER INLET, NO.1

main32921-0C010iUCK35,45200009-200408

main32921-0C020iUCK35,45200408

32921CUNION(FOR OIL COOLER TUBE)

main90407-14024iUCK35,45200009-200408

INLET

main90407-16009iUCK35,45200009-200408

OUTLET

main90904-07001iUCK35,45200408

32921DHOSE(FOR OIL COOLER INLET)

main90080-44038iUCK35,45200408

main90080-44063iUCK35,45200009-200408

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUCK35,45200009-200408

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022×2iUCK35,45200009-200309

NO.2

main90467-A0012×2iUCK35,45200309-200408

32921KUNION, NO.2(FOR OIL COOLER TUBE)

main90407-16009iUCK35,45200408

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0C010iUCK35,45200009-200408

main32922-0C030iUCK35,45200408

32922AHOSE(FOR OIL COOLER OUTLET)

main90080-44064iUCK35,45200408

main90080-44065iUCK35,45200009-200408

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-04030iUCK35,45200009-200408

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-0C010iUCK35,45200408

32925CLAMP, OIL COOLER TUBE, NO.3

main32909-0C020iUCK35,45200009-200408

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-04010×6iUCK35,45200009-200408

L=36,ID=10

32941HOSE, OIL COOLER INLET, NO.1

main32941-34020iUCK35,45200009-200408

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-34020iUCK35,45200009-200408

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9008011180

main90080-11180

9008011198

main90080-11198

9008011203

main90080-11203

9009932130

main90099-32130

90119A0056

main90119-A0056

90119A0057

main90119-A0057

9046716022

main90467-16022

90467A0012

main90467-A0012

27 parts on this diagram · 2 diagrams in section
