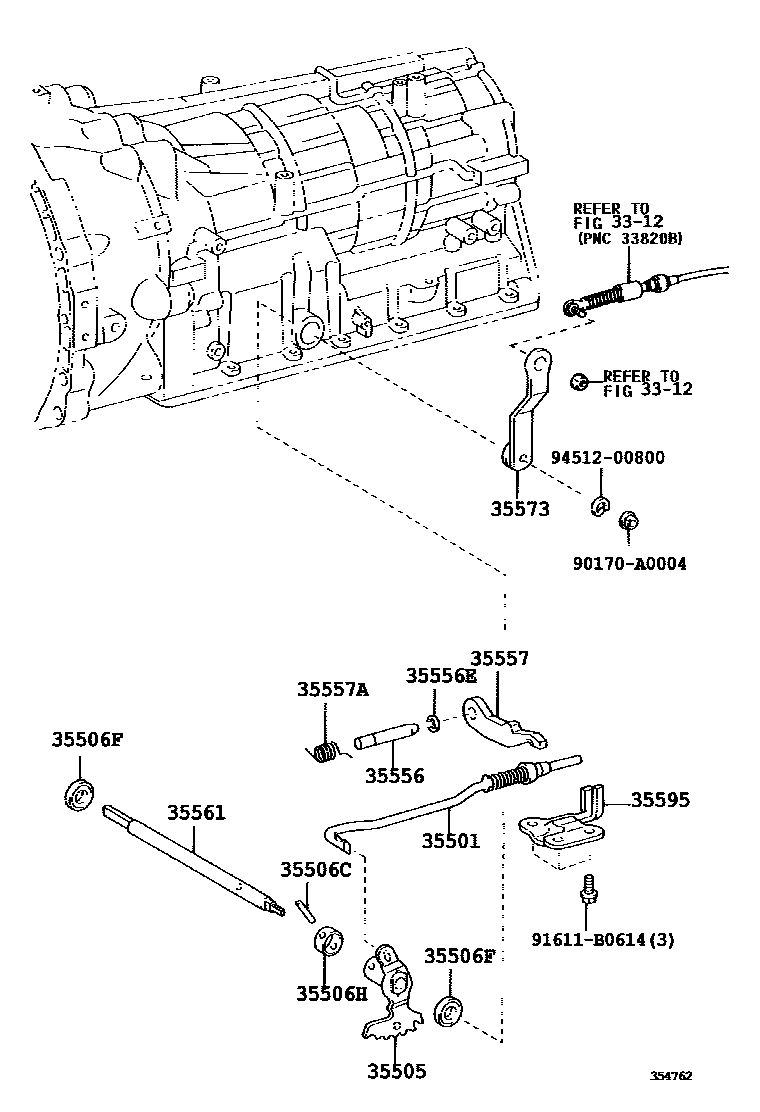

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A750E,A750F 0002 1A340E,A340F

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35501ROD SUB-ASSY, PARKING LOCK

main35501-0C010iUCK35200408-200605

main35501-60010iUCK35,45200009-200408

main35501-60020iUCK35200605

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50010iUCK35,45200009-200408

main35505-60050iUCK35,45200408

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iUCK35,45200408

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iUCK35,45200009-200408

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iUCK35,45200009-200302

main90560-20025iUCK35,45200302-200408

35556SHAFT, PARKING LOCK PAWL

main35556-0C010iUCK35,45200408-200707

main35556-30020iUCK35,45200009-200408

main35556-60020iUCK35,45200708

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUCK35,45200009-200408

35557PAWL, PARKING LOCK

main35557-60020iUCK35,45200009-200408

main35557-60040iUCK35,45200408

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iUCK35,45200009-200408

main90949-A3001iUCK35,45200408

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iUCK35,45200009-200408

main35561-60030iUCK35,45200408

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-34040iUCK35,45200009-200408

35595BRACKET, PARKING LOCK PAWL

main35595-60010iUCK35,45200009-200408

main35595-60030iUCK35,45200408

90170A0004

main90170-A0004

91611B0614

main91611-B0614

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
