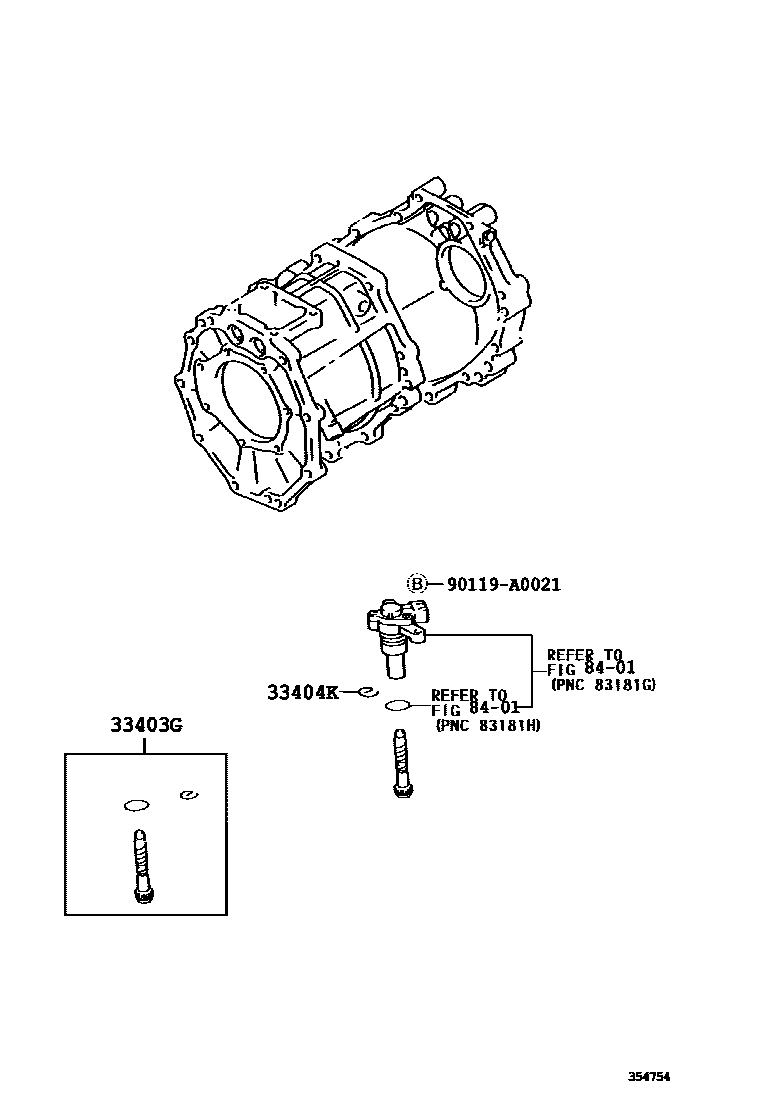

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A750E,A750F 0002 1A340E,A340F

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39365iUCK45200009-200408

N=30,MARK 30:11

main33482-39865iUCK35200408

N=17,MARK 17:6

main33482-59015iUCK35200009-200408

N=17,MARK 17:6

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iUCK45200009-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0021

main90119-A0021

4 parts on this diagram · 2 diagrams in section
