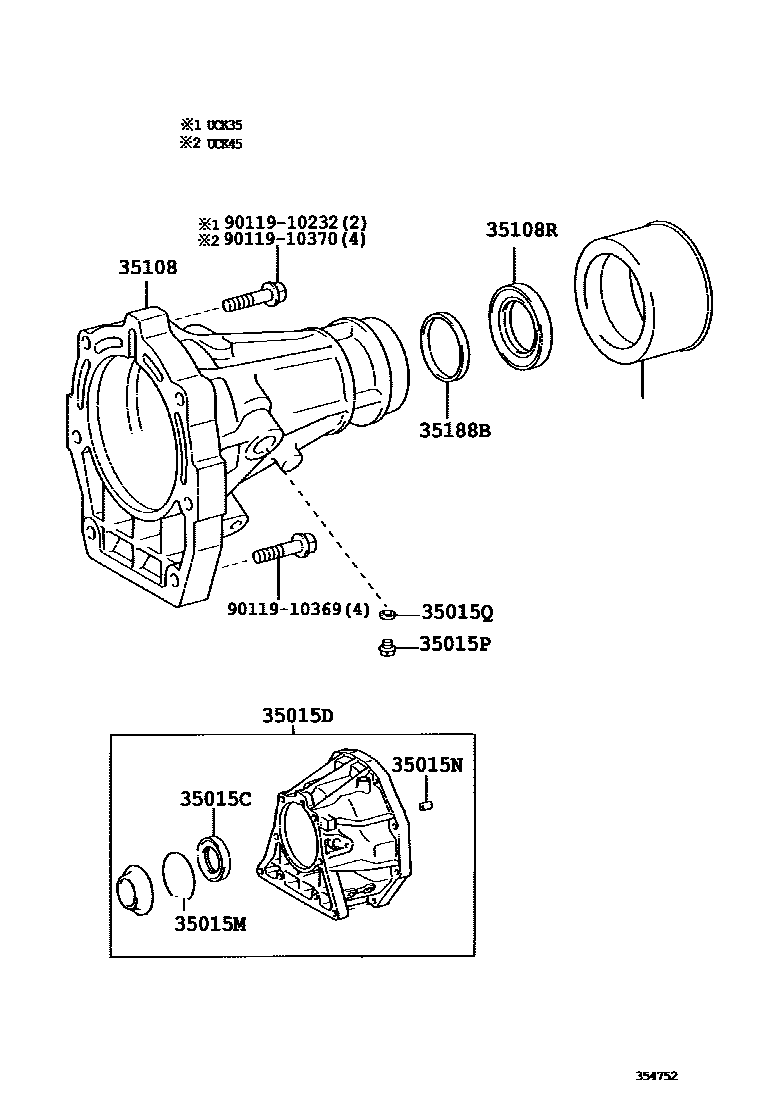

EXTENSION HOUSING (ATM)

0001 1A750E,A750F 0002 1A340E

35015CSEAL, OIL(FOR TRANSMISSION CASE ADAPTER)

main90311-43007iUCK45200408

35015DADAPTER SUB-ASSY, TRANSMISSION CASE

main35015-0C010iUCK45200408

35015MRING, HOLE SNAP(FOR TRANSMISSION CASE ADAPTER)

main90521-72001iUCK45200408

35015NPIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90250-11003×2iUCK45200408

35015PPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUCK35,45200408

35015QRING, O(FOR TRANSMISSION CASE ADAPTER PLUG)

main90301-15004iUCK35,45200408

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-35050iUCK35200009-200408

main35180-0C010iUCK35200408

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iUCK35200009-200408

35188BRETAINER, EXTENSION HOUSING BUSH

main35188-35010iUCK35200408

9011910232

main90119-10232

9011910369

main90119-10369

9011910370

main90119-10370

12 parts on this diagram · 2 diagrams in section
