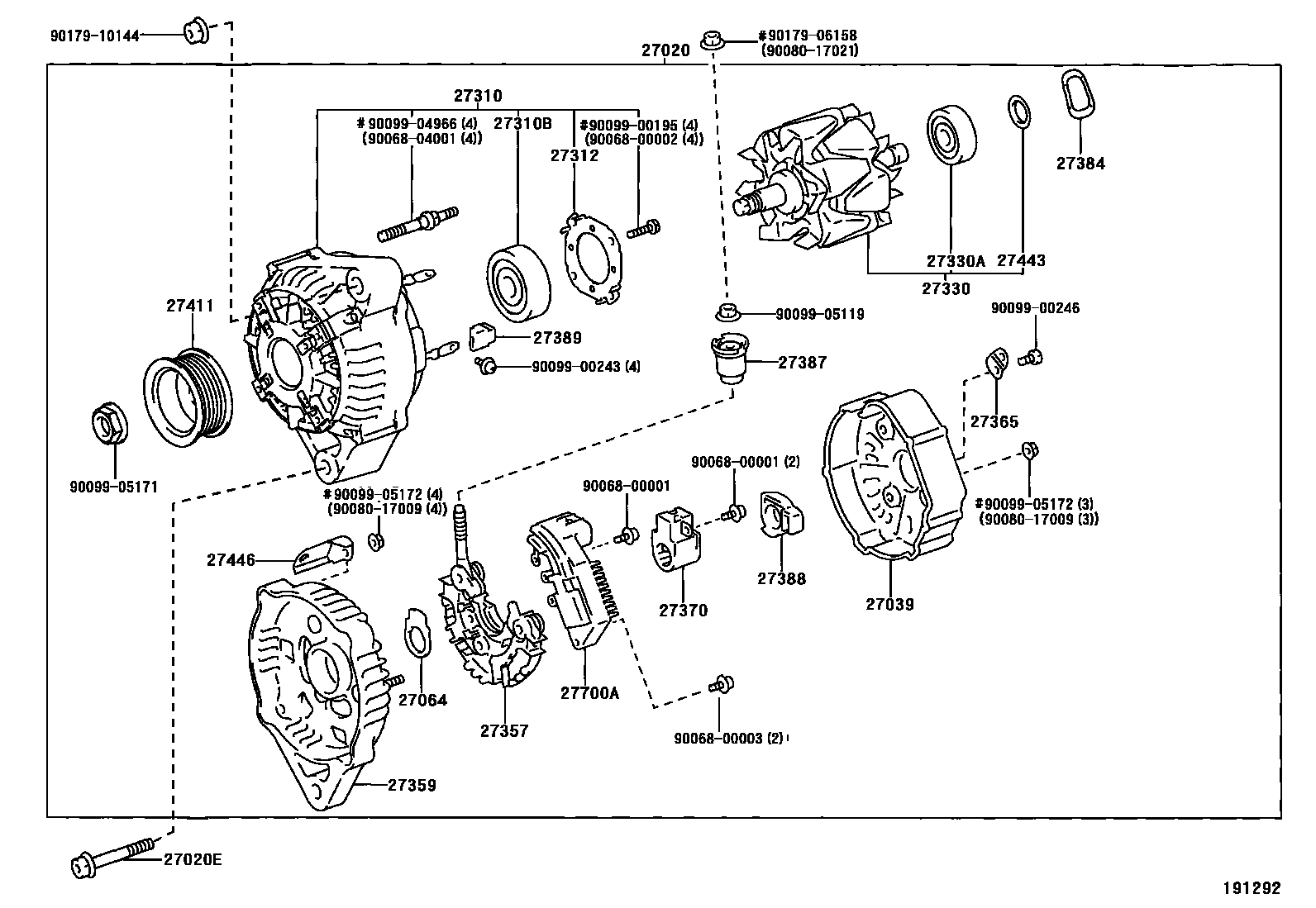

ALTERNATOR

0001 112V 100A 0002 112V 130A,12V 150A

27020ALTERNATOR ASSY

main27060-0F020i2UZFE..UCK35,45..4HC200009-200209

12V 100A

main27060-0F040i2UZFE..UCK35,45200209-200408

12V 130A

main27060-0F050i2UZFE..UCK35,45200209-200408

12V 150A

27020EBOLT(FOR ALTERNATOR)

main90119-10791i2UZFE..UCK35,45200009-200408

27039COVER, ALTERNATOR REAR END

main27039-0F020i2UZFE..UCK35,45..4HC200009-200209

main27039-0F060i2UZFE..UCK35,45200307-200408

main27039-50370i2UZFE..UCK35,45..4HC200209-200307

12V 130A

main27039-58460i2UZFE..UCK35,45..4HC200209-200307

12V 150A

sub27039-50370

27064SEAL, ALTERNATOR PLATE

main27064-0A020i2UZFE..UCK35,45..4HC200009-200209

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0F020i2UZFE..UCK35,45..4HC200009-200209

main27310-0F060i2UZFE..UCK35,45200307-200408

main27310-50310i2UZFE..UCK35,45..4HC200209-200307

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i2UZFE..UCK35,45200705-200711

main90068-10140i2UZFE..UCK35,45200408-200603

12V 130A

main90068-10142i2UZFE..UCK35,45200408-200705

12V 150A

main90068-10142i2UZFE..UCK35,45200307-200408

main90068-10142i2UZFE..UCK35,45200603-200705

12V 130A

main90099-10142i2UZFE..UCK35,45..4HC200209-200307

sub90099-10223

main90099-10192i2UZFE..UCK35,45..4HC200009-200209

27312PLATE, RETAINER

main27312-42010i2UZFE..UCK35,45..4HC200009-200209

main27312-72100i2UZFE..UCK35,45200209-200408

27330ROTOR ASSY, ALTERNATOR

main27330-0A100i2UZFE..UCK35,45200307-200408

12V 130A

sub27330-33090

main27330-0A110i2UZFE..UCK35,45200307-200408

12V 150A

main27330-50070i2UZFE..UCK35,45..4HC200009-200209

sub27330-20070

main27330-50370i2UZFE..UCK35,45..4HC200209-200307

12V 130A

main27330-58460i2UZFE..UCK35,45..4HC200209-200307

12V 150A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10140i2UZFE..UCK35,45200502-200711

12V 130A

main90068-10222i2UZFE..UCK35,45200307-200509

12V 150A

main90099-10140i2UZFE..UCK35,45200209-200502

12V 130A

main90099-10194i2UZFE..UCK35,45..4HC200009-200209

main90099-10222i2UZFE..UCK35,45..4HC200209-200307

12V 150A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0A030i2UZFE..UCK35,45..4HC200009-200209

sub27357-20060

27359FRAME, ALTERNATOR RECTIFIER END

main27359-0F020i2UZFE..UCK35,45..4HC200009-200209

27365PLATE, TERMINAL

main27365-55080i2UZFE..UCK35,45..4HC200009-200209

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0F060i2UZFE..UCK35,45200307-200408

main27370-50370i2UZFE..UCK35,45..4HC200209-200307

12V 130A

main27370-58460i2UZFE..UCK35,45..4HC200209-200307

12V 150A

main27370-75060i2UZFE..UCK35,45..4HC200009-200209

27384WASHER

main27384-0A020i2UZFE..UCK35,45200009-200408

main27384-50030i2UZFE..UCK35,45..4HC200209-200307

27387INSULATOR, TERMINAL

main27387-20130i2UZFE..UCK35,45200209-200408

main27387-42021i2UZFE..UCK35,45..4HC200009-200209

27388COVER, ALTERNATOR BRUSH

main27388-46220i2UZFE..UCK35,45..4HC200009-200209

27389INSULATOR, TERMINAL

main27389-0A020i2UZFE..UCK35,45..4HC200009-200209

sub27389-42010

27411PULLEY, ALTERNATOR

main27411-0A050i2UZFE..UCK35,45200307-200408

(L)

main27411-0A050i2UZFE..UCK35,45..4HC200009-200209

main27411-46080i2UZFE..UCK35,45200307-200408

(J)

main27411-46080i2UZFE..UCK35,45..4HC200209-200307

27443COVER, ALTERNATOR BEARING

main27443-0A020i2UZFE..UCK35,45..4HC200009-200408

main27443-63020i2UZFE..UCK35,45..4HC200209-200307

27446CLIP, ALTERNATOR CORD

main27446-46130i2UZFE..UCK35,45..4HC200009-200209

27700AREGULATOR ASSY, GENERATOR

main27700-50030i2UZFE..UCK35,45..4HC200009-200209

9006800001

main90068-00001

9006800002

main90068-00002

9006800003

main90068-00003

9006804001

main90068-04001

9008017009

main90080-17009

9008017021

main90080-17021

9009900195

main90099-00195

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9017910144

main90179-10144

36 parts on this diagram · 2 diagrams in section
