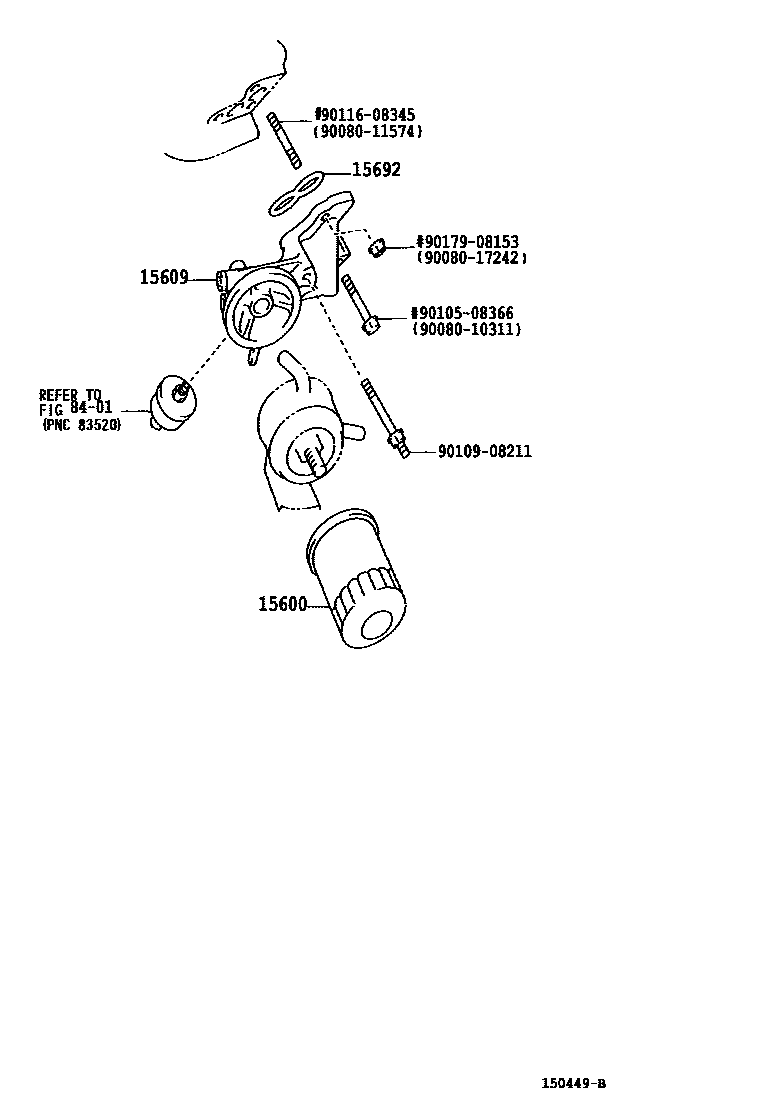

OIL FILTER

15600FILTER ASSY, OIL

main90915-20004i2UZFE..UCK35,45200009-200408

15609BRACKET SUB-ASSY, OIL FILTER

main15609-50110i2UZFE..UCK35,45200009-200408

15692GASKET, OIL FILTER BRACKET

main15692-50020i2UZFE..UCK35,45200009-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010311

main90080-10311

9008011574

main90080-11574

9008017242

main90080-17242

9010508366

main90105-08366

9010908211

main90109-08211

9011608345

main90116-08345

9017908153

main90179-08153

11 parts on this diagram · 1 diagram in section
