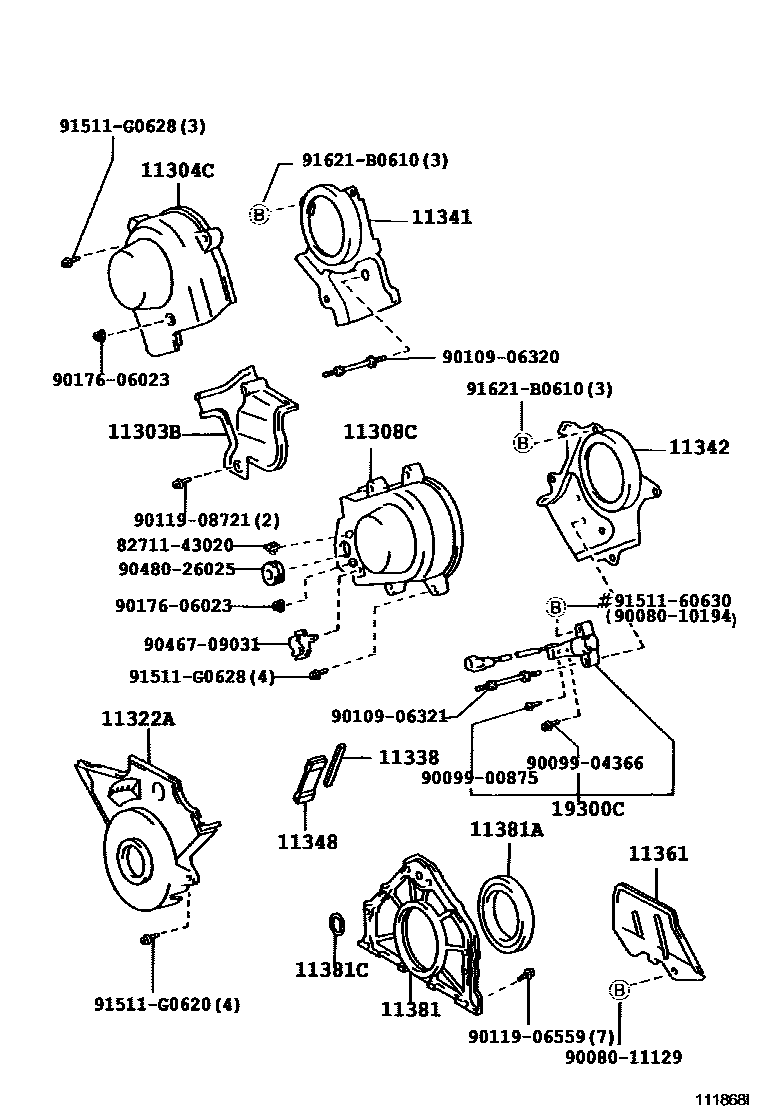

TIMING GEAR COVER & REAR END PLATE
11303BCOVER SUB-ASSY, TIMING BELT, NO.2
(L)
11304CCOVER SUB-ASSY, TIMING BELT, NO.3 RH
(L)
11308CCOVER SUB-ASSY, TIMING BELT, NO.3 LH
(L)
11322ACOVER, TIMING BELT, NO.1
(J)
(L)
11338GASKET, TIMING CHAIN COVER, NO.2
(J)
(L)
11341PLATE, TIMING BELT, REAR RH
11342PLATE, TIMING BELT, REAR LH
11348SPACER, TIMING GEAR COVER
(J)
(L)
11361COVER, FLYWHEEL HOUSING UNDER
11381RETAINER, ENGINE REAR OIL SEAL
(L)
(L)
11381ASEAL, ENGINE REAR OIL
(J)
(L)
11381CRING, O(FOR OIL SEAL RETAINER)
19300CSENSOR ASSY, CAM POSITION
8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-43020
9008010194
main90080-10194
9008011129
main90080-11129
9009900875
main90099-00875
9009904366
main90099-04366
9010906320
main90109-06320
9010906321
main90109-06321
9011906559
main90119-06559
9011908721
main90119-08721
9017606023
main90176-06023
9046709031
main90467-09031
9048026025
main90480-26025
9151160630
main91511-60630
91511G0620
main91511-G0620
91511G0628
main91511-G0628
91621B0610
main91621-B0610
29 parts on this diagram · 2 diagrams in section
