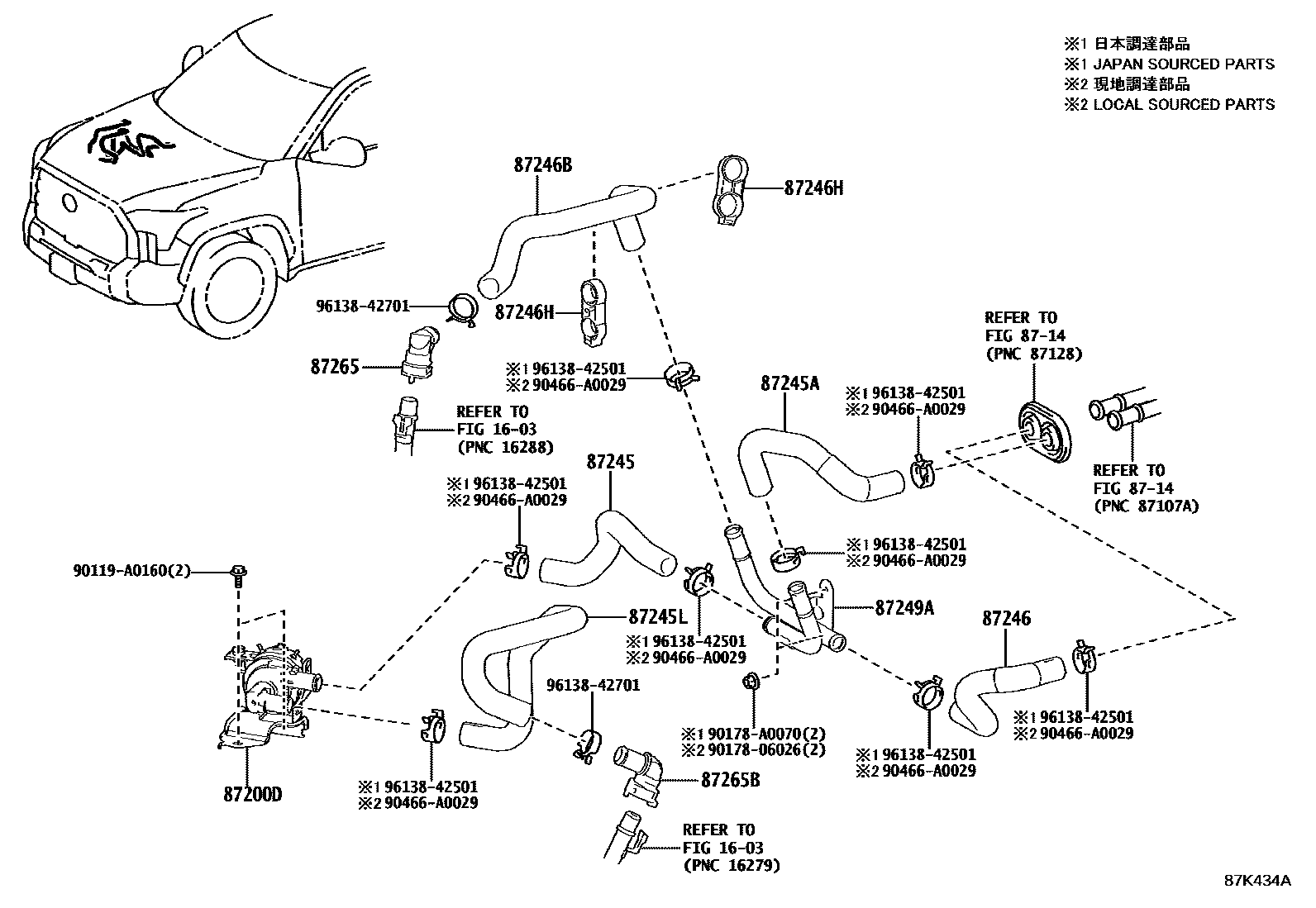

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 1/3 0005 1REAR 2/3 0006 1REAR 3/3

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200DACCESSORY ASSY, HEATER

main87200-0C010iVXKA71..Z;VXKA70,75..DCB..L202111-202408

main87200-0C020iVXKH71,80..Z202203-202408

87245HOSE, HEATER WATER, INLET

main87246-0C010iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202111

main87246-0C030iVXKH71,80..Z202203-202408

87245AHOSE, HEATER WATER, INLET A

main87243-0C010iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202111

main87243-0C030iVXKH71,80..L,S;VXKH70,75,76,85202203

87245LHOSE, HEATER WATER, L

main87245-0C530iVXKA71..Z;VXKA70,75..DCB..L202111-202408

main87245-0C540iVXKH71..L;VXKH70,75,76202203

main87245-0C560iVXKH85;VXKH80..L,S202207

87246HOSE, HEATER WATER, OUTLET

main87243-0C020iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202111

main87243-0C040iVXKH71,80..Z202203-202408

87246BHOSE, HEATER WATER, OUTLET B

main87245-0C520iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202111

main87245-0C550iVXKH71..Z202203-202408

main87245-0C570iVXKH85;VXKH80..L,S202207

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main88718-6B070×2iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202111

87249APIPE, HEATER WATER OUTLET, A

main87248-0C140iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202111

main87248-0C150iVXKH71..Z202203-202408

main87248-0C160iVXKH85;VXKH80..L,S202207

87265CONNECTOR, HEATER WATER HOSE

main87265-50010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87265-60320iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

90119A0160

main90119-A0160

9017806026

main90178-06026

90178A0070

main90178-A0070

90466A0029

main90466-A0029

9613842501

main96138-42501

9613842701

main96138-42701

18 parts on this diagram · 6 diagrams in section
