HEV INVERTER

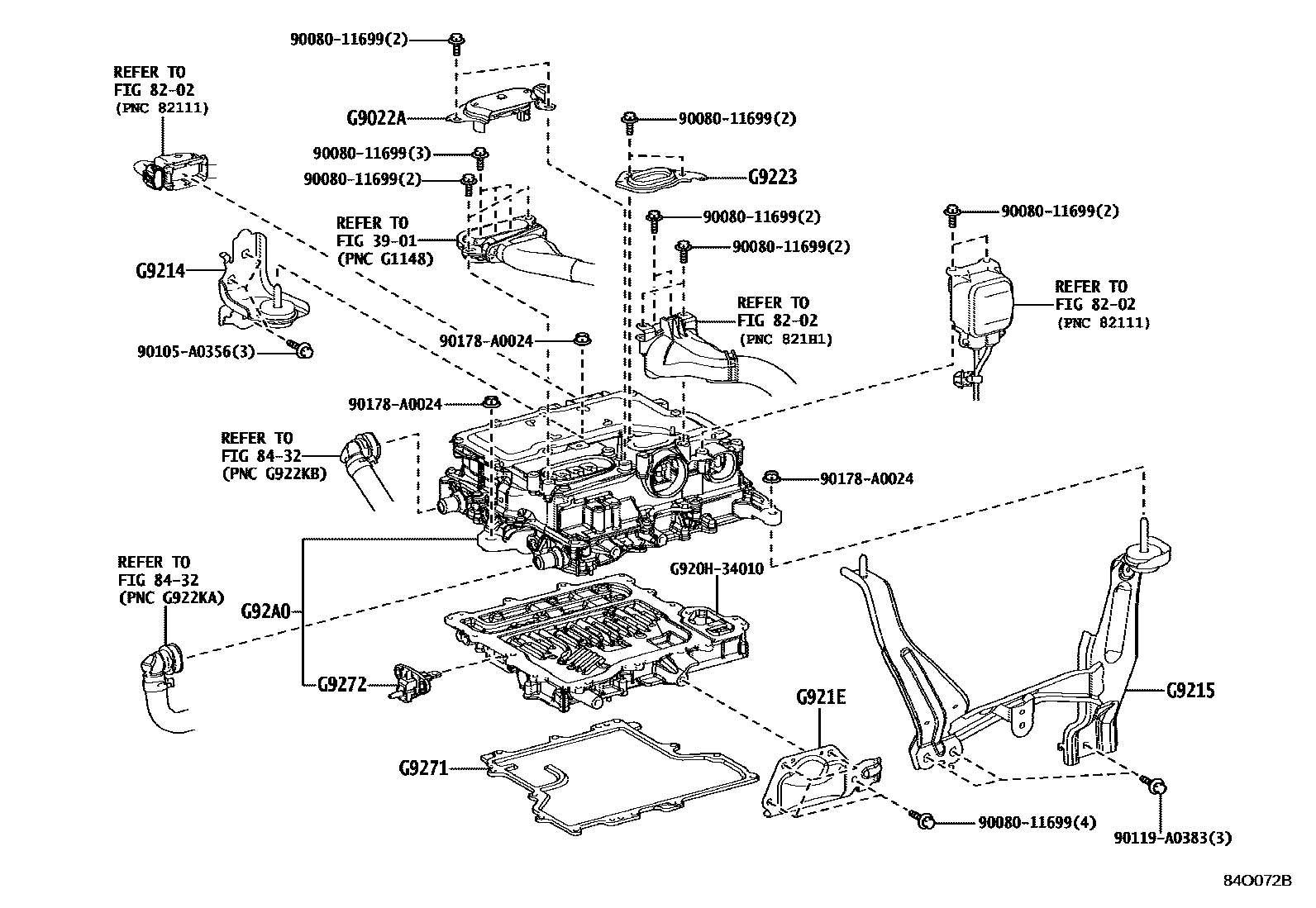

Parts diagram

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8432INVERTER COOLING

→ Go to FIG 84-32

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902234010i202203-202408

G9214BRACKET, INVERTER, NO.1

mainG92140C010i202203-202408

G9215BRACKET, INVERTER, NO.2

mainG92150C010i202203-202408

G921EPROTECTOR, INVERTER

mainG921E0C010i202203-202408

G9223COVER, INVERTER TERMINAL

mainG922334010i202203-202408

G9271COVER, CONVERTER

mainG927134010i202203-202408

G9272CONVERTER, HV

mainG927034010i202203-202408

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A034020i202203-202408

9008011699

main90080-11699

90105A0356

main90105-A0356

90119A0383

main90119-A0383

90178A0024

main90178-A0024

G920H34010COMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H-34010

16 parts on this diagram · 1 diagram in section
