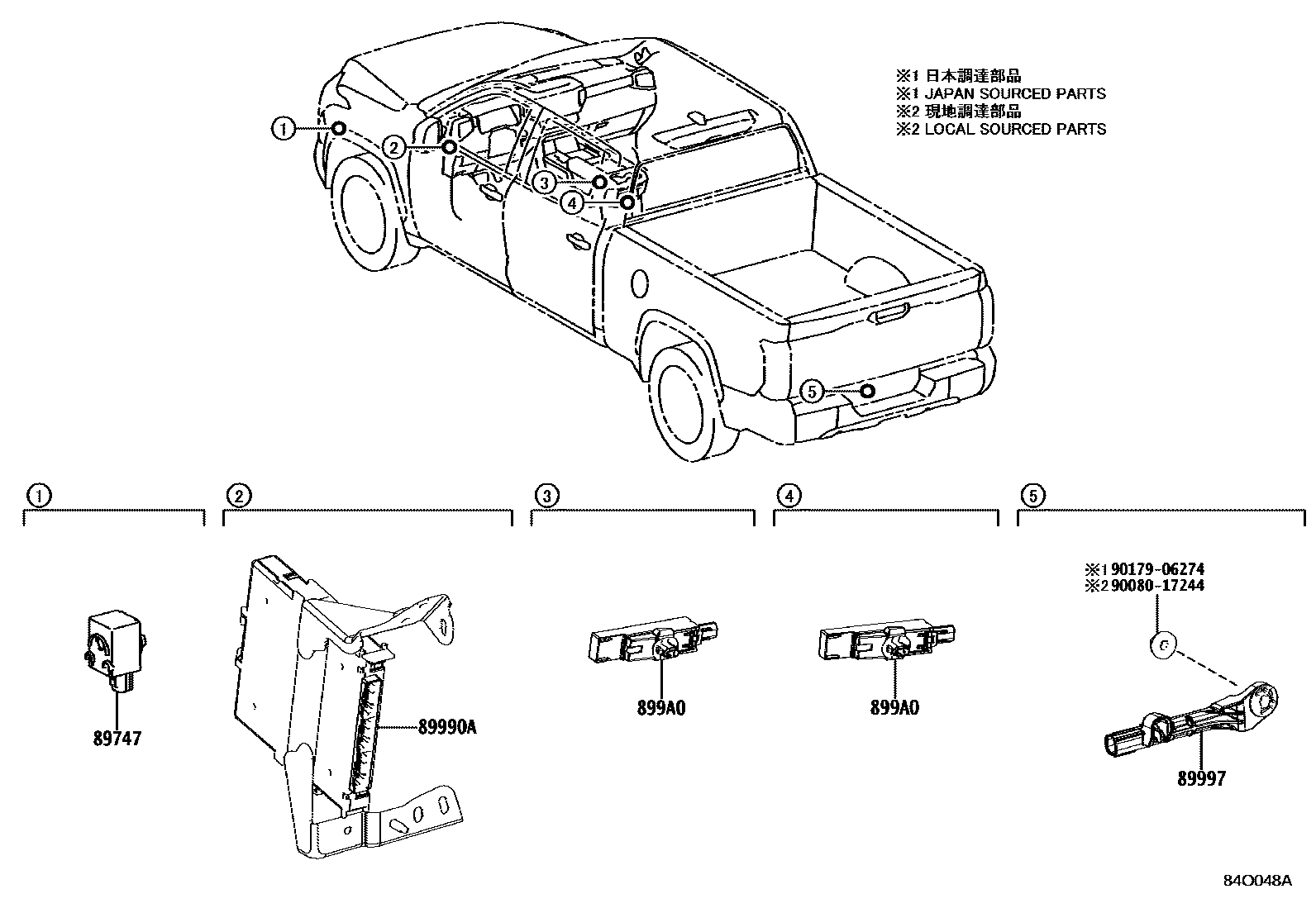

WIRELESS DOOR LOCK

0001 1 0002 1

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iVXKA71..Z;VXKA70,75..DCB..L202111-202408

89990ACOMPUTER ASSY, SMART KEY

main899H0-0C010iVXKA70,72,75,77..DCB202111-202408

main899H0-0C020iVXKH7#202203-202408

main899H0-0C030iVXKH8#202207-202408

main899H0-0C040iVXKA71..Z202111-202408

main899H0-AN010iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202409-202411

main899H0-AN011iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX202412

main899H0-AN020iVXKH71..L;VXKH70,75,76202409-202411

main899H0-AN021iVXKH71..L;VXKH70,75,76202412

main899H0-AN030iVXKH85;VXKH80..L,S202409-202411

main899H0-AN031iVXKH85;VXKH80..L,S202412

89997ANTENNA, ELECTRICAL KEY

main89997-0E050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-08030×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

9008017244

main90080-17244

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
