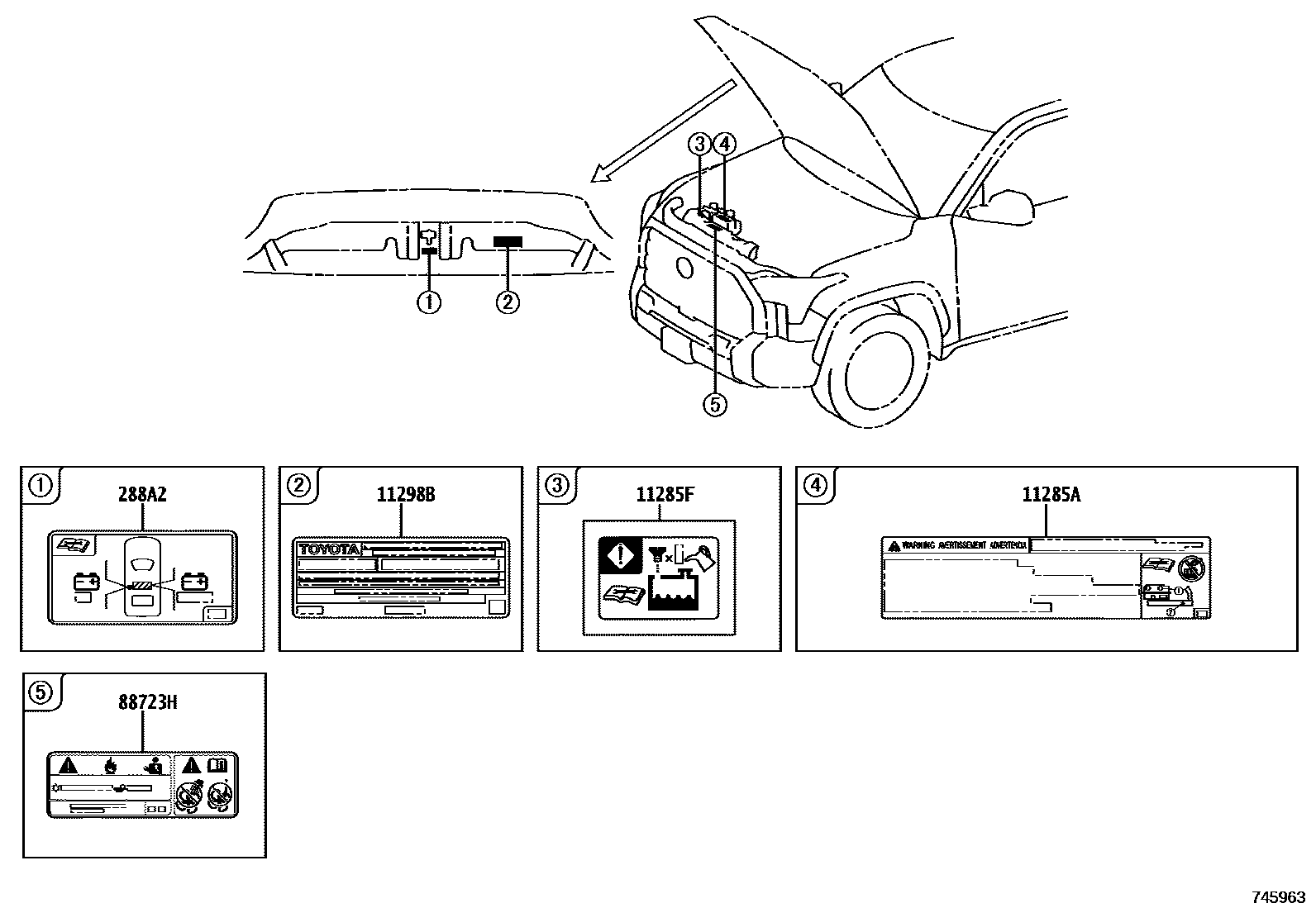

CAUTION PLATE

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1INTERIOR 0004 1EXTERIOR 0005 1EXTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

11285FLABEL, COOLANT SYSTEM CAUTION

main11285-F4020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-F4020iV35AFTS..VXKH8#202207-202308

main11298-F4021iV35AFTS..VXKH80..Z202308-202408

main11298-F4022iV35AFTS..VXKH85;V35AFTS..VXKH80..L,S202409-202508

main11298-F4030supersedes 11298-F4010iV35AFTS..VXKA70,75; V35AFTS..VXKA71,72,76,77202111-202209

FUEL TANK-122L & LEV3

main11298-F4031supersedes 11298-F4011iV35AFTS..VXKA70,75; V35AFTS..VXKA71,72,76,77202209-202308

FUEL TANK-122L & LEV3

main11298-F4032supersedes 11298-F4012iV35AFTS..VXKA70,75..S; V35AFTS..VXKA76;V35AFTS..VXKA71,72,77..L,S;V35AFTS..VXKA70,75..CMAX..(L,Z)202308-202409

FUEL TANK-122L & LEV3

main11298-F4033supersedes 11298-F4013iV35AFTS..VXKA70,75..S; V35AFTS..VXKA76;V35AFTS..VXKA71,72,77..L,S;V35AFTS..VXKA70,75..CMAX..(L,Z)202409-202508

FUEL TANK-122L & LEV3

main11298-F4041iV35AFTS..VXKH7#202203-202308

main11298-F4042iV35AFTS..VXKH71..Z202308-202408

main11298-F4043iV35AFTS..VXKH71..L;V35AFTS..VXKH70,75,76202409-202508

main11298-F4010iV35AFTS..VXKA70,75; V35AFTS..VXKA72,77202111-202209

FUEL TANK-85L & LEV3

main11298-F4011iV35AFTS..VXKA70,75; V35AFTS..VXKA72,77202209-202308

FUEL TANK-85L & LEV3

main11298-F4012iV35AFTS..VXKA70,75..S; V35AFTS..VXKA72,77202308-202409

FUEL TANK-85L & LEV3

main11298-F4013iV35AFTS..VXKA70,75..S; V35AFTS..VXKA72,77202409-202508

FUEL TANK-85L & LEV3

288A2LABEL, BATTERY LOCATION

main288A2-F4011iV35AFTS..VXKH71..Z202203-202408

main288A2-F4021iV35AFTS..VXKH80..Z202207-202408

88723HLABEL, COOLER SERVICE CAUTION

main88723-0C110iVXKA71..Z;VXKA70,75..DCB..L202111-202408

main88723-0C120iVXKH71..L;VXKH70,75,76202203

main88723-0C130iVXKH85;VXKH80..L,S202207

5 parts on this diagram · 5 diagrams in section
