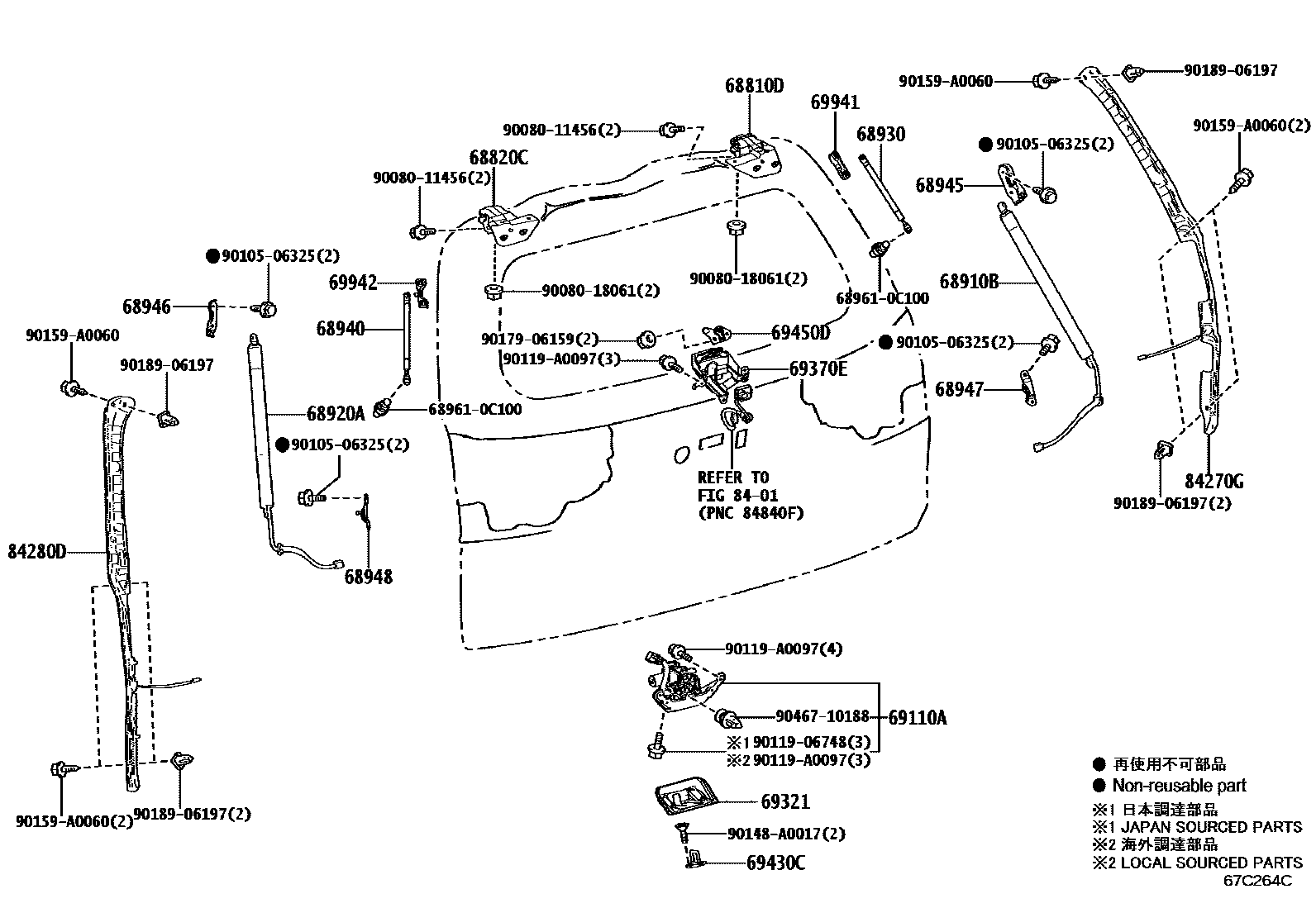

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
PAD T=1.5
PAD T=1.0
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.5
PAD T=1.0
PAD T=2.0
68910BUNIT ASSY, POWER BACK DOOR, RH
SR5-PREMIUM
68920AUNIT ASSY, POWER BACK DOOR, LH
SR5-PREMIUM
68930STAY ASSY, BACK WINDOW, RH
68940STAY ASSY, BACK WINDOW, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69110ALOCK ASSY, BACK DOOR W/MOTOR
69321COVER, BACK DOOR LOCK
69370ELOCK ASSY, BACK WINDOW
69430CSTRIKER ASSY, BACK DOOR LOCK
69450DSTRIKER ASSY, BACK WINDOW LOCK
69941BRACKT, BACK DOOR GLASS GUIDE, UPPER RH
69942BRACKT, BACK DOOR GLASS GUIDE, UPPER LH
8401SWITCH & RELAY & COMPUTER
84270GSENSOR ASSY, POWER BACK DOOR, RH
84280DSENSOR ASSY, POWER BACK DOOR, LH
689610C100BOLT, BACK DOOR STAY
main68961-0C100
9008011456
main90080-11456
9008018061
main90080-18061
9010506325
main90105-06325
9011906748
main90119-06748
90119A0097
main90119-A0097
90148A0017
main90148-A0017
90159A0060
main90159-A0060
9017906159
main90179-06159
9018906197
main90189-06197
9046710188
main90467-10188
31 parts on this diagram · 2 diagrams in section
