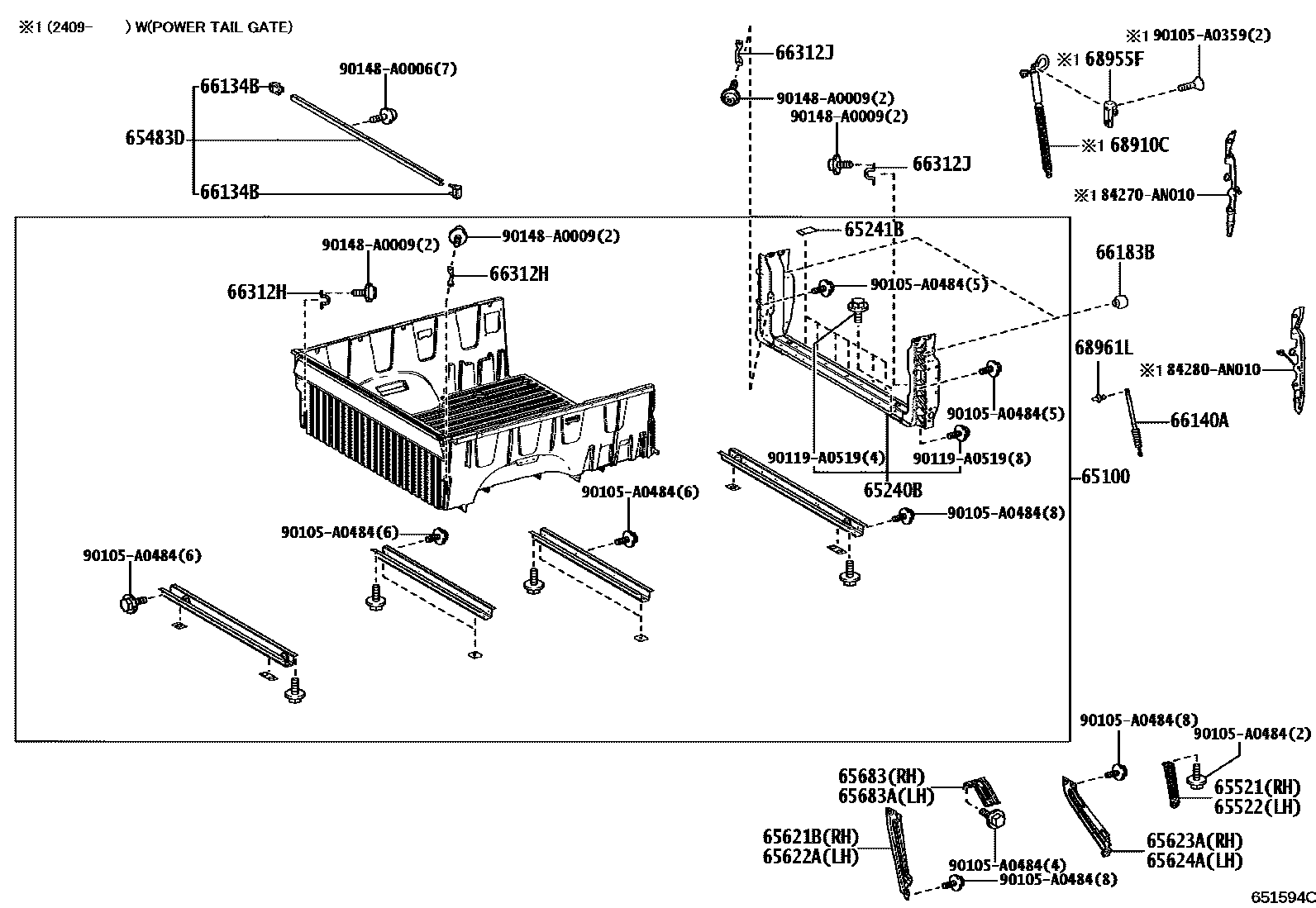

REAR BODY FLOOR & FENDER
65100FLOOR ASSY, REAR BODY
main65100-0C190supersedes 65100-0C130iVXKA70,75,VXKH70,75..CMAX..(L,S); VXKA70,75,VXKH70,75..U,Z202111-202409
POWER SUPPLY-DECK & CABIN AC120V(400W)
main65100-0C200supersedes 65100-0C140iVXKA70,75..DCB..S;VXKA71,76,VXKH71,76..L,S; VXKA76,VXKH76..Z202111-202409
POWER SUPPLY-DECK & CABIN AC120V(400W)
POWER SUPPLY-DECK & CABIN AC120V(400W)
main65100-0C220supersedes 65100-0C190iVXKA70,75,VXKH70,75..CMAX..(L,S); VXKA70,75,VXKH70,75..U,Z202111-202409
REAR DECK-WITH:W/O(PAINT); REAR DECK-WITH:W/O(PAINT)&POWER SUPPLY-DECK & CABIN AC120V(400W)
REAR DECK-WITH:W/O(PAINT)
REAR DECK-WITH:W/O(PAINT)
REAR DECK-WITH:W/O(PAINT); REAR DECK-WITH:W/O(PAINT)&POWER SUPPLY-DECK & CABIN AC120V(400W)
REAR DECK-WITH:W/O(PAINT)
REAR DECK-WITH:W/O(PAINT)&POWER SUPPLY-DECK & CABIN AC120V(400W)
main65100-AN080supersedes 65100-AN050iVXKA70,75,VXKH70,75..CMAX..(L,S); VXKA70,75,VXKH70,75..U,Z202409
POWER SUPPLY-DECK & CABIN AC120V(400W)
main65100-AN090supersedes 65100-AN060iVXKA70,75..DCB..S;VXKA71,76,VXKH71,76..L,S; VXKA76,VXKH76..Z202409
POWER SUPPLY-DECK & CABIN AC120V(400W)
main65100-AN100supersedes 65100-AN050iVXKA70,75,VXKH70,75..CMAX..(L,S); VXKA70,75,VXKH70,75..U,Z202409
REAR DECK-WITH:W/O(PAINT); REAR DECK-WITH:W/O(PAINT)&POWER SUPPLY-DECK & CABIN AC120V(400W)
REAR DECK-WITH:W/O(PAINT)
REAR DECK-WITH:W/O(PAINT)
main65100-AN130supersedes 65100-AN090iVXKA70,75..DCB..S;VXKA71,76,VXKH71,76..L,S; VXKA76,VXKH76..Z202409
REAR DECK-WITH:W/O(PAINT); REAR DECK-WITH:W/O(PAINT)&POWER SUPPLY-DECK & CABIN AC120V(400W)
POWER SUPPLY-DECK & CABIN AC120V(400W)
65240BSILL ASSY, CROSS, NO.9
65241BSHEET, REAR CROSS SILL SILENCER
65483DRAIL, HEADER BOARD, UPPER
65521PILLAR, SIDE BOARD SET, NO.1 RH
65522PILLAR, SIDE BOARD SET, NO.1 LH
65621BSKIRT, SIDE PANEL, FRONT RH
65622ASKIRT, SIDE PANEL, FRONT LH
65623ASKIRT, SIDE PANEL, REAR RH
65624ASKIRT, SIDE PANEL, REAR LH
65683REINFORCEMENT, SIDE PANEL BRACE, REAR RH
65683AREINFORCEMENT, SIDE PANEL BRACE, REAR LH
66134BCAP, SIDE GATE SUPPORT
66140ASUPPORT ASSY, TAIL GATE, LH
AUTO & EASY CLOSER DOOR-POWER TAILGATE
66183BSTOPPER, TAIL GATE
66312HHOOK, ROPE
66312JHOOK, ROPE, NO.2
68910CUNIT ASSY, POWER TAIL GATE, RH
AUTO & EASY CLOSER DOOR-POWER TAILGATE
68955FBRACKET, TAIL GATE STAY, UPPER RH
AUTO & EASY CLOSER DOOR-POWER TAILGATE
68961LJOINT, TAIL GATE STAY
84270AN010SWITCH ASSY, DASH LAMP
main84270-AN010
84280AN010SWITCH ASSY, ESC CHECK
main84280-AN010
90105A0359
main90105-A0359
90105A0484
main90105-A0484
90119A0519
main90119-A0519
90148A0006
main90148-A0006
90148A0009
main90148-A0009
27 parts on this diagram · 3 diagrams in section
