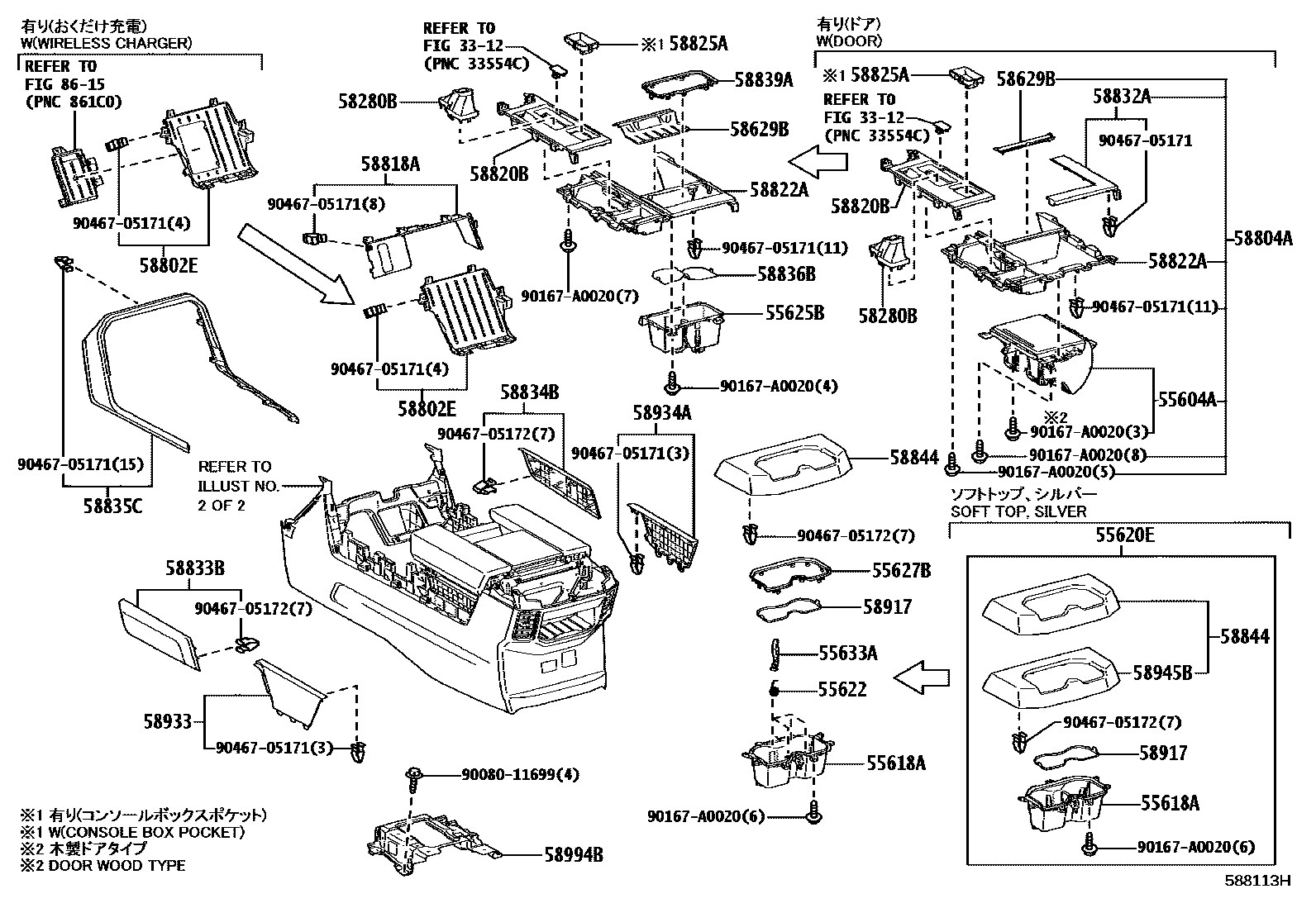

CONSOLE BOX & BRACKET
3312
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
BLACK/SILVER,TRIM1#,2#
BLACK/SMOKE SILVER METALL,TRIM1#,2#
BLACK/DK BROWN,TRIM2#
BLACK,TRIM2#
BLACK/BLUISH GRAY,TRIM2#
ULTRA SUV,BLACK.ORANGE BROWN,TRIM4#
TRD PRO PACKAGE&COLD AREA SPEC&STEERING WHEEL-TRD, WITH(HEATER),DK.GRAY,TRIM2#,3#
TRD PRO PACKAGE&COLD AREA SPEC&STEERING WHEEL-TRD, WITH(HEATER),BLACK/DK.GRAY,TRIM2#,3#
55618AHOLDER, CONSOLE BOX CUP
BLACK,TRIM2#
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
BLACK/WHITE,TRIM25
BLACK/BLACK,TRIM2#
BLACK/KURO KOHAKU,TRIM4#
55622SPRING, INSTR PANEL CUP HOLDER, NO.1
55625BTRAY, INSTRUMENT PANEL CUP HOLDER
BLACK,TRIM1#,2#
55627BRAIL, CONSOLE BOX CUP HOLDER
main55627-0C030iVXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#,8#..L,S202111-202508
HERITAGE PACKAGE
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
BLACK,TRIM1#,2#
58280BBOOT ASSY, SHIFT LEVER
BLACK,TRIM1#,2#
58629BMAT, CENTER CONSOLE
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58802EBOX SUB-ASSY, CONSOLE, FRONT
main58802-0C020-C1iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202111
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
SPECIAL EDITION&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(HEATER),TRIM4#
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM1#,2#
58820BPANEL ASSY, CONSOLE, UPPER
SX
SX
SPECIAL EDITION&COLD AREA SPEC&STEERING WHEEL-LEATHER, WITH(HEATER)
TRD PRO PACKAGE&COLD AREA SPEC&STEERING WHEEL-TRD, WITH(HEATER)
58822APANEL, CONSOLE, UPPER REAR
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58825APOCKET, CONSOLE BOX
SR,BLACK,TRIM2#
58832AGARNISH, CONSOLE UPPER PANEL, REAR
SILVER,TRIM1#,2#
SMOKE SILVER METALLIC,TRIM1#,2#
ORANGE BROWN,TRIM25
DK.BROWN,TRIM25
BLUISH GRAY,TRIM2#
BLUISH GRAY,TRIM2#
TRD PRO PACKAGE&COLD AREA SPEC&STEERING WHEEL-TRD, WITH(HEATER),DK.GRAY,TRIM2#,3#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM1#,2#
BLACK/RED,TRIM21,3#
BLACK/BLACK,TRIM1#,21
WHITE/WHITE,TRIM25
BLACK/BLUE,TRIM2#
BLACK/BLACK,TRIM47
BLACK/WHITE,TRIM25
KURO KOHAKU/BEIGE,TRIM4#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM1#,2#
BLACK/RED,TRIM21,3#
BLACK/BLACK,TRIM1#,21
WHITE/WHITE,TRIM25
BLACK/BLUE,TRIM21
BLACK/BLACK,TRIM47
BLACK/WHITE,TRIM25
KURO KOHAKU/BEIGE,TRIM41,44
58835CORNAMENT, CONSOLE BOX
SX
58836BPAD, CONSOLE BOX SILENCER, NO.1
BLACK,TRIM1#,2#
58839ACOVER, CONSOLE BOX HOLE
HERITAGE PACKAGE&COLD AREA SPEC&STEERING WHEEL-TRD, WITH(HEATER)
58844BEZEL, CONSOLE BOX
BLACK,TRIM1#,2#
MD.GRAY,TRIM1#
BLACK,TRIM2#
WHITE,TRIM25
BLACK,TRIM21,25
KURO KOHAKU,TRIM4#
SPECIAL EDITION,TABACCO BROWN,TRIM4#
58917MAT, BOX BOTTOM, NO.2
BLACK,TRIM2#,4#
58933GARNISH, CONSOLE REAR END PANEL
BLACK,TRIM1#,2#
58934AGARNISH, CONSOLE REAR END PANEL, NO.2
BLACK,TRIM2#,4#
58945BGARNISH, CONSOLE, REAR
58994BBRACKET, CONSOLE BOX MOUNTING, NO.4
8615
9008011699
main90080-11699
90167A0020
main90167-A0020
9046705171
main90467-05171
9046705172
main90467-05172
33 parts on this diagram · 3 diagrams in section
