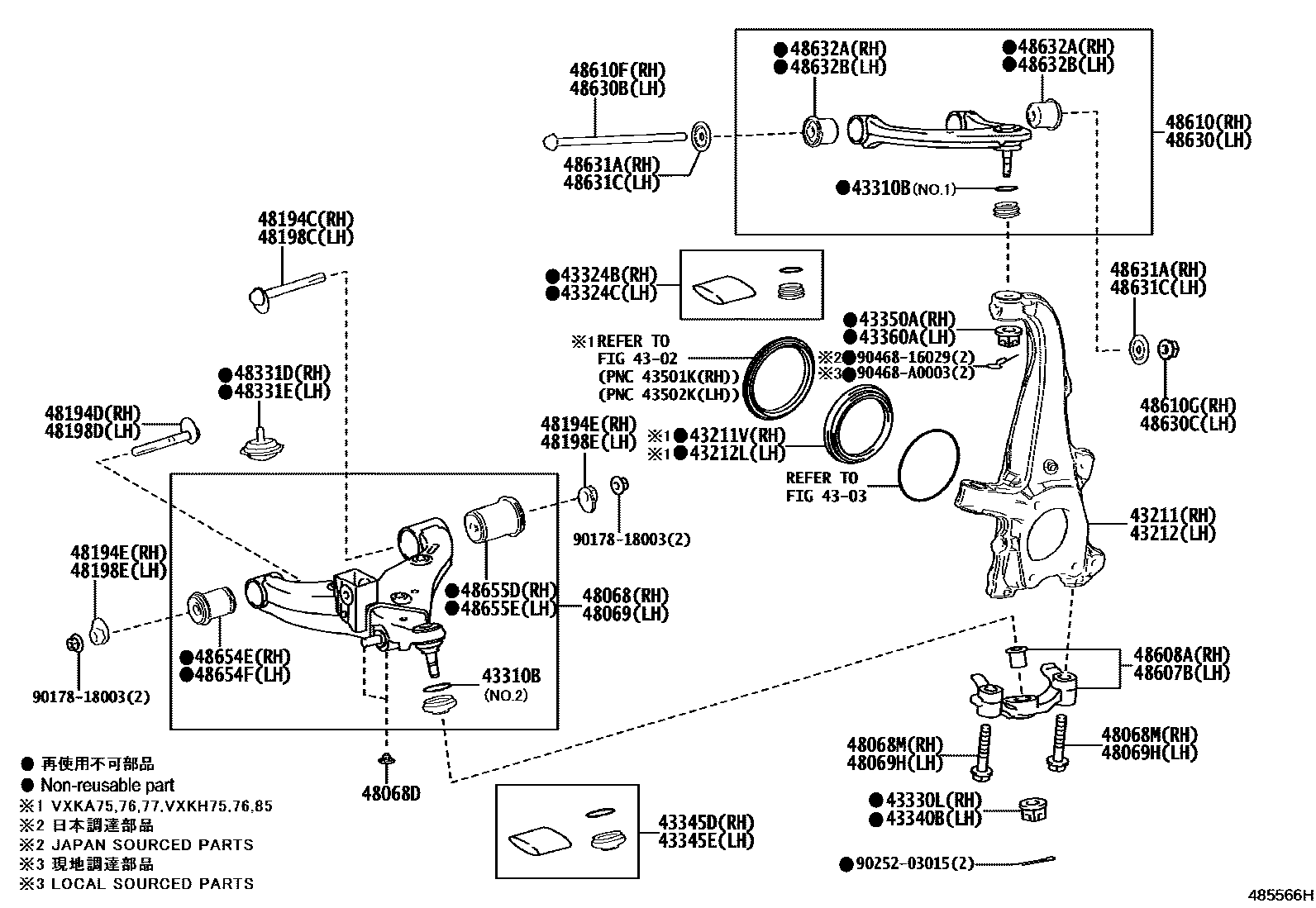

FRONT AXLE ARM & STEERING KNUCKLE

4302

4303

43211KNUCKLE, STEERING, RH

main43201-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

43211VSEAL, OIL (FOR STEERING KNUCKLE RH)

main90316-A0002iVXKA75..DCB..L202111-202408

43212KNUCKLE, STEERING, LH

main43202-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

43212LSEAL, OIL (FOR STEERING KNUCKLE LH)

main90316-A0002iVXKA75..DCB..L202111-202408

43310BRING, SET (FOR DUST COVER)

main90522-48025×10iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

NO.2:REFER ILLUST.

main90580-10001×8iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

NO.1:REFER ILLUST.

43324BCOVER, FRONT UPPER BALL JOINT DUST, RH

main43324-69105iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

43324CCOVER, FRONT UPPER BALL JOINT DUST, LH

main43324-69105iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-A0013iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-A0013iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

43345DCOVER, LOWER BALL JOINT DUST, RH

main43345-09015iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

43345ECOVER, LOWER BALL JOINT DUST, LH

main43345-09015iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-A0012iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-A0012iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0C011×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-01983×4iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202204-202408

(J)

main90950-A1021×4iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202204

(L)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-A0449×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0C011×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-A0449×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-60030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48190-60050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main48198-60030×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-60030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48190-60050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main48198-60030×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

3" LIFT KIT PACKAGE

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48607BPLATE SUB-ASSY, LOWER ARM ATTACHMENT, RH

main48607-0C011iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48608APLATE SUB-ASSY, LOWER ARM ATTACHMENT, LH

main48608-0C011iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0C020×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48610-0C030×2iVXKH75,85..L202308

TRD PRO PACKAGE

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-A0450iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-A0084iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

(L)

main94151-21601iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

(J)

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0C020×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48630-0C030×2iVXKH75,85..L202308

TRD PRO PACKAGE

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-A0450iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-A0084iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

(L)

main94151-21601iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

(J)

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-A2007×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-A2007×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0C020×4iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0C020×4iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0C020×3iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0C020×3iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0C020×3iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0C020×3iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

9017818003

main90178-18003

9025203015

main90252-03015

9046816029

main90468-16029

90468A0003

main90468-A0003

48 parts on this diagram · 1 diagram in section
