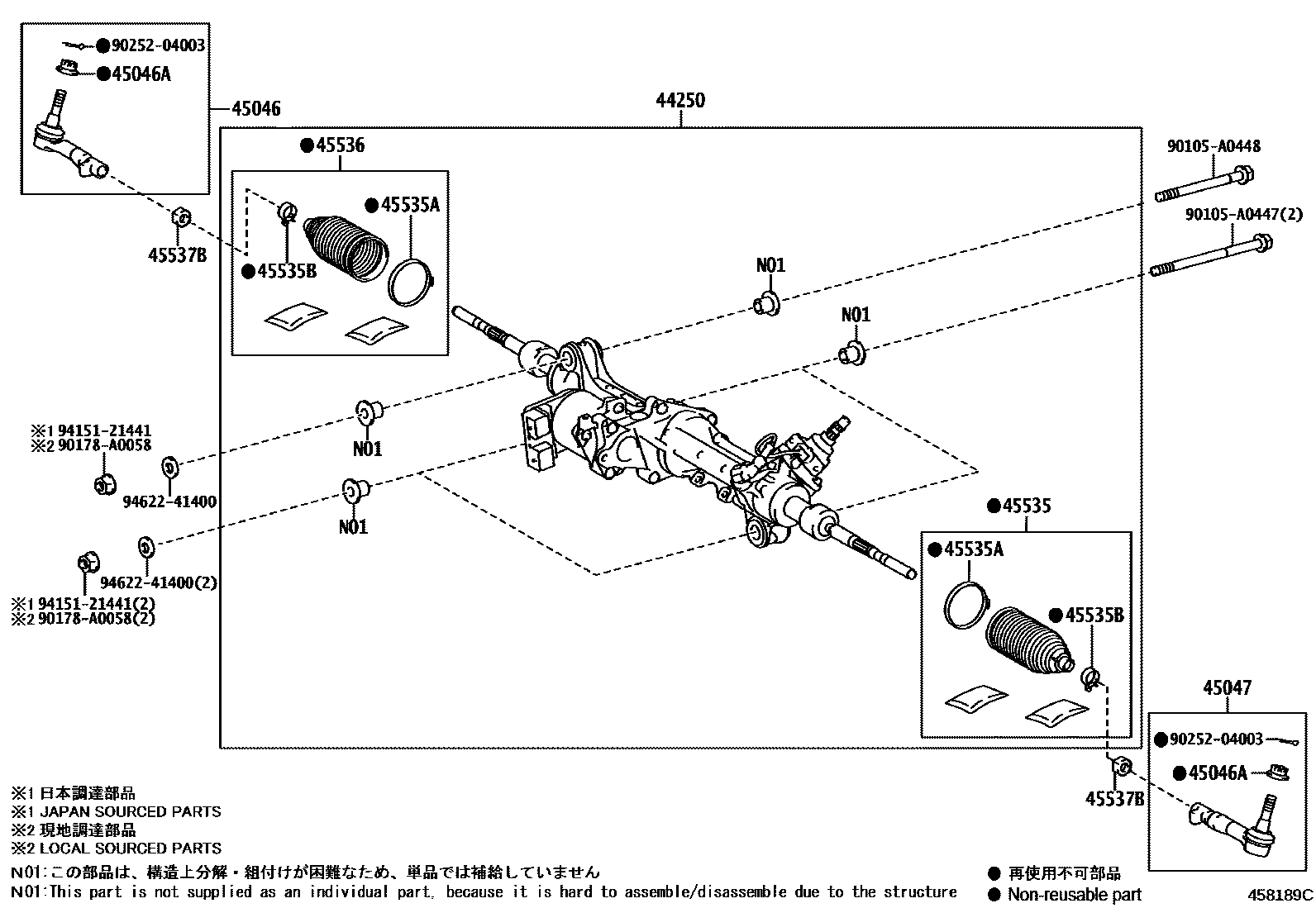

FRONT STEERING GEAR & LINK

0001 1 0002 13" LIFT KIT PACKAGE

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0C180iVXKA7#,VXKH7#,8#202111-202408

*614

main44250-0C200iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF; VXKA75..DCB..S;VXKA75,76,VXKH75,76..CMAX..(L,S,Z)202409

*614; 3" LIFT KIT PACKAGE,*614

main44250-0C190iVXKH75,85..L202203-202408

TRD PRO PACKAGE,*614

main44250-0C210iVXKH75,85..L202409

TRD PRO PACKAGE,*614

45046END SUB-ASSY, TIE ROD, RH

main45046-09891iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main45046-YY010iVXKA75..DCB..L202308-202408

3" LIFT KIT PACKAGE

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16011×2iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

45047END SUB-ASSY, TIE ROD, LH

main45047-09460iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main45047-YY010iVXKA75..DCB..L202308-202408

3" LIFT KIT PACKAGE

45535BOOT, STEERING RACK, NO.1

main45535-09690iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-81008iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

45535BCLIP(FOR STEERING RACK BOOT)

main96134-42300iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

45536BOOT, STEERING RACK, NO.2

main45535-09690iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

45537BNUT, RACK END LOCK

main90170-A0009×2iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

90105A0447

main90105-A0447

90105A0448

main90105-A0448

90178A0058

main90178-A0058

9025204003

main90252-04003

9415121441

main94151-21441

9462241400

main94622-41400

15 parts on this diagram · 2 diagrams in section
