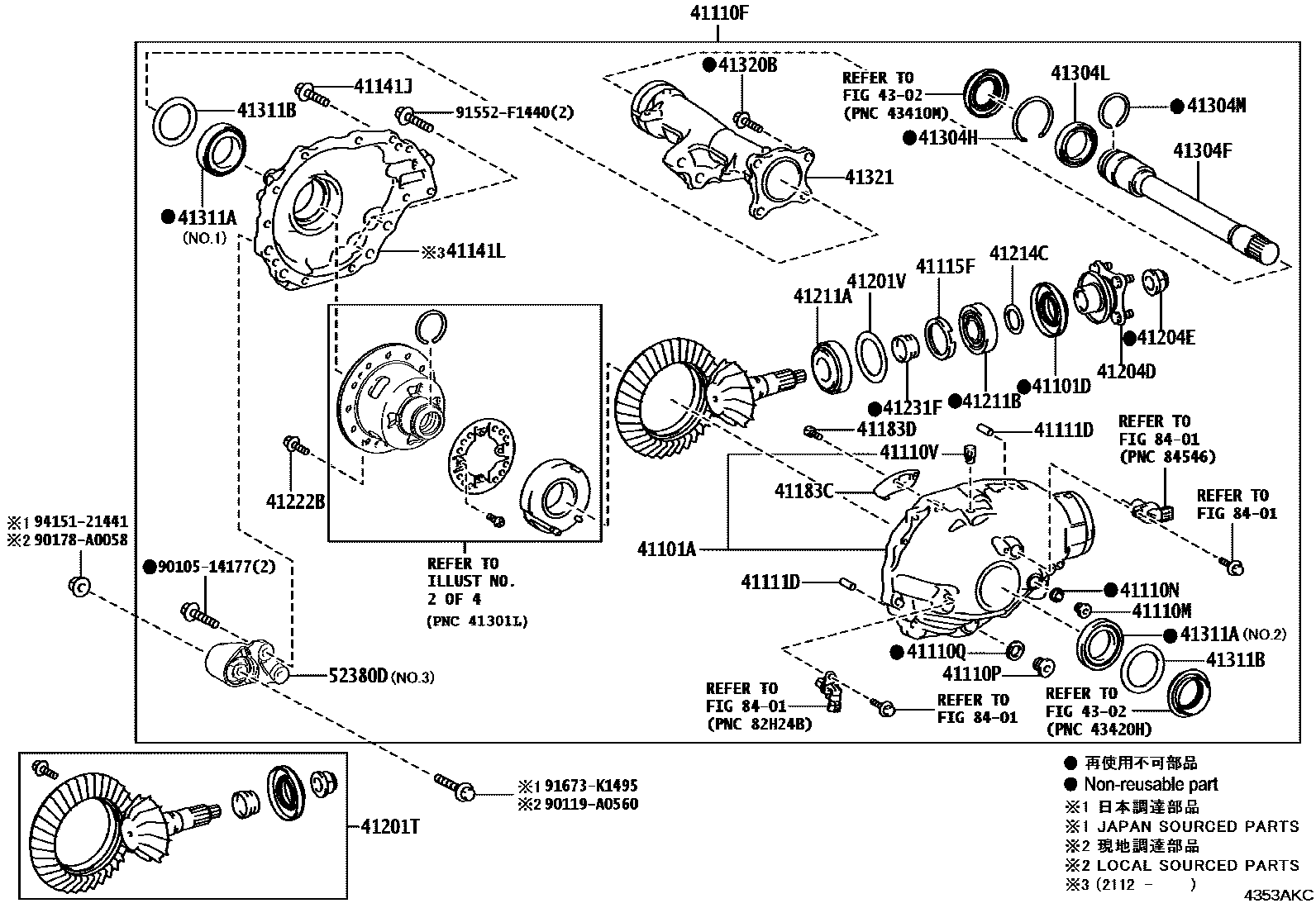

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-60280iVXKA75..DCB..L202111-202408

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-46012iVXKA75..DCB..L202111-202408

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-34520iVXKA75..DCB..L202111-202408

*FGR=43:13=3.307

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iVXKA75..DCB..L202111-202408

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iVXKA75..DCB..L202111-202408

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iVXKA75..DCB..L202111-202408

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24017iVXKA75..DCB..L202111-202408

41110VUNION (FOR FRONT DIFFERENTIAL)

main90407-10027iVXKA75..DCB..L202111-202408

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017×2iVXKA75..DCB..L202111-202408

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-60020iVXKA75..DCB..L202111-202408

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main91552-01035×10iVXKA75..DCB..L202111-202408

*10-1.25PX35-26

41141LRETAINER, FRONT DIFFERENTIAL CROSS SHAFT BEARING

main41141-60020iVXKA75..DCB..L202112-202408

41183CDEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL

main41183-60030iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

41183DBOLT (FOR FRONT DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)

main90110-06009×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80905iVXKA75..DCB..L202111-202408

*FGR=43:13=3.307

41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)

main90564-68104iVXKA75..DCB..L202111-202408

T=1.825

main90564-68105iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.850

main90564-68106iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.875

main90564-68107iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.900

main90564-68108iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.925

main90564-68109iVXKA75..DCB..L202111-202408

T=1.950

main90564-68110iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.975

main90564-68111iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.000

main90564-68112iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.025

main90564-68113iVXKA75..DCB..L202111-202408

T=2.050

main90564-68114iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.075

main90564-68115iVXKA75..DCB..L202111-202408

T=2.100

main90564-68116iVXKA75..DCB..L202111-202408

T=2.125

main90564-68117iVXKA75..DCB..L202111-202408

T=2.150

main90564-68118iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.175

main90564-68119iVXKA75..DCB..L202111-202408

T=2.200

main90564-68120iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.225

main90564-68121iVXKA75..DCB..L202111-202408

T=2.250

main90564-68122iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.275

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-60120iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-22029iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-40144iVXKA75..DCB..L202111-202408

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90363-35088iVXKA75..DCB..L202111-202408

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-34010iVXKA75..DCB..L202111-202408

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90105-12365×12iVXKA75..DCB..L202111-202408

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-60060iVXKA75..DCB..L202111-202408

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-34030iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-77007iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-49011iVXKA75..DCB..L202111-202408

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-46016iVXKA75..DCB..L202111-202408

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-55095iVXKA75..DCB..L202111-202408

NO.2

main90366-58016iVXKA75..DCB..L202111-202408

NO.1

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-65033×2iVXKA75..DCB..L202111-202408

T=1.50

main90564-65034×2iVXKA75..DCB..L202111-202408

T=1.52

main90564-65035×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.54

main90564-65036×2iVXKA75..DCB..L202111-202408

T=1.56

main90564-65037×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.58

main90564-65038×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.60

main90564-65039×2iVXKA75..DCB..L202111-202408

T=1.62

main90564-65040×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.64

main90564-65041×2iVXKA75..DCB..L202111-202408

T=1.66

main90564-65042×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.68

main90564-65043×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.70

main90564-65044×2iVXKA75..DCB..L202111-202408

T=1.72

main90564-65045×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.74

main90564-65046×2iVXKA75..DCB..L202111-202408

T=1.76

main90564-65047×2iVXKA75..DCB..L202111-202408

T=1.78

main90564-65048×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.80

main90564-65049×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.82

main90564-65050×2iVXKA75..DCB..L202111-202408

T=1.84

main90564-65051×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.86

main90564-65052×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.88

main90564-65053×2iVXKA75..DCB..L202111-202408

T=1.90

main90564-65054×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.92

main90564-65055×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.94

main90564-65056×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=1.96

main90564-65057×2iVXKA75..DCB..L202111-202408

T=1.98

main90564-65058×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.00

main90564-65059×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.02

main90564-65060×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.04

main90564-65061×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.06

main90564-65062×2iVXKA75..DCB..L202111-202408

T=2.08

main90564-65063×2iVXKA75..DCB..L202111-202408

T=2.10

main90564-65064×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.12

main90564-65065×2iVXKA75..DCB..L202111-202408

T=2.14

main90564-65066×2iVXKA75..DCB..L202111-202408

T=2.16

main90564-65067×2iVXKA75..DCB..L202111-202408

T=2.18

main90564-65068×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.20

main90564-65069×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.22

main90564-65070×2iVXKA75..DCB..L202111-202408

T=2.24

main90564-65071×2iVXKA75..DCB..L202111-202408

T=2.26

main90564-65072×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.28

main90564-65073×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.30

main90564-65074×2iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

T=2.32

main90564-65075×2iVXKA75..DCB..L202111-202408

T=2.34

41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)

main91552-81240×4iVXKA75..DCB..L202111-202408

41321TUBE, DIFFERENTIAL EXTENSION FLANGE

main41321-60030iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main52380-0C050iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

NO.1

main52380-0C060iVXKA75..DCB..L202111-202408

NO.2

main52380-60190iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111

NO.3

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010514177

main90105-14177

90119A0560

main90119-A0560

90178A0058

main90178-A0058

91552F1440

main91552-F1440

91673K1495

main91673-K1495

9415121441

main94151-21441

40 parts on this diagram · 4 diagrams in section
