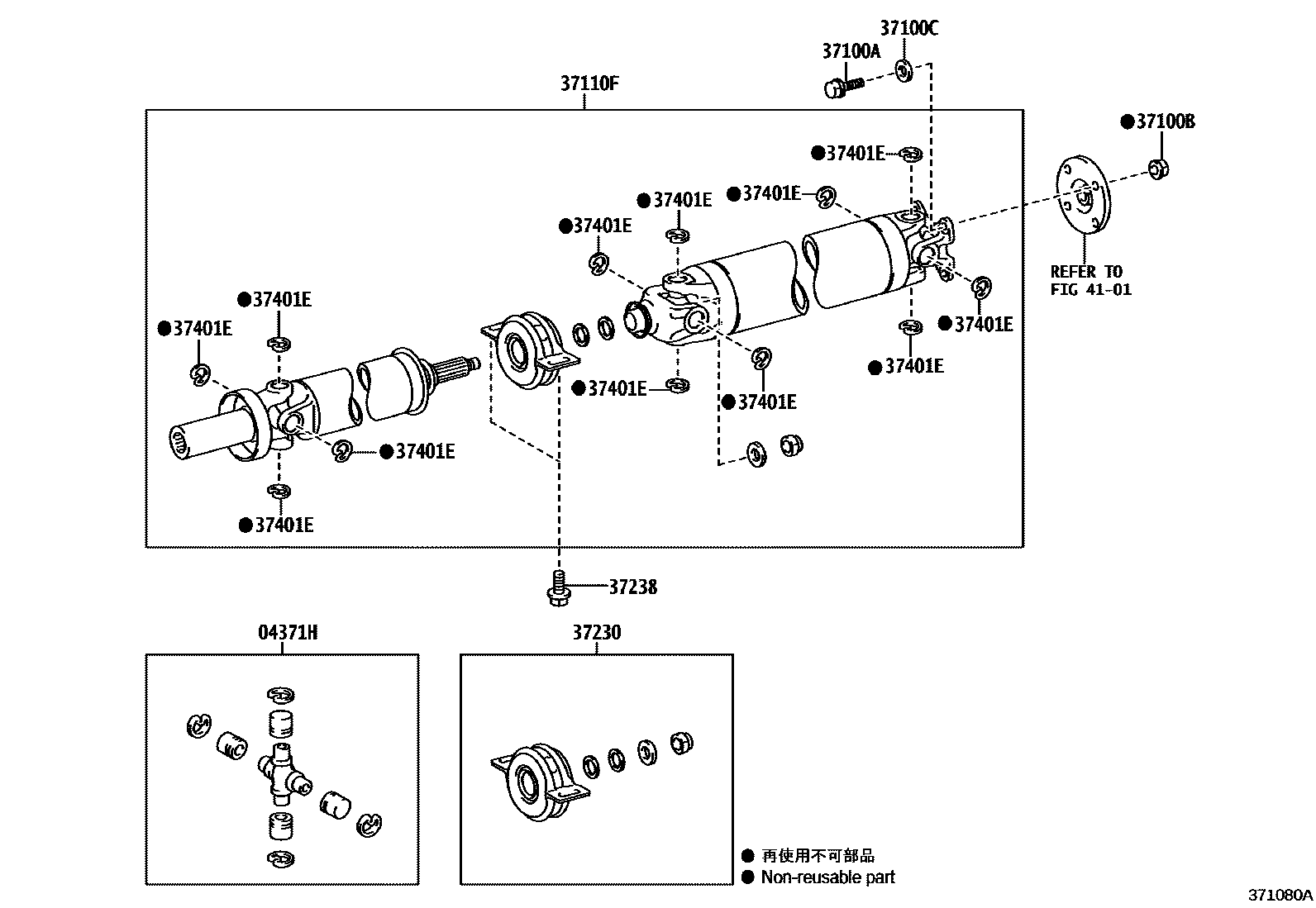

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1FRONT 0004 1REAR 0005 1REAR

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

main04371-0C096×2iVXKA70..DCB..S;VXKA70,76,VXKH76..CMAX;VXKA71,72,77,VXKH71..L,S; VXKH80..L,S;VXKA75..DCB..S;VXKA75,VXKH70,75,85..CMAX,SRF202111

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-A0075×4iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90178-A0045×4iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-11013×4iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

37110FSHAFT ASSY, PROPELLER, REAR

main37100-0C230iVXKA76202111

main37100-0C240iVXKH76202203

main37100-0C250iVXKA77202111

main37100-0C270iVXKA70..CMAX;VXKA70..DCB..S202111

main37100-0C290iVXKA71..L,S202111

main37100-0C300iVXKH71..L202203

main37100-0C310iVXKA72202111

main37110-0C050iVXKH85202207

main37110-0C060iVXKH80..Z202207-202408

main37110-0C200iVXKA75..DCB..L202111-202408

main37110-0C210iVXKH75202203

main37110-0C220iVXKH70202203

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-09130iVXKA70..DCB..S;VXKA70,76,VXKH76..CMAX;VXKA71,72,77,VXKH71..L,S202111

37238DAMPER, CENTER SUPPORT BEARING

main37209-0C010×2iVXKA70..DCB..L;VXKA71,VXKH71..Z202111-202408

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90521-A0008×8iVXKA70..DCB..L;VXKA71,VXKH71..Z; VXKH80..Z;VXKA75..DCB..L202111-202408

T=1.52,BLACK

main90521-A0010×8iVXKA70..DCB..S;VXKA70,76,VXKH76..CMAX;VXKA71,72,77,VXKH71..L,S; VXKH80..L,S;VXKA75..DCB..S;VXKA75,VXKH70,75,85..CMAX,SRF202111

T=1.64,BLUE

main90521-A0011×12iVXKA70..DCB..L;VXKA71,VXKH71..Z; VXKH80..Z;VXKA75..DCB..L202111-202408

T=1.54,BLACK

main90521-A0013×12iVXKA70..DCB..L;VXKA71,VXKH71..Z; VXKH80..Z;VXKA75..DCB..L202111-202408

T=1.62,BLACK

main90521-A0014×12iVXKA70..DCB..L;VXKA71,VXKH71..Z; VXKH80..Z;VXKA75..DCB..L202111-202408

T=1.49,BLACK

main90521-A0015×8iVXKA70..DCB..S;VXKA70,76,VXKH76..CMAX;VXKA71,72,77,VXKH71..L,S; VXKH80..L,S;VXKA75..DCB..S;VXKA75,VXKH70,75,85..CMAX,SRF202111

T=1.51,COPPER

main90521-A0016×12iVXKA70..DCB..S;VXKA70,76,VXKH76..CMAX;VXKA71,72,77,VXKH71..L,S; VXKH80..L,S;VXKA75..DCB..S;VXKA75,VXKH70,75,85..CMAX,SRF202111

T=1.56,SILVER

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

9 parts on this diagram · 5 diagrams in section
