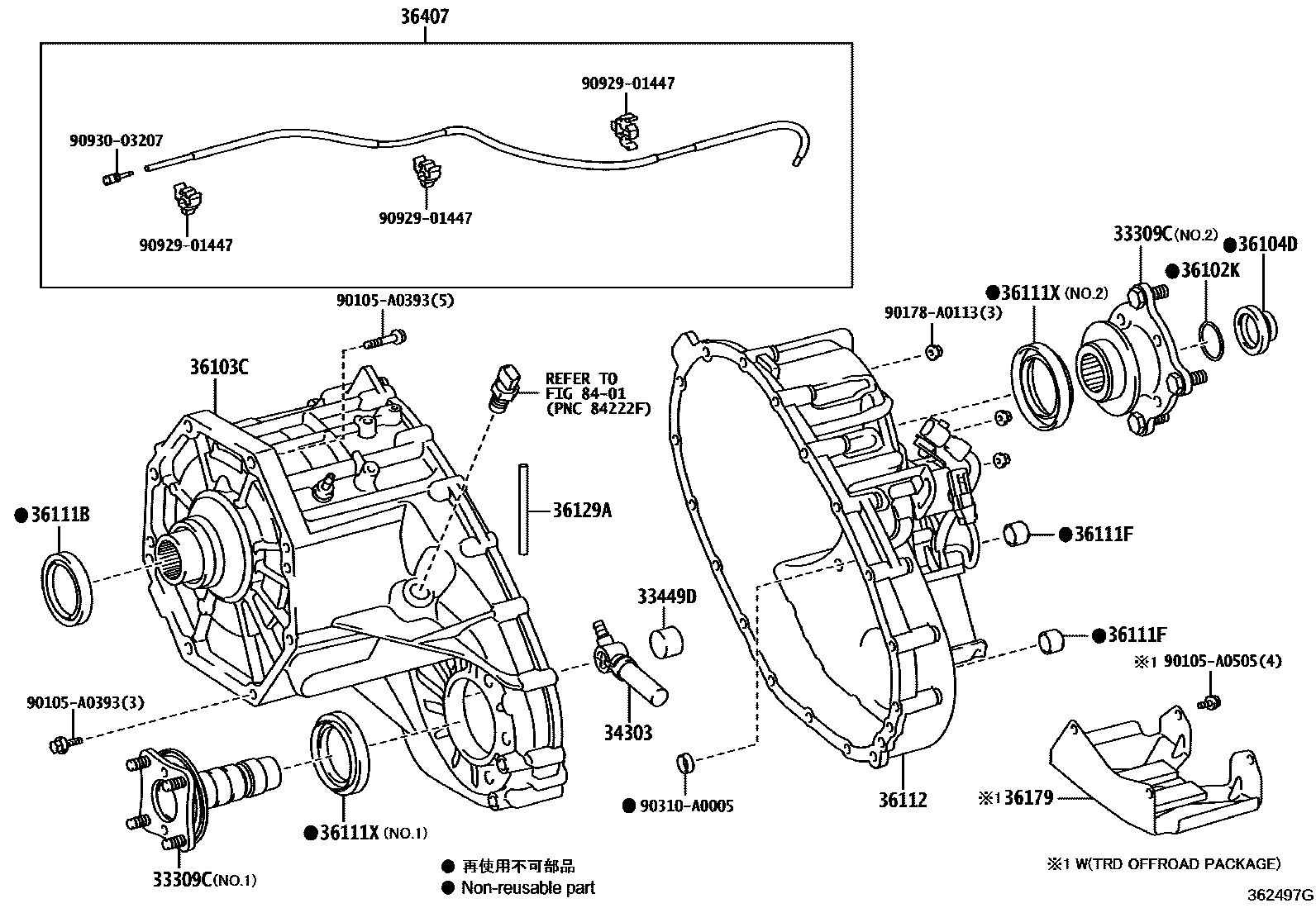

TRANSFER CASE & EXTENSION HOUSING
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33449DMAGNET (FOR TRANSFER CASE)
34303STRAINER SUB-ASSY, TRANSFER OIL
36102KRING, O
36103CCASE, TRANSFER, FRONT
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111XSEAL, OIL (FOR TRANSFER CASE), NO.2
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
36112CASE, TRANSFER, REAR
36129ATUBE, TRANSFER OIL
36179PROTECTOR, TRANSFER CASE LOWER
HERITAGE PACKAGE
36407HOSE SUB-ASSY, TRANSFER BREATHER
8401SWITCH & RELAY & COMPUTER
90105A0393
main90105-A0393
90105A0505
main90105-A0505
90178A0113
main90178-A0113
90310A0005
main90310-A0005
9092901447
main90929-01447
9093003207
main90930-03207
20 parts on this diagram · 2 diagrams in section
