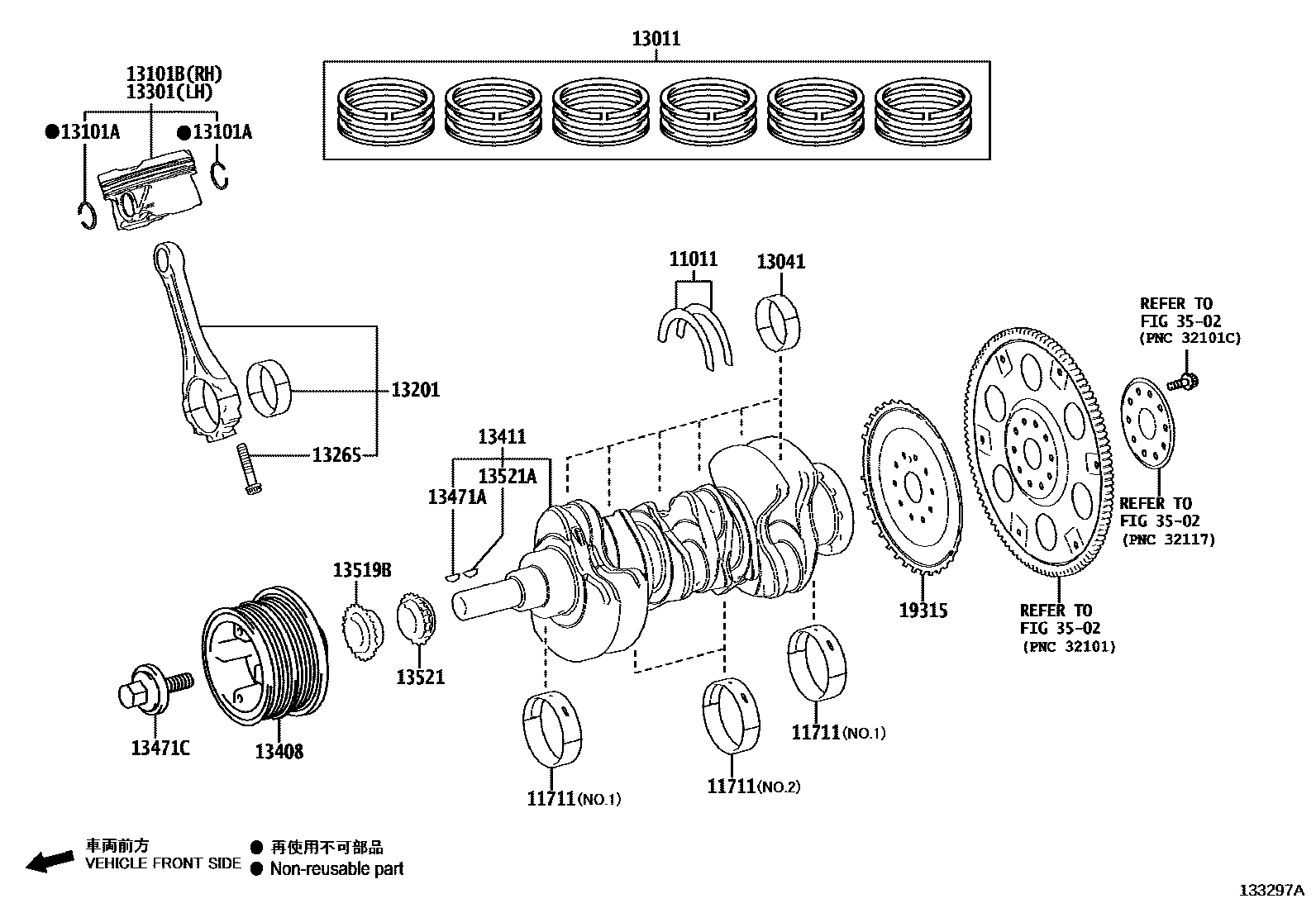

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-70023iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

STD

11711BEARING, CRANKSHAFT

main11071-70040-01×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 1,NO.2,REFER R/M

main11071-70040-02×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 2,NO.2,REFER R/M

main11071-70040-03×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 3,NO.2,REFER R/M

main11071-70040-04×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 4,NO.2,REFER R/M

main11071-70040-05×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 5,NO.2,REFER R/M

main11071-70040-A1×2iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202404-202408

MARK UPPER 1 LOWER 2,NO.2,REFER R/M

main11071-70040-A2×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK UPPER 2 LOWER 3,NO.2,REFER R/M

main11071-70040-A3×2iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202404-202408

MARK UPPER 3 LOWER 4,NO.2,REFER R/M

main11071-70040-A4×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK UPPER 4 LOWER 5,NO.2,REFER R/M

main11072-70010-01iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK UPPER 1 LOWER 1,NO.3,REFER R/M

main11072-70010-02iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK UPPER 2 LOWER 2,NO.3,REFER R/M

main11072-70010-03iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202404-202408

MARK UPPER 3 LOWER 3,NO.3,REFER R/M

main11072-70010-04iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202404-202408

MARK UPPER 4 LOWER 4,NO.3,REFER R/M

main11072-70010-05iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK UPPER 5 LOWER 5,NO.3,REFER R/M

main11072-70010-A1iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202405-202408

MARK UPPER 1 LOWER 2,NO.3,REFER R/M

main11072-70010-A2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202405

MARK UPPER 2 LOWER 3,NO.3,REFER R/M

main11072-70010-A3iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202405

MARK UPPER 3 LOWER 4,NO.3,REFER R/M

main11072-70010-A4iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202405

MARK UPPER 4 LOWER 5,NO.3,REFER R/M

main11701-70041-01iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202404-202408

MARK 1,NO.1,REFER R/M

main11701-70041-02iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK 2,NO.1,REFER R/M

main11701-70041-03×2iV35AFTS..VXKA7#,VXKH7#,8#202111-202404

MARK 3,NO.1,REFER R/M

main11701-70041-04iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK 4,NO.1,REFER R/M

main11701-70041-05iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202404

MARK 5,NO.1,REFER R/M

main11701-70041-A1iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202405

MARK UPPER 1 LOWER 2,NO.1,REFER R/M

main11701-70041-A2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202405

MARK UPPER 2 LOWER 3,NO.1,REFER R/M

main11701-70041-A3iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202405-202408

MARK UPPER 3 LOWER 4,NO.1,REFER R/M

main11701-70041-A4iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202405

MARK UPPER 4 LOWER 5,NO.1,REFER R/M

13011RING SET, PISTON

main13011-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

STD

13041BEARING, CONNECTING ROD

main13041-70031-01×6iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 1,REFER REPAIR MANUAL

main13041-70031-02×6iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 2,REFER REPAIR MANUAL

main13041-70031-03×6iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 3,REFER REPAIR MANUAL

main13041-70031-04×6iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 4,REFER REPAIR MANUAL

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-25090×12iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

13101BPISTON SUB-ASSY, W/PIN, RH

main13101-F4010×3iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

STD

13201ROD SUB-ASSY, CONNECTING

main13201-F9080×6iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

13265BOLT, CONNECTING ROD

main13265-F4010×12iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

13301PISTON SUB-ASSY, W/PIN, LH

main13301-F4010×3iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

STD

13408PULLEY SUB-ASSY, CRANKSHAFT

main13408-70030iV35AFTS..VXKA71,72,77..L,S;V35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA70,75,76..CMAX202111

main13408-70040iV35AFTS..VXKH71,80..Z202203-202408

13411CRANKSHAFT

main13401-70021iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

(J)

main13401-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

(L)

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30516iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-18008iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

13519BSPROCKET, OIL PUMP DRIVE

main13519-70020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-70080iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

18 parts on this diagram · 2 diagrams in section
