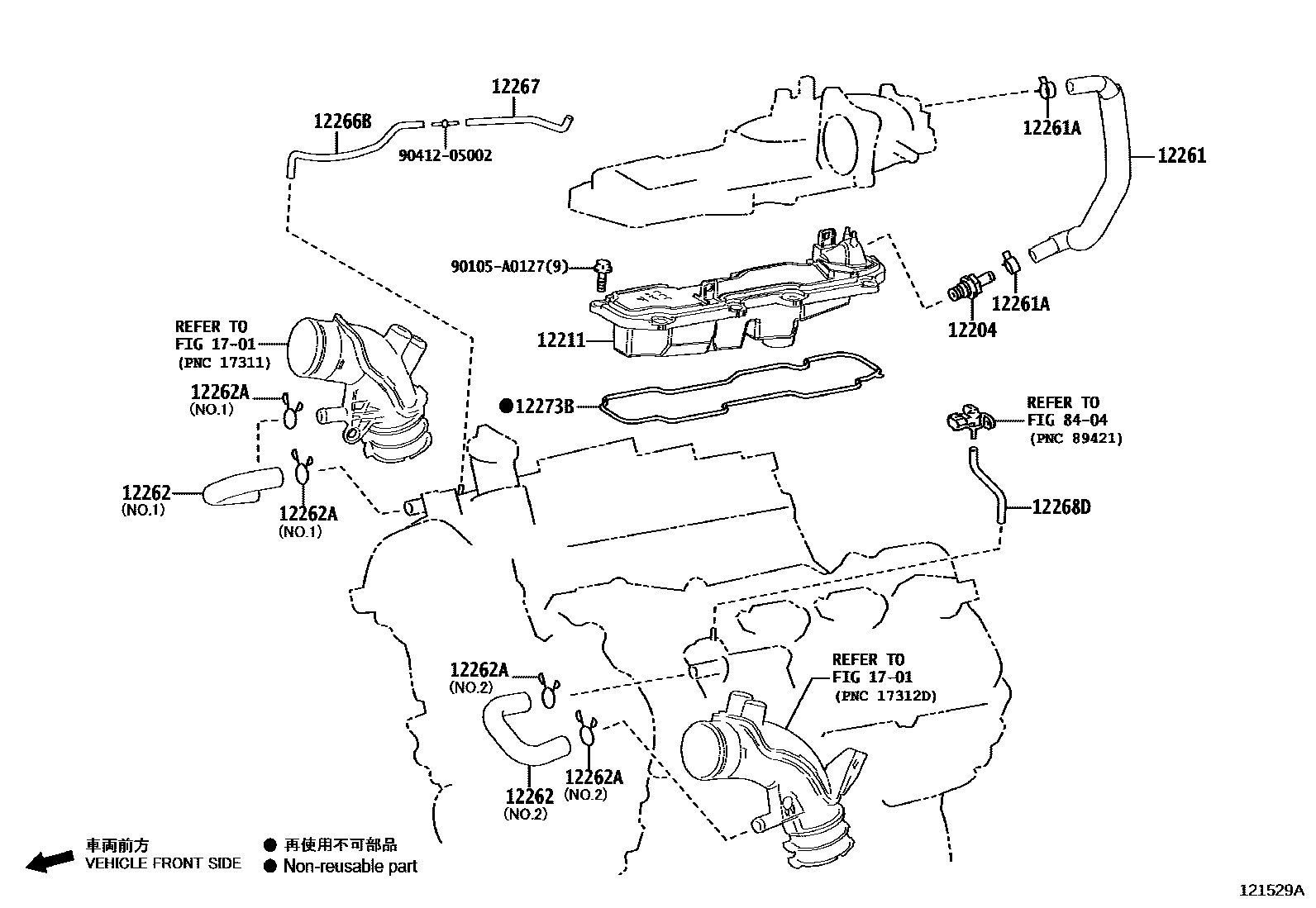

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12211CASE, VENTILATION, NO.1
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-A0014×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111
12262HOSE, VENTILATION, NO.2
NO.1,NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.2
NO.1
12266BHOSE, VENTILATION PRESSURE SENSOR, NO.1
12267HOSE, VENTILATION PRESSURE SENSOR, NO.2
12268DHOSE, VENTILATION PRESSURE SENSOR, NO.3
12273BGASKET, OIL SEPARATOR
1701MANIFOLD
8404ELECTRONIC FUEL INJECTION SYSTEM
90105A0127
main90105-A0127
9041205002
main90412-05002
14 parts on this diagram · 1 diagram in section
