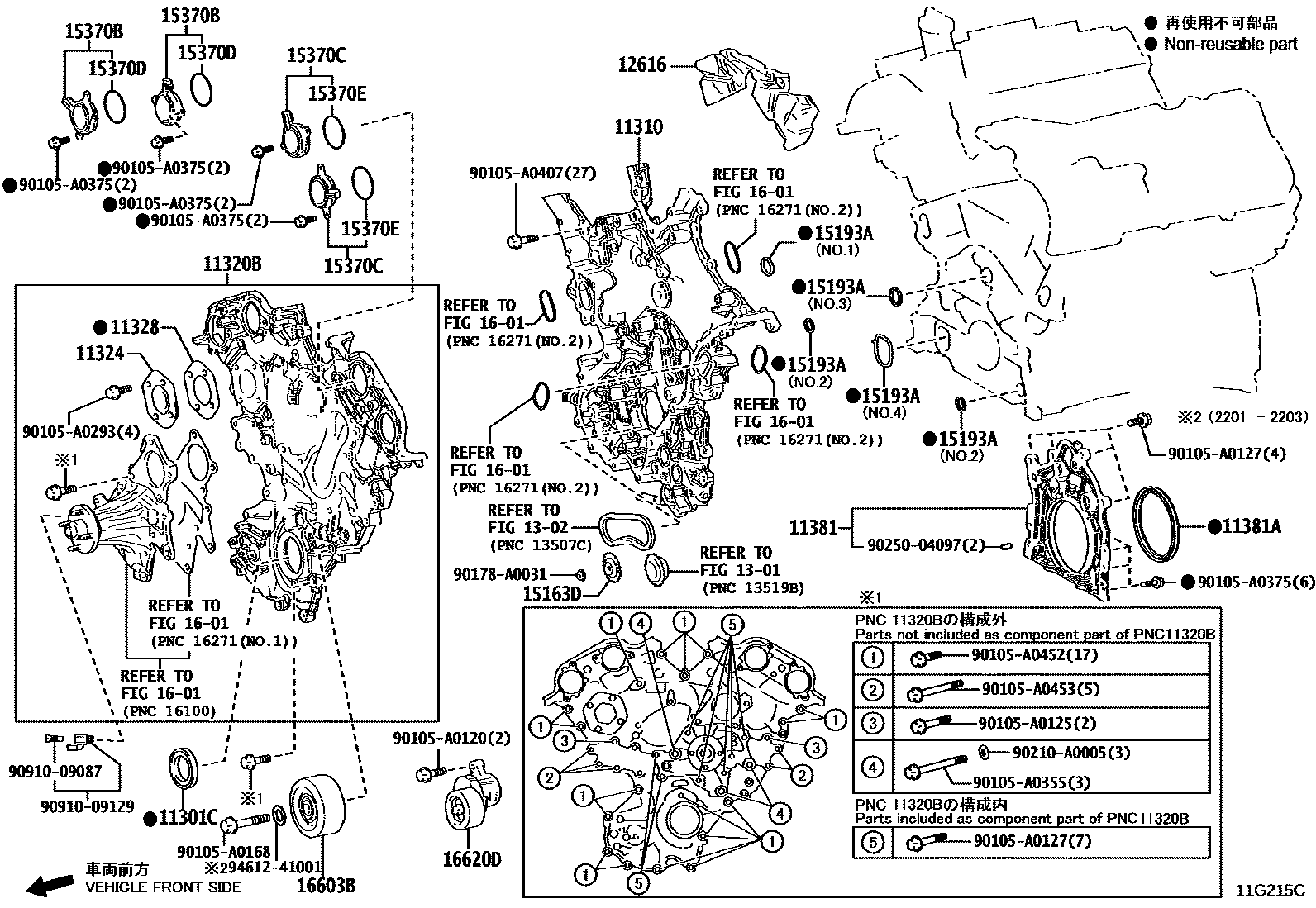

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-A0036iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

11310COVER ASSY, TIMING CHAIN

main11310-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

11324PLATE, TIMING CHAIN COVER

main11324-70030iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-70070iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

11381RETAINER, ENGINE REAR OIL SEAL

main11381-70040iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

11381ASEAL, ENGINE REAR OIL

main90311-A0034iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

12616COVER, ENGINE, NO.6

main12616-F4010iV35AFTS..VXKA7#,VXKH7#,8#202111-202307

main12616-F4020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202308-202408

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15163DSPROCKET, OIL PUMP DRIVE SHAFT

main15163-70020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

15193AGASKET, OIL PUMP

main15197-36010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

NO.1

main15197-70010×2iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

NO.2

main15197-70020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

NO.3

main15197-70030iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

NO.4

15370BSOLENOID ASSY, CAM TIMING OIL CONTROL, RH

main15370-F0020×2iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

15370CSOLENOID ASSY, CAM TIMING OIL CONTROL, LH

main15370-F0020×2iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

15370DRING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)

main90301-T0079×2iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

15370ERING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)

main90301-T0079×2iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

1601WATER PUMP

→ Go to FIG 16-01

16603BPULLEY SUB-ASSY, IDLER

main16603-70020iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-F4010iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

90105A0120

main90105-A0120

90105A0125

main90105-A0125

90105A0127

main90105-A0127

90105A0168

main90105-A0168

90105A0293

main90105-A0293

90105A0355

main90105-A0355

90105A0375

main90105-A0375

90105A0407

main90105-A0407

90105A0452

main90105-A0452

90105A0453

main90105-A0453

90178A0031

main90178-A0031

90210A0005

main90210-A0005

9025004097

main90250-04097

9091009087

main90910-09087

9091009129

main90910-09129

9461241001

main94612-41001

35 parts on this diagram · 2 diagrams in section
