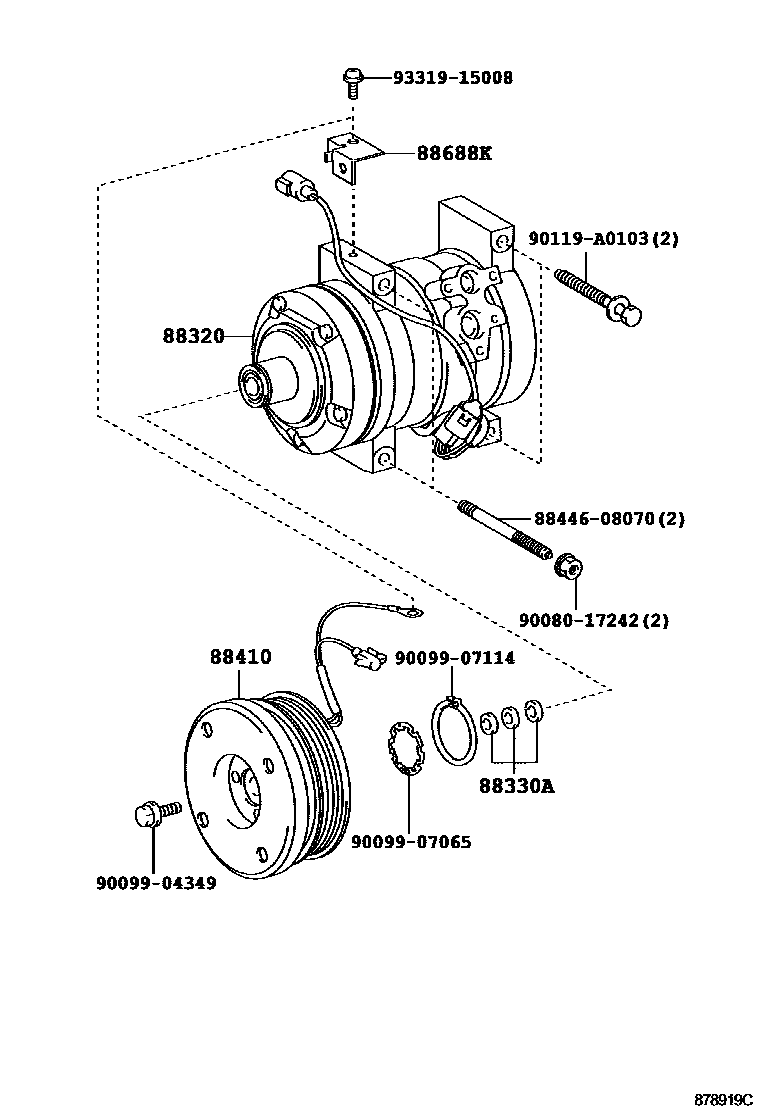

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88320COMPRESSOR ASSY, COOLER

main88320-0C110iUCK5#200611-200904

main88320-0C120iGSK5#200904-201308

AIR CONDITIONER-WITHOUT

main88320-0C130iUSK5#200701-200904

main88320-0C160iUPK5#,USK5#201308-201708

main88320-0C190iUPK5#;USK56,57..HTWCF201708-201907

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGSK5#,UCK5#,USK5#200611-200904

88410CLUTCH ASSY, MAGNET

main88410-0C070iUCK5#200611-200904

main88410-0C080iUPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5; UPK51,56..S;UPK50,USK51,52,55,56,57200904-201308

AIR CONDITIONER-WITHOUT

main88410-0C090iGSK5#200904-201008

AIR CONDITIONER-WITHOUT

main88410-0C130iUSK5#..HTWC201708

main88410-6A140iGSK51201308-201409

88688KBRACKET, COOLER COMPRESSOR

main88688-32670iUPK52,57;UPK51,55,56,USK50..D; UPK52,57;UPK51,55,56,USK50..D,L200904-201005

AIR CONDITIONER-WITHOUT

main88688-32730iUSK5#..HTWC201708

main88688-35600iUCK5#200611-200904

8844608070BOLT, IDLE PULLEY

main88446-08070

9008017242

main90080-17242

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

90119A0103

main90119-A0103

9331915008

main93319-15008

11 parts on this diagram · 5 diagrams in section
