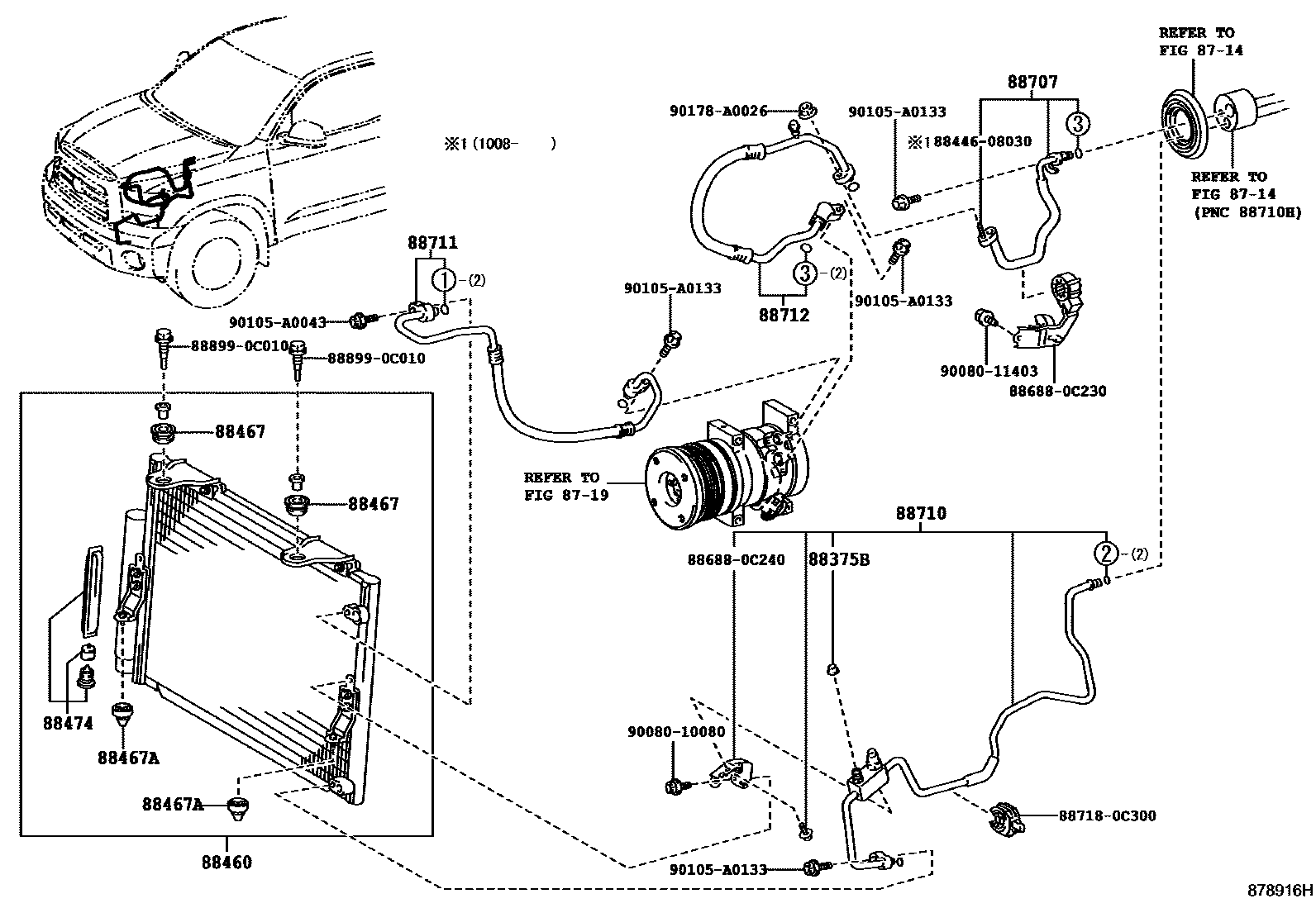

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1 0005 1 0006 1 0009 1W(TRANSMISSION OIL COOLER) 0011 1 0013 1W(TRANSMISSION OIL COOLER) 0014 1 0016 1W(TRANSMISSION OIL COOLER) 0017 1REFRIGERANT TYPE : R-1234YF 0018 1REFRIGERANT TYPE : R-1234YF 0019 1REFRIGERANT TYPE : R-134 0020 1REFRIGERANT TYPE : R-134 0021 1W(TRANSMISSION OIL COOLER) R-0022 1W(TRANSMISSION OIL COOLER) R-0023 1W(TRANSMISSION OIL COOLER) R-0024 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88375BCAP, SERVICE VALVE, NO.1

main88375-02060iGSK5#,UCK5#,USK5#200611-200904

main88375-0E020iUPK5#,USK5#201410-201708

main88375-30320iUSK5#201708-201908

88460CONDENSER ASSY, COOLER

main88460-0C100iGSK5#,UCK5#,USK5#200611-200904

main88460-0C101iUPK5#;USK56,57..HTWCF201901-201907

main88460-0C180iUSK5#..HTWC201908

main88460-0C110iUSK5#201808-201904

TOWING PACKAGE-WITH

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iUPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5; UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201308

AIR CONDITIONER-WITHOUT

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-05010×2iUPK5#,USK5#201708

88474DRYER, COOLER

main88300-0C090iGSK51,UPK5#,USK5#201308-201708

main88474-08010iUPK51,55,56..D,L; UPK52,57200904-201005

TOWING PACKAGE-WITH

main88474-12010iUSK5#201908

main88474-17010iUPK51,56..DCB..S;GSK5#,UPK50,USK51,55,56..(DCB,RCB)..SR5; UPK51,56..S;GSK5#,UPK50,USK51,55,56200904-201308

AIR CONDITIONER-WITHOUT

88707PIPE SUB-ASSY, SUCTION

main88717-0C100iUPK51,55,56,USK50..D; UPK51,55,56..D200904-201005

AIR CONDITIONER-WITHOUT

main88717-0C110iGSK5#,USK52,57;UPK51,56,USK51,56..DCB..S; UPK51,56..S;USK51,56..L,S;GSK5#,USK52,57200904-201007

AIR CONDITIONER-WITHOUT

main88717-0C150iUSK51,56..DCB..S;GSK5#,UPK51,56,USK52,57..DCB,RCB; USK51,56..L,S;GSK5#,UPK51,56,USK52,57201008-201308

AIR CONDITIONER-WITHOUT

88710TUBE ASSY, AIR CONDITIONER

main88710-0C090iGSK5#,UCK5#,USK5#200611-200904

main88716-0C540iUSK5#201708-201908

main88716-0C580iUSK5#201908

main88710-0C810iUSK56,57..DCB; USK56..CMAX..(L,Z); USK56..CMAX;USK51..CMAX..S201908-202008

MEXICO SPEC; NEW CALEDONIA SPEC; SOUTH AMERICA SPEC

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0C110iGSK5#200904-201308

AIR CONDITIONER-WITHOUT

main88711-0C120iUCK5#200611-200904

main88711-0C130iUSK5#200701-200904

main88711-0C160iUPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5; UPK51,56..S;UPK50,USK51,52,55,56,57200904-201308

AIR CONDITIONER-WITHOUT

main88711-0C161iUPK5#,USK5#201412-201708

main88711-0C210iUSK5#..HTWC201908

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0C080iGSK5#200904-201008

AIR CONDITIONER-WITHOUT

main88712-0C090iUCK50,51,55,56..D200611-200904

main88712-0C100iUCK51,52,56,57..L,S200611-200904

main88712-0C110iUSK50,51,55,56..D200701-200904

main88712-0C120iUPK51,56,USK51,52,56,57..DCB..S; USK51,56..L,S;UPK51,56,USK52,57..S200904-201308

AIR CONDITIONER-WITHOUT

main88712-0C170iGSK5#201008-201308

AIR CONDITIONER-WITHOUT

main88712-0C210iUSK5#201708-201811

OD=24.5

main88712-0C211iUSK5#201811

OD=22.0

8844608030BOLT, IDLE PULLEY

main88446-08030

886880C230BRACKET, COOLER DIAPHRAGM

main88688-0C230

886880C240BRACKET, COOLER DIAPHRAGM

main88688-0C240

887180C300PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0C300

888990C010COVER, EVAPORATOR

main88899-0C010

9008010080

main90080-10080

9008011403

main90080-11403

90105A0043

main90105-A0043

90105A0133

main90105-A0133

90178A0026

main90178-A0026

21 parts on this diagram · 18 diagrams in section
