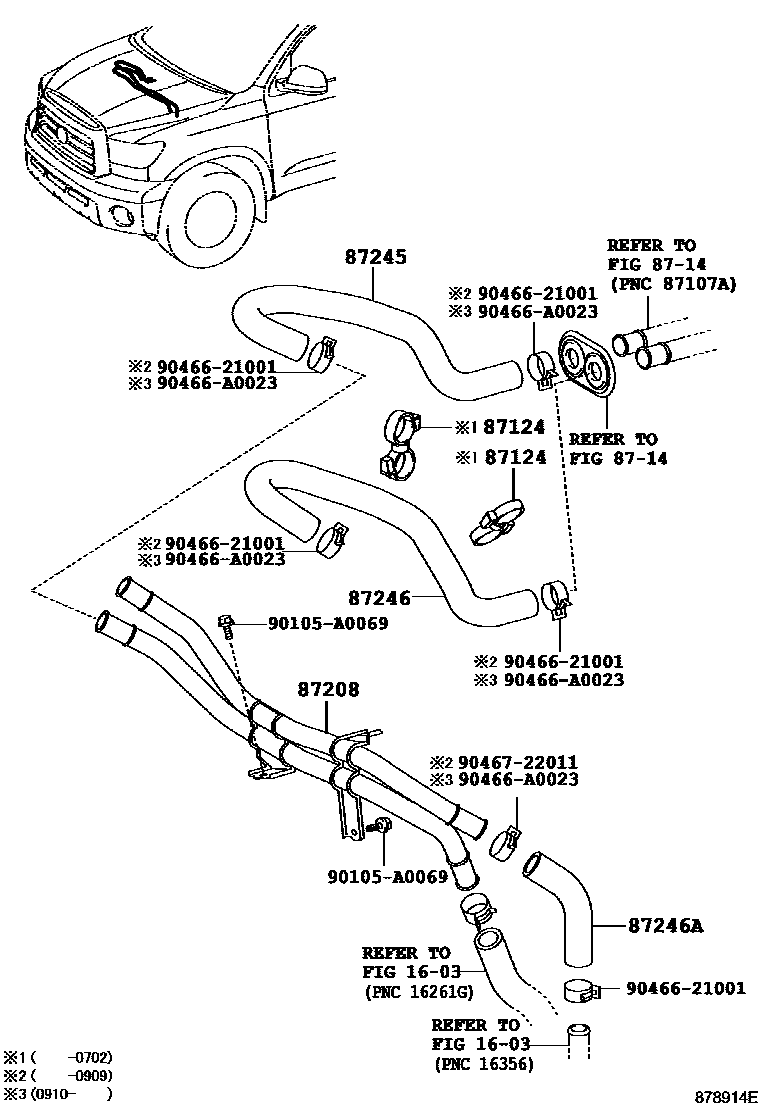

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124CLAMP, HEATER

main87124-42030×2iGSK5#200611-200710

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87208PIPE SUB-ASSY, HEATER WATER

main87208-0C010iGSK5#200611-200904

main87208-0C020iGSK5#201008-201308

87245HOSE, HEATER WATER, INLET

main87245-0C200iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

main87245-0C201iUPK5#,USK5#201708

main87245-0C250iGSK5#200611-200710

main87245-0C251iGSK5#200710-200904

main87245-0C260iUCK5#200611-200904

main87245-0C470iGSK51201308-201409

87246HOSE, HEATER WATER, OUTLET

main87245-0C210iUSK5#200701-200904

main87245-0C211iUPK5#;USK56,57..HTWCF201708-201907

main87245-0C240iGSK5#200611-200710

main87245-0C241iGSK5#200710-200904

main87245-0C270iUCK5#200611-200904

main87245-0C460iGSK51201308-201409

87246AHOSE, HEATER WATER, OUTLET A

main87245-0C180iUCK5#200611-200706

main87245-0C181iUCK5#200707-200904

main87245-0C280iGSK5#200904-201008

main87245-0C480iGSK5#201008-201308

90105A0069

main90105-A0069

9046621001

main90466-21001

90466A0023

main90466-A0023

9046722011

main90467-22011

11 parts on this diagram · 4 diagrams in section
