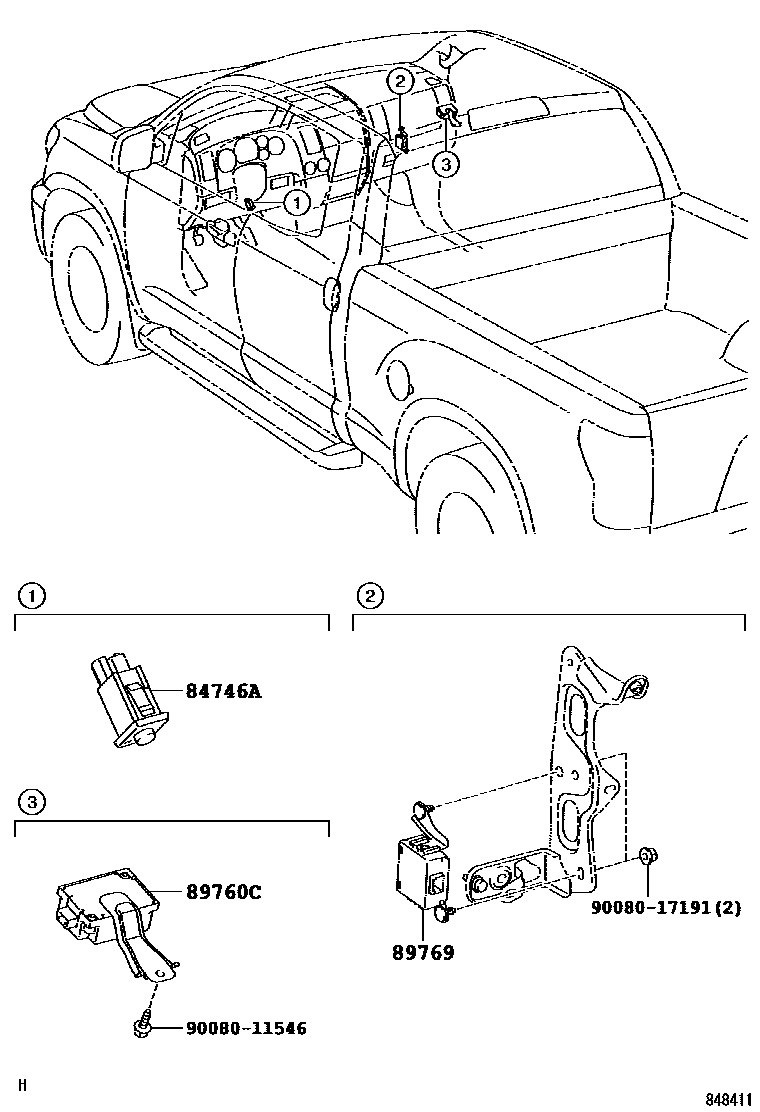

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-AE010iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-0C010iGSK51201308-201409

main89760-0C020iUCK51,56,USK51,56..CMAX200703-200904

89769COMPUTER, TIRE PRESSURE MONITOR

main89769-0C010iGSK5#,UCK5#,USK5#200611-200706

main89769-0C011iGSK5#,UCK5#,USK5#200706-200707

main89769-0C021iGSK5#,UCK5#,USK5#..DCB,RCB200707-200709

main89769-0C022iUSK55,56,57..HTWCF;UCK51,56,USK51,56..CMAX..HTWC200709-200904

9008011546

main90080-11546

9008017191

main90080-17191

5 parts on this diagram · 2 diagrams in section
