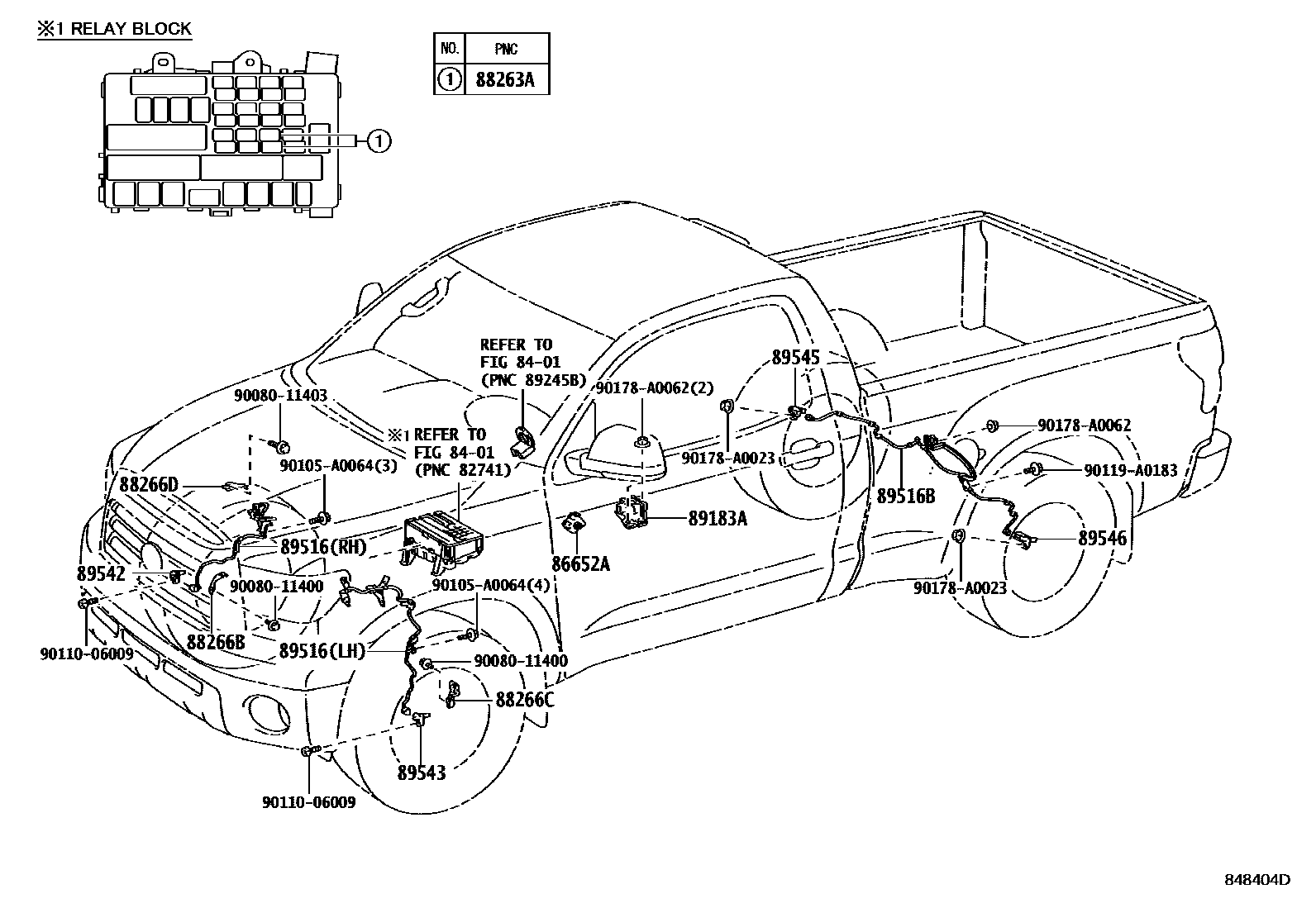

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-04010iGSK5#,UCK5#,USK5#200611-200904

88263ARELAY, SKID CONTROL

main90084-98032×2iGSK5#,UCK5#,USK5#200611-200904

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0C030iGSK5#,UCK5#,USK5#200611-200904

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0C080iGSK5#,UCK5#,USK5#200611-200904

88266DCLAMP, SKID CONTROL SENSOR, NO.3

main88266-0C040iUSK5#..HTWC201708

89183ASENSOR, YAWRATE

main89180-0C040iGSK5#,UCK50,51,52,USK50,51,52200611-200904

main89180-0C050iUCK55,56,57,USK55,56,57200611-200904

main89180-0C060iUPK51,USK51,52201308-201708

main89180-0C070iUPK56,USK55,56,57201304-201308

89516WIRE, SKID CONTROL SENSOR

main89516-0C030iGSK5#,UCK5#,USK5#200611-200904

RH

main89516-0C040iUSK5#..HTWC201708

LH

89516BWIRE, SKID CONTROL SENSOR

main89516-0C050iUPK5#,USK5#201708

89542SENSOR, SPEED, FRONT RH

main89542-0C020iGSK5#,UCK5#,USK5#200611-200904

main89542-0C030iUPK5#;USK56,57..HTWCF201708-201907

89543SENSOR, SPEED, FRONT LH

main89543-0C020iGSK5#,UCK5#,USK5#200611-200904

main89543-0C030iUPK5#;USK56,57..HTWCF201708-201907

89545SENSOR, SPEED, REAR RH

main89542-0C020iGSK5#,UCK5#,USK5#200611-200904

main89542-0C030iUPK5#;USK56,57..HTWCF201708-201907

89546SENSOR, SPEED, REAR LH

main89543-0C020iGSK5#,UCK5#,USK5#200611-200904

main89543-0C030iUPK5#;USK56,57..HTWCF201708-201907

9008011400

main90080-11400

9008011403

main90080-11403

90105A0064

main90105-A0064

9011006009

main90110-06009

90119A0183

main90119-A0183

90178A0023

main90178-A0023

90178A0062

main90178-A0062

20 parts on this diagram · 2 diagrams in section
