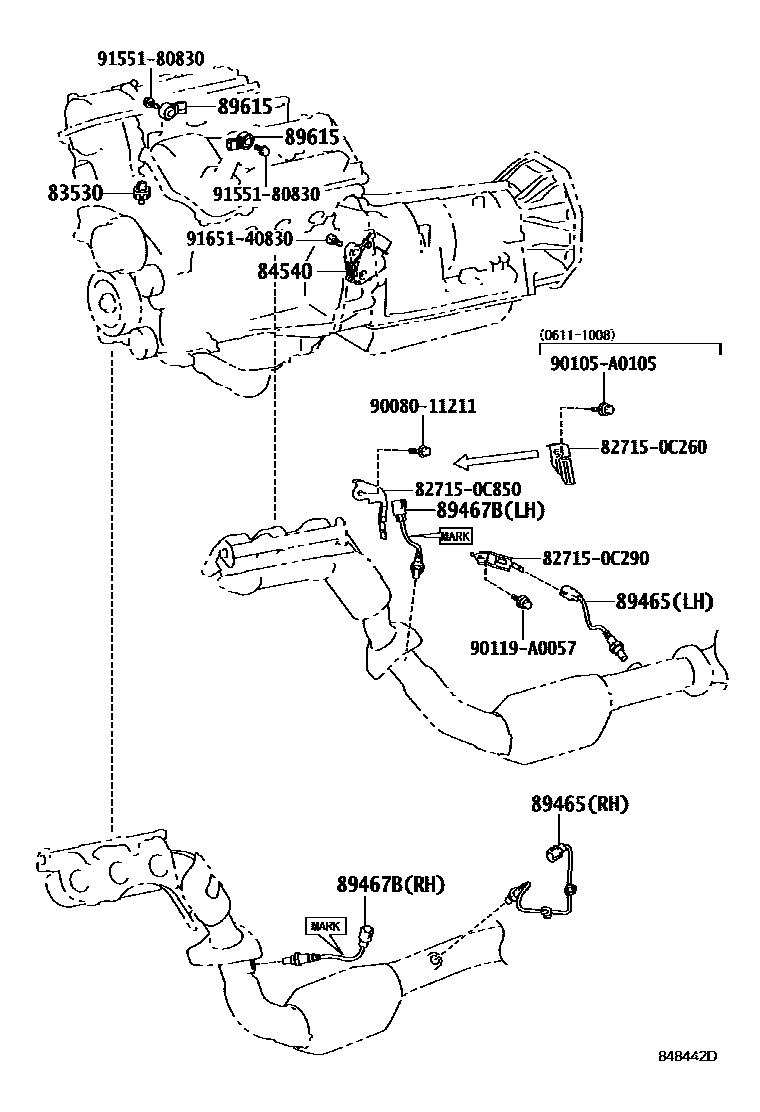

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0008 1ENGINE ROOM 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1ENGINE ROOM RELAY BLOCK 0013 1COWL 0014 1COWL 0015 1COWL 0016 1COWL 0017 1INSTRUMENT PANEL(BENCH SEAT) 0018 1INSTRUMENT PANEL(SEPARATE SEA0019 1INSTRUMENT PANEL(BENCH SEAT) 0020 1INSTRUMENT PANEL(SEPARATE SEA0021 1INSTRUMENT PANEL(BENCH SEAT) 0022 1INSTRUMENT PANEL(BENCH SEAT) 0023 1INSTRUMENT PANEL(SEPARATE SEA0024 1INSTRUMENT PANEL(SEPARATE SEA0025 1INSTRUMENT PANEL(SEPARATE SEA0027 1INSTRUMENT PANEL(SEPARATE SEA0028 1INTEGRATION PANEL 0029 1STEERING 0030 1STEERING 0031 1SEAT 0032 1SEAT 0033 1DOOR,ROOF,FLOOR & LUGGAGE 0034 1DOOR,ROOF,FLOOR & LUGGAGE 0035 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iGSK5#200611-201409

84540SWITCH ASSY, NEUTRAL START

main84540-0C010iGSK5#,UCK5#,USK5#200611-201907

89465SENSOR, OXYGEN

main89465-0C180iGSK5#,UCK5#,USK5#200611-201508

LH

main89465-0C190iGSK5#200611-201508

RH

main89465-0C250iUSK56,57..HTWCF201708-201907

LH

main89465-0C260iUSK5#..HTWC201708-201907

RH

main89465-0C290iUPK5#201411-201907

LH

main89465-0C300iUPK5#201411-201907

RH

main89465-34160iGSK51201209-201410

LH

main89465-34170iGSK51201209-201410

RH

89467BSENSOR, AIR FUEL RATIO

main89467-04020iGSK5#,UCK5#,USK5#200611-200707

W/O TAPE

main89467-04060iGSK5#,UCK5#,USK5#200707-200904

W/TAPE

main89467-04060iUSK5#200904-201308

main89467-04060iUSK50200906-201109

LH

main89467-04090iUSK5#201209-201508

LH

main89467-04090iGSK51201308-201409

main89467-0C030iUSK51,52,55,56,57200906-201109

RH

main89467-0C050iUSK56,57..HTWCF201209-201508

RH

main89467-0C060iUSK56,57..HTWCF201308-201907

LH

main89467-0C070iUSK5#..HTWC201308-201907

RH

main89467-22030iUSK5#201109-201209

RH

main89467-34030iUSK5#201109-201209

LH

main89467-34030iGSK5#201008-201209

89615SENSOR, KNOCK CONTROL

main89615-06010iUPK5#,USK5#201008-201308

main89615-06010iGSK51201308-201907

(L)

main89615-20090iGSK5#,UCK5#200611-201008

main89615-20090iUPK5#;USK56,57..HTWCF201308-201907

(J)

827150C260BRACKET,WIRING HARNESS CLAMP

main82715-0C260

827150C290BRACKET,WIRING HARNESS CLAMP

main82715-0C290

827150C850BRACKET,WIRING HARNESS CLAMP

main82715-0C850

9008011211

main90080-11211

90105A0105

main90105-A0105

90119A0057

main90119-A0057

9155180830

main91551-80830

9165140830

main91651-40830

13 parts on this diagram · 34 diagrams in section
