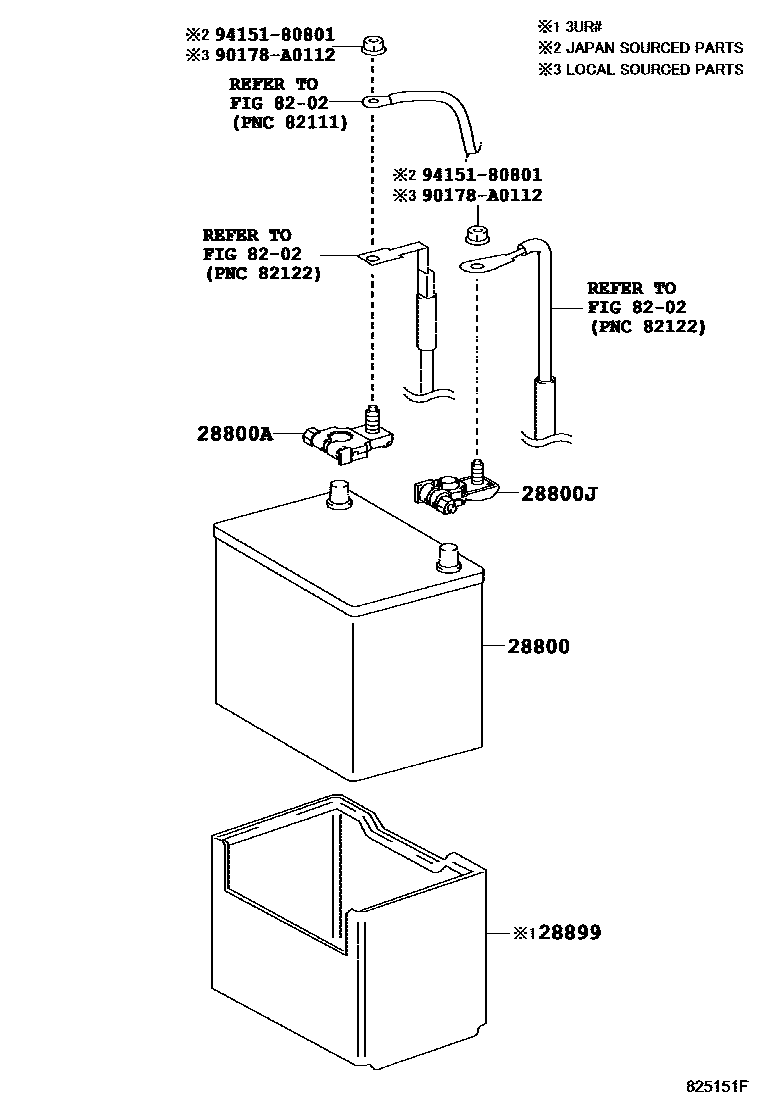

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0F010i200701-200904

105D31L,COLD AREA SPEC&TOWING PACKAGE-WITH,GNB; 105D31L,GNB; 105D31L,TOWING PACKAGE-WITH,GNB

main28800-0F020supersedes 28800-AA041i200701-200904

105D31L,COLD AREA SPEC&TOWING PACKAGE-WITH,JOHNSON; 105D31L,JOHNSON; 105D31L,TOWING PACKAGE-WITH,JOHNSON

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200904-200911

main90982-05061i200912-201308

28800JTERMINAL, BATTERY NEGATIVE

main90982-06024i200611-200705

main90982-06059i200705-200904

28899INSULATOR, BATTERY

main28899-54050supersedes 28899-64110i200701-200806

COLD AREA SPEC; COLD AREA SPEC&TOWING PACKAGE-WITH; TOWING PACKAGE-WITH

8202WIRING & CLAMP

90178A0112

9415180801

7 parts on this diagram · 1 diagram in section
