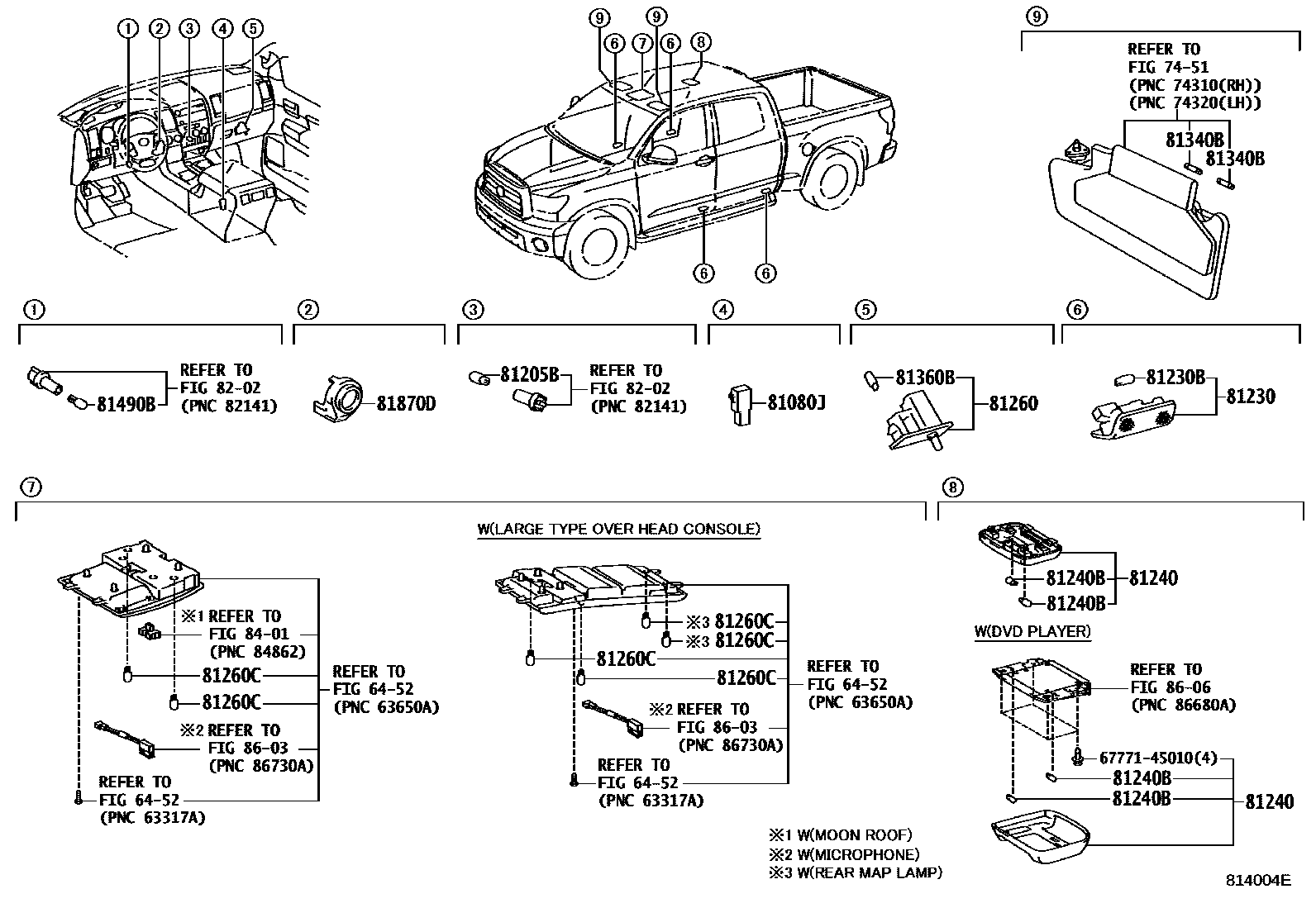

INTERIOR LAMP
6452ROOF HEADLINING & SILENCER PAD
7451ARMREST & VISOR
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
NUMBER OF PASSENGER-FRONT:2
NUMBER OF PASSENGER-FRONT:2 REAR:3
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#,2#
LOW PACKAGE,LT.GRAY,TRIM1#
NEW CALEDONIA SPEC,LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM1#,2#
MEXICO SPEC,LT.GRAY,TRIM1#,2#
MEXICO SPEC,LT.GRAY,TRIM2#
MEXICO SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
MEXICO SPEC&MOON ROOF-WITH,LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
main90084-81002iUSK51..S;USK51..CMAX..L;UCK51,56,USK56..CMAX;GSK51,UCK51,52,56,57,USK52,56,57..DCB..S200611-201708
12V 5W
81260LAMP ASSY, GLOVE BOX
81260CBULB(FOR MAP LAMP)
12V 5W,WITH(LARGE TYPE OVER-HEAD CONSOLE)&AUDIO-AM/FM & CD & SDARS & *BT & 6SPEAKER
12V 5W
12V 5W,MOON ROOF-WITH
12V 5W,WITH(LARGE TYPE OVER-HEAD CONSOLE)
12V 5W,WITH(LARGE TYPE OVER-HEAD CONSOLE)&AUDIO-AM/FM CD CHANGER 8SPEAKER & 4TWEETER JBL
12V 5W,WITH(LARGE TYPE OVER-HEAD CONSOLE)&AUDIO-ACCESSORY AUDIO & 6SPEAKER
12V 5W,WITH(LARGE TYPE OVER-HEAD CONSOLE)&AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL
main90084-81002iUSK51..CMAX..L;UCK51,56,USK56..DCB..S;UCK51,56,USK56..CMAX,RCB;GSK5#,UCK50,52,55,57,USK50,51,52,55,57..SR5200611-200904
12V 5W,WITH(LARGE TYPE OVER-HEAD CONSOLE)&AUDIO-AVN & CD CHANGER 8SPEAKER & 2TWEETER JBL
81340BBULB (FOR VANITY LAMP)
12V 5W
14V 1.4W
14V 1.4W,MOON ROOF-WITH
81360BBULB, STEP OR SPOT LAMP
12V 1.2W W/O SOCKET
12V 1.2W W/O SOCKET,C-CAB DX GRADE PACKAGE
81490BBULB (FOR FOOT LAMP)
14V 1.4W
14V 1.4W,C-CAB DX GRADE PACKAGE
14V 1.4W,DX GRADE PKG
14V 1.4W,WORK TRUCK PACKAGE
14V 1.4W,LOW PACKAGE
81870DLAMP ASSY, KEY CYLINDER
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8603NAVIGATION & FRONT MONITOR DISPLAY
8606CAMERA & REAR MONITOR DISPLAY
6777145010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-45010
19 parts on this diagram · 3 diagrams in section
