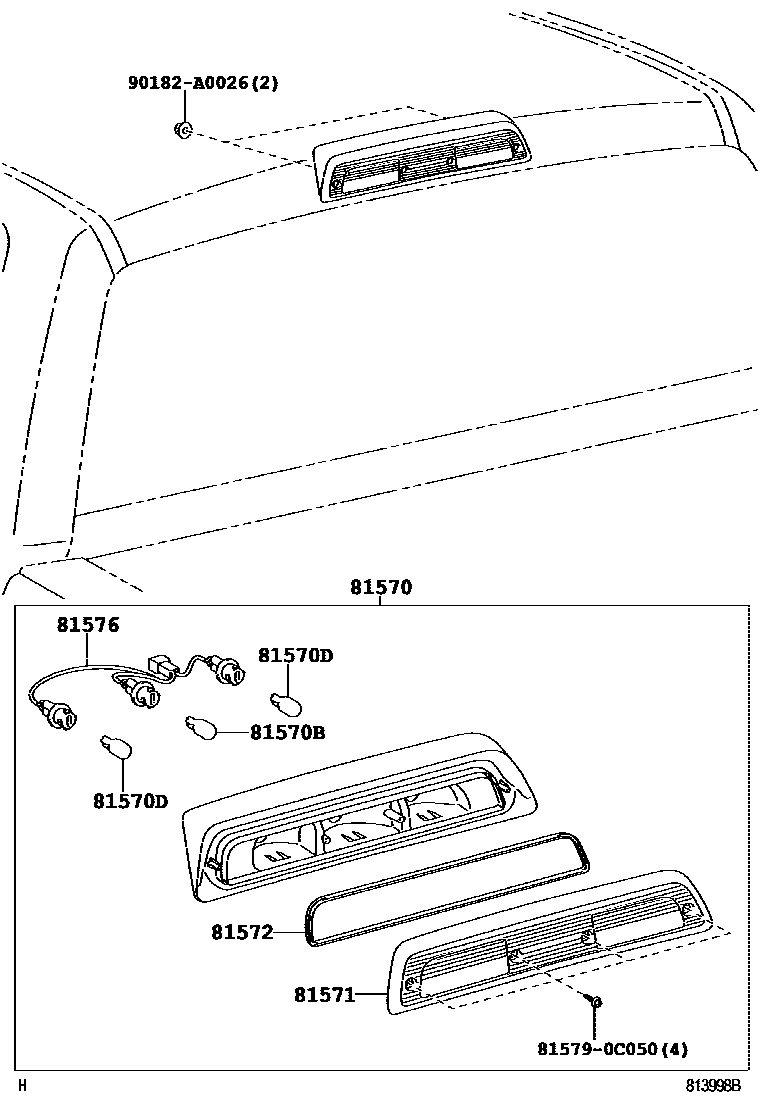

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-0C050iGSK5#,UCK5#,USK5#200611-200904

main81570-0C051iUSK5#201908

81570BBULB (FOR CENTER STOP LAMP)

main90084-98039iGSK5#,UCK5#,USK5#200611-200904

12V 16W

81570DBULB (FOR DECK LAMP)

main90084-98039×2iGSK5#,UCK5#,USK5#200611-200904

12V 16W

81571LENS, CENTER STOP LAMP

main81571-0C050iGSK5#,UCK5#,USK5#200611-200904

81572GASKET, CENTER STOP LAMP

main81572-0C050iGSK5#,UCK5#,USK5#200611-200904

81576SOCKET & WIRE, CENTER STOP LAMP

main81576-0C050iGSK5#,UCK5#,USK5#200611-200904

815790C050BRACKET, CENTER STOP LAMP

main81579-0C050

90182A0026

main90182-A0026

8 parts on this diagram · 1 diagram in section
