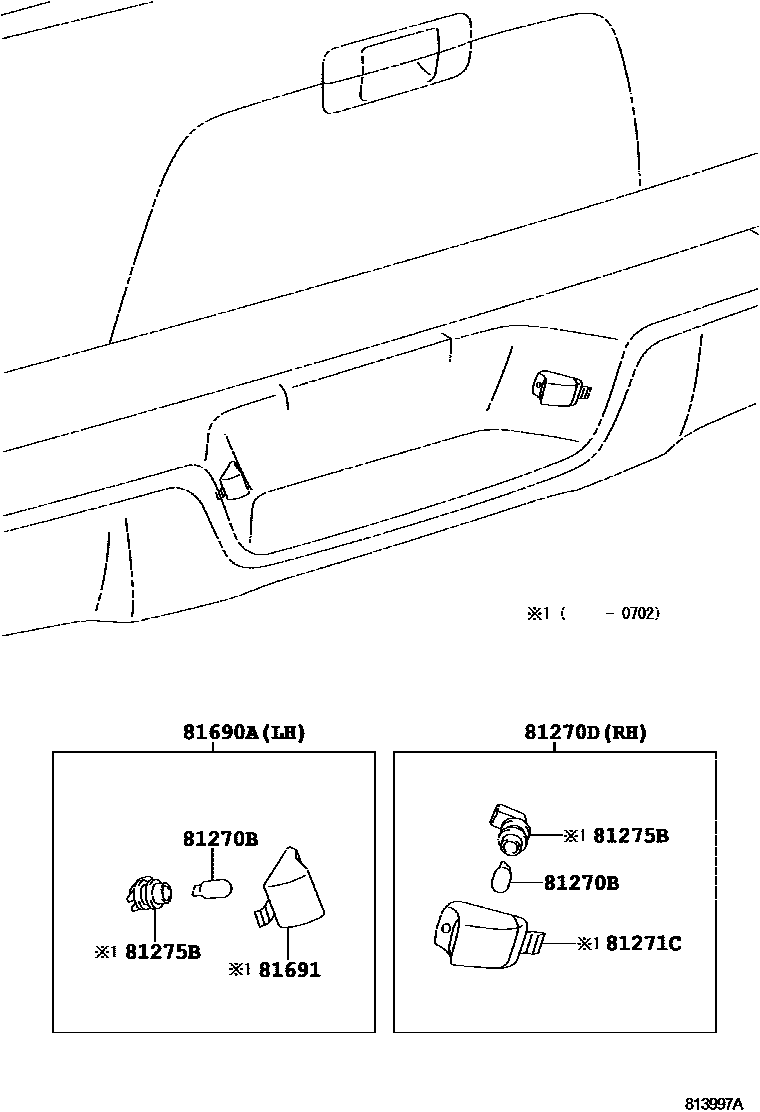

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270BBULB (FOR LICENSE PLATE LAMP)

main90080-81059×2iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

12V 5.0W

main90981-AD009×4iGSK51201308-201409

12V 5.0W

81270DLAMP ASSY, LICENSE PLATE, RH

main81270-0C010iGSK5#,UCK5#,USK5#200611-200702

main81270-0C021iGSK5#,UCK5#,USK5#200702-200812

main81270-0C022iGSK5#,UCK5#,USK5#200901-200904

main81270-0C040iUPK5#;USK56,57..HTWCF201708-201907

81271CLENS & COVER, LICENSE PLATE LAMP, RH

main81271-0C010iGSK5#,UCK5#,USK5#200611-200702

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90075-60005×2iGSK5#,UCK5#,USK5#200611-200702

81690ALAMP ASSY, LICENSE PLATE, LH

main81270-0C040iUPK5#;USK56,57..HTWCF201708-201907

main81690-0C010iGSK5#,UCK5#,USK5#200611-200702

main81690-0C021iGSK5#,UCK5#,USK5#200702-200812

main81690-0C022iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

81691LENS & COVER, LICENSE PLATE LAMP, LH

main81691-0C010iGSK5#,UCK5#,USK5#200611-200702

6 parts on this diagram · 2 diagrams in section
