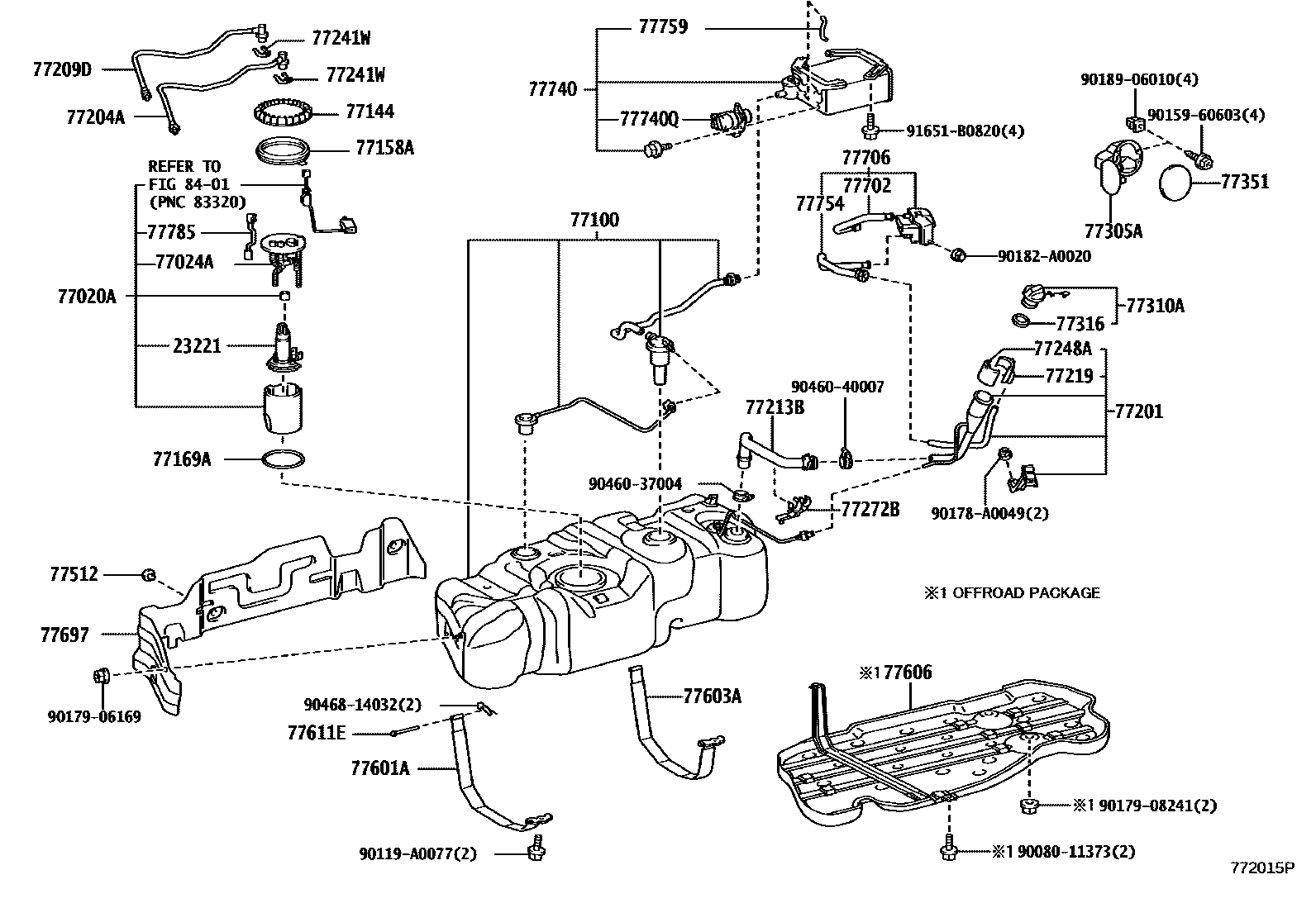

FUEL TANK & TUBE
23221PUMP, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
FUEL TANK-38 GALLON
FUEL TANK-38 GALLON
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
FUEL TANK-38 GALLON
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77169AGASKET, FUEL SUCTION TUBE SET
77201PIPE SUB-ASSY, FUEL TANK INLET
77204ATUBE, FUEL TANK RETURN
main77204-0C060iUSK56,57..HTWCF;GSK50,UCK50,55,USK50,55;GSK51,UCK51,56,USK51,56..DCB..HTWC200808-200904
FUEL TANK-38 GALLON
77209DTUBE SUB-ASSY, FUEL TANK MAIN
NO.1
NO.2
NO.3
NO.1
NO.3
FUEL TANK-38 GALLON
FUEL TANK-38 GALLON
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77241WCLIP, TUBE JOINT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77272BSUPPORT, BREATHER TUBE, NO.1
77305ALID SUB-ASSY, FUEL FILLER OPENING
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77351LID, FUEL FILLER OPENING, OUTER
main77351-0C070iGSK50,UCK50,55,USK50,55;GSK51,UCK51,56,USK51,56..L,S; UCK52,57,USK52,57;GSK51,UCK51,56,USK51,56..D200611-200904
77512BRACKET, FUEL TANK, REAR
FUEL TANK-38 GALLON
77601ABAND SUB-ASSY, FUEL TANK, NO.1
main77601-0C090iUSK51,56..(CMAX,DCB)..S; USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S)201409-201708
OFFROAD PACKAGE&FUEL TANK-38 GALLON; TRD PRO&FUEL TANK-38 GALLON
FUEL TANK-38 GALLON
77603ABAND SUB-ASSY, FUEL TANK, NO.2
OFFROAD PACKAGE
OFFROAD PACKAGE; ROCK WARRIOR PACKAGE
OFFROAD PACKAGE; ROCK WARRIOR PACKAGE
main77602-0C120iUSK51,56..(CMAX,DCB)..S; USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S)201409-201708
OFFROAD PACKAGE&FUEL TANK-38 GALLON; TRD PRO&FUEL TANK-38 GALLON
FUEL TANK-38 GALLON
OFFROAD PACKAGE; TRD PRO
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
OFFROAD PACKAGE; TRD PRO
main77606-0C060iUSK51,56..(CMAX,DCB)..S; USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S)201409-201708
OFFROAD PACKAGE&FUEL TANK-38 GALLON; TRD PRO&FUEL TANK-38 GALLON
77611EPIN, FUEL TANK BAND
main77653-34050×2iUPK5#,USK5#; USK5#; USK51,56..(CMAX,DCB)..S; USK51..HTWCF;USK52,56,57..L,S;USK51..HTWC..(L,S)201409-201708
FUEL TANK-38 GALLON; OFFROAD PACKAGE&FUEL TANK-38 GALLON; TRD PRO&FUEL TANK-38 GALLON
77697INSULATOR, FUEL TANK HEAT, NO.1
FUEL TANK-38 GALLON
77702HOSE SUB-ASSY, CANISTER OUTLET, NO.2
77706FILTER SUB-ASSY, CHARCOAL CANISTER
77740CANISTER ASSY, CHARCOAL
FUEL TANK-38 GALLON
77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77759HOSE, CHARCOAL CANISTER
*H,L=60,MARK=#0
8401SWITCH & RELAY & COMPUTER
9008011373
main90080-11373
90119A0077
main90119-A0077
9015960603
main90159-60603
90178A0049
main90178-A0049
9017906169
main90179-06169
9017908241
main90179-08241
90182A0020
main90182-A0020
9018906010
main90189-06010
9046037004
main90460-37004
9046040007
main90460-40007
9046814032
main90468-14032
91651B0820
main91651-B0820
45 parts on this diagram · 18 diagrams in section
