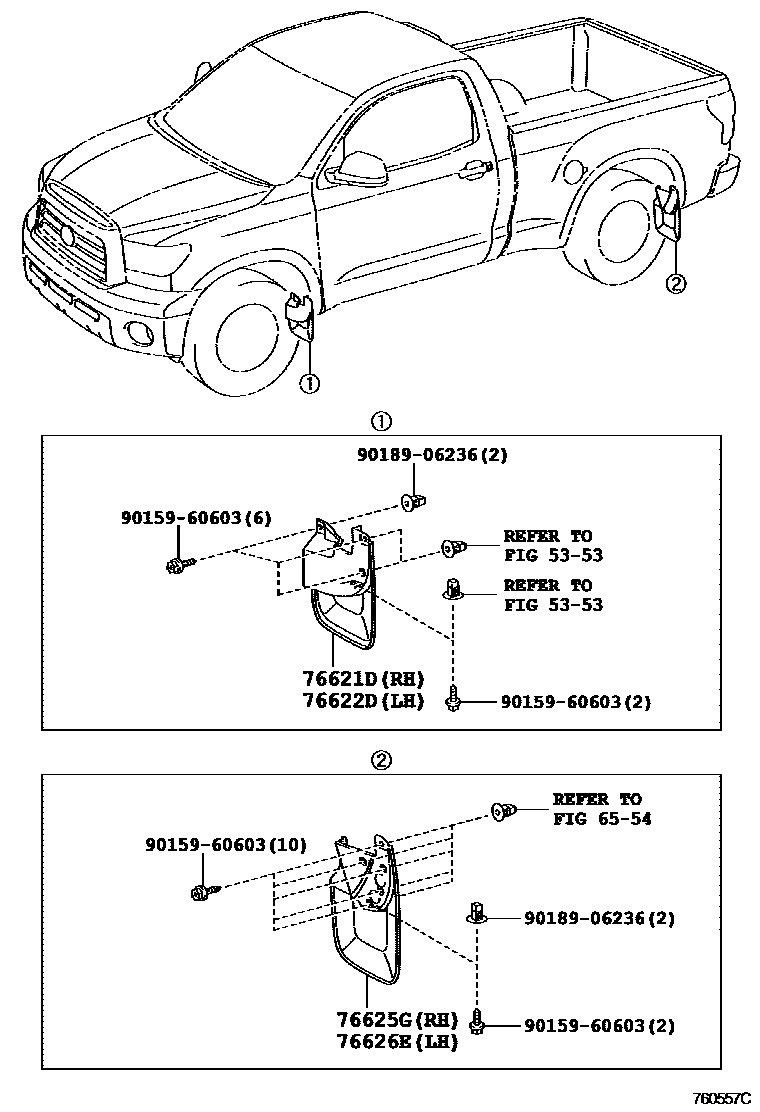

SPOILER & SIDE MUDGUARD

0001 1 0002 1

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

6554REAR BODY SIDE PANEL

→ Go to FIG 65-54

76621DMUDGUARD, FRONT FENDER, RH

main76621-0C040iGSK5#,UCK5#,USK5#200611-200904

MUD GUARD-WITH(FRONT & REAR)

main76621-0C060iGSK51201308-201409

MUD GUARD-WITH(FRONT & REAR)

76622DMUDGUARD, FRONT FENDER, LH

main76622-0C040iGSK5#,UCK5#,USK5#200611-200904

MUD GUARD-WITH(FRONT & REAR)

main76622-0C060iGSK51201308-201409

MUD GUARD-WITH(FRONT & REAR)

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0C060iGSK5#,UCK5#,USK5#200611-200904

MUD GUARD-WITH(FRONT & REAR)

main76625-0C080iGSK51201308-201409

MUD GUARD-WITH(FRONT & REAR)

main76625-0C081iUPK5#,USK5#201607-201708

MUD GUARD-WITH(FRONT & REAR)

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0C060iGSK5#,UCK5#,USK5#200611-200904

MUD GUARD-WITH(FRONT & REAR)

main76626-0C080iGSK51201308-201409

MUD GUARD-WITH(FRONT & REAR)

main76626-0C081iUPK5#,USK5#201607-201708

MUD GUARD-WITH(FRONT & REAR)

9015960603

main90159-60603

9018906236

main90189-06236

8 parts on this diagram · 2 diagrams in section
