SEAT & SEAT TRACK

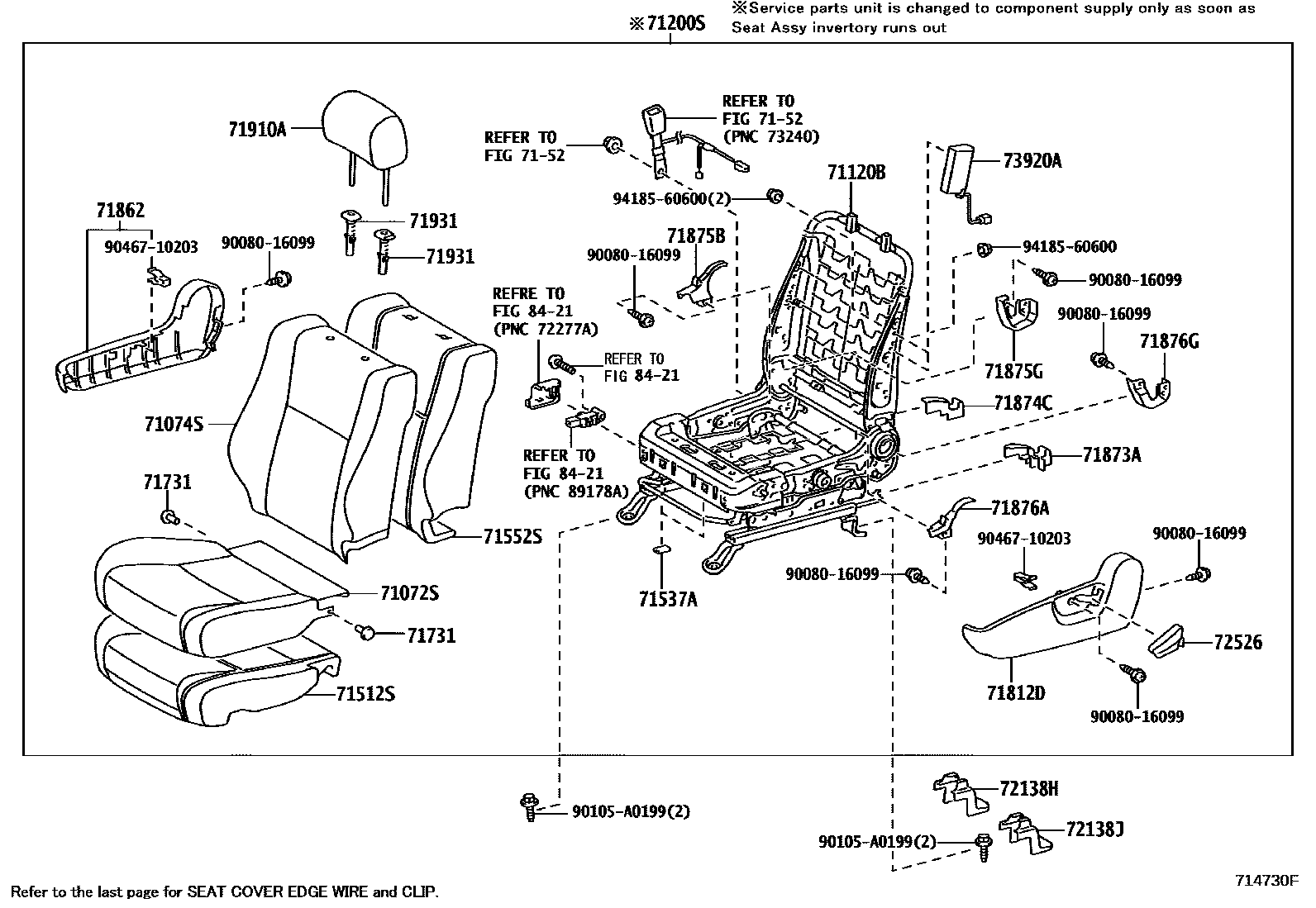

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0C260-C0i200904-201005
BLACK,TRIM2#
main71072-0C260-E2i200904-201005
DX GRADE PKG,SAND BEIGE,TRIM4#
main71072-0C271-B3i200808-200904
GRAY,TRIM1#
main71072-0C271-B4i200904-201002
GRAY,TRIM1#
main71072-0C271-B5i201002-201005
GRAY,TRIM1#
main71072-0C271-E4i200808-200904
SAND BEIGE,TRIM4#
main71072-0C271-E5i200808-200904
REDROCK,TRIM2#
main71072-0C271-E7i200904-201002
REDROCK,TRIM2#
main71072-0C271-E9i200904-201002
SAND BEIGE,TRIM4#
main71072-0C271-L0i201002-201005
SAND BEIGE,TRIM4#
main71072-0C271-L1i201002-201005
REDROCK,TRIM2#
main71072-0C430-B0i200611-200808
GRAY,TRIM1#
main71072-0C430-E0i200611-200808
SAND BEIGE,TRIM4#
main71072-0C430-E1i200611-200808
REDROCK,TRIM2#
main71072-0C450-B2i201308-201408
GRAY,TRIM1#
main71072-0C450-B3i201408-201511
GRAY,TRIM1#
main71072-0C450-C2i201308-201408
BLACK,TRIM2#
main71072-0C450-C3i201408-201511
BLACK,TRIM2#
main71072-0C450-E1i201308-201408
SAND BEIGE,TRIM4#
main71072-0C450-E2i201408-201511
SAND BEIGE,TRIM4#
main71072-0C451-B3i201511-201708
GRAY,TRIM1#
main71072-0C451-C3i201511-201708
BLACK,TRIM2#
main71072-0C451-E2i201511-201708
SAND BEIGE,TRIM4#
main71072-0C453-C6i202008-202110
BLACK,TRIM2#
main71072-0C481i201608-201609
main71072-0C481-B2supersedes 71072-0C470-B2i201609-201708
GRAY,TRIM1#
main71072-0C481-C3supersedes 71072-0C470-C3i201609-201708
BLACK,TRIM2#
main71072-0C481-E2supersedes 71072-0C470-E2i201609-201708
SAND BEIGE,TRIM4#
main71072-0C482-B3i201708-202008
GRAY,TRIM1#
main71072-0C482-C5i201708-202008
BLACK,TRIM2#
main71072-0C482-E3i201708-202008
SAND BEIGE,TRIM4#
main71072-0C483-B4i202008-202110
GRAY,TRIM1#
main71072-0C483-C6i202008-202110
BLACK,TRIM2#
main71072-0C483-E4i202008-202110
SAND BEIGE,TRIM4#
main71072-0C230-B4supersedes 71072-0C260-B2i200611-200904
GRAY,TRIM1#
main71072-0C250-B2supersedes 71072-0C240-B2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71072-0C250-B3supersedes 71072-0C240-B2i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71072-0C250-C2supersedes 71072-0C240-C2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main71072-0C250-C3i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71072-0C250-E2supersedes 71072-0C240-E2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main71072-0C250-E3i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main71072-0C280-B2i200611-200904
NUMBER OF PASSENGER-FRONT:2,GRAY,TRIM1#
main71072-0C280-B3i200904-201308
NUMBER OF PASSENGER-FRONT:2,GRAY,TRIM1#
main71072-0C280-C1i200808-200904
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main71072-0C280-C2i200904-201005
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main71072-0C280-E2i200611-200904
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71072-0C280-E3i200904-201005
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71072-0C290-B2supersedes 71072-0C240-B2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71072-0C290-B3supersedes 71072-0C240-B2i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71072-0C290-C2supersedes 71072-0C240-C2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,BLACK,TRIM2#
main71072-0C290-C3supersedes 71072-0C240-C2i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,BLACK,TRIM2#
main71072-0C290-E2supersedes 71072-0C240-E2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71072-0C290-E3supersedes 71072-0C240-E2i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71072-0C390-B1i200904-201002
WORK TRUCK PACKAGE,GRAY,TRIM1#
main71072-0C390-B2i201002-201308
WORK TRUCK PACKAGE,GRAY,TRIM1#
main71072-0C400-B2i200904-201002
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#
main71072-0C400-B3i201002-201308
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#
main71072-0C400-C1i200904-201002
POWER MEMORY PACKAGE&PLATINUM,BLACK,TRIM20
main71072-0C400-C3i201002-201308
POWER MEMORY PACKAGE&PLATINUM,BLACK,TRIM20
main71072-0C400-E2i200904-201002
POWER MEMORY PACKAGE&PLATINUM,RED ROCK,TRIM21
main71072-0C400-E3i201002-201308
POWER MEMORY PACKAGE&PLATINUM,RED ROCK,TRIM21
main71072-0C440-B2i201308-201408
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71072-0C440-B3i201408-201511
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71072-0C441-B3i201511-201708
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71072-0C442-B3i201708-202008
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71072-0C442-B4i202008-202110
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71072-0C460-B2supersedes 71072-0C240-B2i201308-201408
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71072-0C460-B3i201408-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71072-0C460-C2supersedes 71072-0C240-C2i201308-201408
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C460-C4i201408-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C460-E1supersedes 71072-0C240-E2i201308-201408
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71072-0C460-E2i201408-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71072-0C461-B4supersedes 71072-0C452-B4i201708-201912
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71072-0C461-C5supersedes 71072-0C452-C4i201708-201912
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C461-E3supersedes 71072-0C452-E3i201708-201912
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71072-0C462-B4supersedes 71072-0C453-B4i202001-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71072-0C462-B6supersedes 71072-0C453-B5i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71072-0C462-C5supersedes 71072-0C453-C4i202001-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C462-C8i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM20
main71072-0C462-C9i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C462-E3supersedes 71072-0C453-E3i202001-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71072-0C462-E5supersedes 71072-0C453-E4i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71072-0C480-B1supersedes 71072-0C470-B1i201308-201312
COLD AREA SPEC,GRAY,TRIM1#
main71072-0C480-C2supersedes 71072-0C470-C2i201308-201312
COLD AREA SPEC,BLACK,TRIM2#
main71072-0C480-E1supersedes 71072-0C470-E1i201308-201312
COLD AREA SPEC,SAND BEIGE,TRIM4#
main71072-0C481-B1supersedes 71072-0C470-B1i201401-201408
COLD AREA SPEC,GRAY,TRIM1#
main71072-0C481-C2supersedes 71072-0C470-C2i201401-201408
COLD AREA SPEC,BLACK,TRIM2#
main71072-0C481-E1supersedes 71072-0C470-E1i201401-201408
COLD AREA SPEC,SAND BEIGE,TRIM4#
main71072-0C500-E0supersedes 71072-0C491-C0i201308-201312
1794 EDITION,BROWN,TRIM2#
main71072-0C501-E0supersedes 71072-0C491-C0i201401-201407
1794 EDITION,BROWN,TRIM2#
main71072-0C502-E1supersedes 71072-0C491-C1i201408-201708
1794 EDITION,BROWN,TRIM2#
main71072-0C503-E1supersedes 71072-0C492-C1i201708-202008
WESTERN PACKAGE,BROWN,TRIM2#
main71072-0C503-E2supersedes 71072-0C492-C2i202008-202110
WESTERN PACKAGE,BROWN,TRIM2#
main71072-0C510-C1i201409-201609
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C520-C0i201609-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C521-C0i201708-201808
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71072-0C530-C0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:POWER SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71072-0C531-C1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:POWER SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71072-0C540-B0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,GRAY,TRIM1#
main71072-0C540-C0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71072-0C540-E0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,SAND BEIGE,TRIM4#
main71072-0C541-B1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,GRAY,TRIM1#
main71072-0C541-C1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71072-0C541-E1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,SAND BEIGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0C380-E2i200611-200808
SAND BEIGE,TRIM4#
main71074-0C381-C2i200904-201005
BLACK,TRIM2#
main71074-0C381-E2i200904-201005
SAND BEIGE,TRIM4#
main71074-0C410-B0i200611-200808
GRAY,TRIM1#
main71074-0C410-E0i200611-200808
SAND BEIGE,TRIM4#
main71074-0C410-E1i200611-200808
REDROCK,TRIM2#
main71074-0C411-B0i200904-201005
GRAY,TRIM1#
main71074-0C411-E0i200808-200904
SAND BEIGE,TRIM4#
main71074-0C411-E1i200808-200904
REDROCK,TRIM2#
main71074-0C770-B2i201308-201708
GRAY,TRIM1#
main71074-0C770-C2i201308-201708
BLACK,TRIM2#
main71074-0C770-E1i201308-201708
SAND BEIGE,TRIM4#
main71074-0C771-C5i202008-202110
BLACK,TRIM2#
main71074-0C801-B0supersedes 71074-0C790-B0i201508-201708
GRAY,TRIM1#
main71074-0C801-C1supersedes 71074-0C790-C1i201508-201708
BLACK,TRIM2#
main71074-0C801-E0supersedes 71074-0C790-E0i201508-201708
SAND BEIGE,TRIM4#
main71074-0C802-B1i201708-202008
GRAY,TRIM1#
main71074-0C802-B2i202008-202110
GRAY,TRIM1#
main71074-0C802-C3i201708-202008
BLACK,TRIM2#
main71074-0C802-C4i202008-202110
BLACK,TRIM2#
main71074-0C802-E1i201708-202008
SAND BEIGE,TRIM4#
main71074-0C802-E2i202008-202110
SAND BEIGE,TRIM4#
main71074-0C390-B2i200611-200808
NUMBER OF PASSENGER-FRONT:2,GRAY,TRIM1#
main71074-0C390-E2i200611-200808
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71074-0C391-B2i200911-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71074-0C391-C1i200911-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71074-0C391-E2i200904-201308
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71074-0C440-B2i200703-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71074-0C440-C2supersedes 71074-0C610-C0i200611-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main71074-0C440-E2i200703-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,SAND BEIGE,TRIM4#
main71074-0C441-B2i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71074-0C441-C2i200808-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71074-0C441-E2i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main71074-0C450-B2supersedes 71074-0C380-B3i200611-200808
GRAY,TRIM1#
main71074-0C451-B2supersedes 71074-0C381-B3i200904-201005
GRAY,TRIM1#
main71074-0C600-B1supersedes 71074-0C610-B0i200703-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71074-0C600-C1supersedes 71074-0C610-C0i200611-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,BLACK,TRIM2#
main71074-0C600-E1supersedes 71074-0C610-E0i200611-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C601-B1supersedes 71074-0C611-B0i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71074-0C601-C1supersedes 71074-0C611-C0i200808-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71074-0C601-E1supersedes 71074-0C611-E0i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C603-B1supersedes 71074-0C381-B3i200911-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C603-C1supersedes 71074-0C381-C2i200911-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71074-0C603-E1supersedes 71074-0C381-E2i200911-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C700-B0i201708-202008
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71074-0C700-B1i202008-202110
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71074-0C710-B0i200904-201005
WORK TRUCK PACKAGE,GRAY,TRIM1#
main71074-0C720-B0i200904-201308
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#
main71074-0C720-C0i200904-201308
POWER MEMORY PACKAGE&PLATINUM,BLACK,TRIM20
main71074-0C720-E0i200904-201308
POWER MEMORY PACKAGE&PLATINUM,RED ROCK,TRIM21
main71074-0C780-B2i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71074-0C780-B3supersedes 71074-0C770-B3i201708-201912
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71074-0C780-C2i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71074-0C780-C4supersedes 71074-0C770-C3i201708-201912
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71074-0C780-E1i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71074-0C780-E2supersedes 71074-0C770-E2i201708-201912
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71074-0C781-B3supersedes 71074-0C771-B3i202001-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71074-0C781-B5supersedes 71074-0C771-B4i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,GRAY,TRIM1#
main71074-0C781-C4supersedes 71074-0C771-C3i202001-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71074-0C781-C7i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM20
main71074-0C781-C8i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71074-0C781-E2supersedes 71074-0C771-E2i202001-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71074-0C781-E4supersedes 71074-0C771-E3i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,SAND BEIGE,TRIM4#
main71074-0C800-B0supersedes 71074-0C411-B0i201308-201312
COLD AREA SPEC,GRAY,TRIM1#
main71074-0C800-C1supersedes 71074-0C411-E1i201308-201312
COLD AREA SPEC,BLACK,TRIM2#
main71074-0C800-E0supersedes 71074-0C411-E0i201308-201312
COLD AREA SPEC,SAND BEIGE,TRIM4#
main71074-0C820-E0supersedes 71074-0C810-C0i201308-201312
1794 EDITION,BROWN,TRIM2#
main71074-0C821-E0supersedes 71074-0C811-C0i201708-202008
WESTERN PACKAGE,BROWN,TRIM2#
main71074-0C821-E1supersedes 71074-0C811-C1i202008-202110
WESTERN PACKAGE,BROWN,TRIM2#
main71074-0C870-C0i201409-201609
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK WITH RED ACCENT,TRIM2#
main71074-0C880-C0i201508-201609
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & VINYL LEATHER,BLACK,TRIM2#
main71074-0C881-C0i201708-201808
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71074-0C890-C0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:POWER SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71074-0C890-C1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:POWER SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71074-0CA00-B0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,GRAY,TRIM1#
main71074-0CA00-B1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,GRAY,TRIM1#
main71074-0CA00-C0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71074-0CA00-C1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
main71074-0CA00-E0i201908-202008
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,SAND BEIGE,TRIM4#
main71074-0CA00-E1i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,SAND BEIGE,TRIM4#
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-0C180i200611-200904
main71120-0C181i200904-201005
WORK TRUCK PACKAGE
main71120-0C190i200611-200904
main71120-0C191i200904-201308
sub71120-0C192
sub73214-0E010
main71120-0C280i201308-201405
main71120-0C281i201405-201708
main71120-0C330supersedes 71120-0C231i201308-201405
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT
main71120-0C331supersedes 71120-0C281i201405-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT
main71120-0C340i201308-201405
main71120-0C341i201405-201708
main71120-0C170supersedes 71120-0C230i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
main71120-0C171supersedes 71120-0C231i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
sub71120-0C172
sub73214-0E010
main71120-0C250supersedes 71120-0C230i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE
main71120-0C251supersedes 71120-0C231i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE
sub71120-0C252
sub73214-0E010
main71120-0C261i200904-201308
POWER MEMORY PACKAGE&PLATINUM
sub71120-0C262
sub73214-0E010
71200SSEAT ASSY, FRONT LH
main71200-0C600-E5i200611-200808
SAND BEIGE,TRIM4#
main71200-0C601-E0i200808-200904
SAND BEIGE,TRIM4#
main71200-0CD00-C0i200904-200911
BLACK,TRIM2#
main71200-0CD00-E0i200904-200911
SAND BEIGE,TRIM4#
main71200-0CD21-C0i200911-201308
BLACK,TRIM2#
main71200-0CD21-E0i200911-201005
DX GRADE PKG,SAND BEIGE,TRIM4#
main71200-0C500-B5supersedes 71200-0C700-B6i200611-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71200-0C500-C5supersedes 71200-0C700-C6i200611-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main71200-0C500-E5i200703-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,SAND BEIGE,TRIM4#
main71200-0C501-B0supersedes 71200-0C701-B0i200808-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71200-0C501-C0i200808-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0C501-E0i200808-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main71200-0C540-B6supersedes 71200-0C530-B6i200611-200808
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0C540-C3supersedes 71200-0C530-C3i200611-200808
POWER MEMORY PACKAGE,RED ROCK / BLACK,TRIM2#
main71200-0C540-E6supersedes 71200-0C530-E6i200611-200808
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
main71200-0C541-B0supersedes 71200-0CC00-B0i200808-200810
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0C541-C0supersedes 71200-0CC00-C0i200808-200810
POWER MEMORY PACKAGE,RED ROCK/BLACK,TRIM2#
main71200-0C541-E0supersedes 71200-0CC00-E0i200808-200810
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
main71200-0C590-B5i200611-200808
NUMBER OF PASSENGER-FRONT:2,GRAY,TRIM1#
main71200-0C590-E5i200611-200808
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71200-0C591-B0i200808-200904
NUMBER OF PASSENGER-FRONT:2,GRAY,TRIM1#
main71200-0C591-C0i200808-200904
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main71200-0C591-E0i200808-200904
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71200-0C740-B5supersedes 71200-0C700-B6i200703-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71200-0C740-C5supersedes 71200-0C700-C6i200703-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0C740-E5supersedes 71200-0C700-E6i200703-200808
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,SAND BEIGE,TRIM4#
main71200-0C741-B0i200808-200810
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71200-0C741-C0i200808-200810
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0C741-E0supersedes 71200-0C701-E0i200808-200810
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71200-0C750-B5supersedes 71200-0C600-B7i200611-200808
GRAY,TRIM1#
main71200-0C751-B0supersedes 71200-0C601-B0i200808-200904
GRAY,TRIM1#
main71200-0CC10-B0supersedes 71200-0CC00-B0i200810-200904
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0CC10-C0supersedes 71200-0CC00-C0i200810-200904
POWER MEMORY PACKAGE,BLACK,TRIM2#
main71200-0CC10-E0supersedes 71200-0CC00-E0i200810-200904
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
main71200-0CC20-B0supersedes 71200-0C701-B0i200810-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71200-0CC20-C0supersedes 71200-0C701-C0i200810-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0CC20-E0supersedes 71200-0C701-E0i200810-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71200-0CC80-B1i200904-200911
WORK TRUCK PACKAGE,GRAY,TRIM1#
main71200-0CC80-B2i200911-201002
WORK TRUCK PACKAGE,GRAY,TRIM1#
main71200-0CC80-B3i201002-201005
WORK TRUCK PACKAGE,GRAY,TRIM1#
main71200-0CC90-B0supersedes 71200-0CD00-B0i200904-200911
GRAY,TRIM1#
main71200-0CC90-B1supersedes 71200-0CD21-B0i200911-201005
GRAY,TRIM1#
main71200-0CD10-B1i200904-200911
NUMBER OF PASSENGER-FRONT:2,GRAY,TRIM1#
main71200-0CD10-B2i200911-201005
NUMBER OF PASSENGER-FRONT:2,GRAY,TRIM1#
main71200-0CD10-C1i200904-200911
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main71200-0CD10-C2i200911-201005
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main71200-0CD10-E1i200904-200911
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71200-0CD10-E2i200911-201005
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71200-0CD20-B0i200904-200911
DX GRADE PKG,GRAY,TRIM1#
main71200-0CD20-C0i200904-200911
DX GRADE PKG,BLACK,TRIM2#
main71200-0CD20-E0i200904-200911
DX GRADE PKG,SAND BEIGE,TRIM4#
main71200-0CD30-B1supersedes 71200-0CD60-B0i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71200-0CD30-C1supersedes 71200-0CD60-C0i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0CD30-E1i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main71200-0CD31-B0supersedes 71200-0CD61-B0i200911-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71200-0CD31-C0supersedes 71200-0CD61-C0i200911-201008
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0CD31-E0supersedes 71200-0CD61-E0i200911-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main71200-0CD50-B1supersedes 71200-0CD40-B1i200904-200911
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0CD50-C1supersedes 71200-0CD40-C1i200904-200911
POWER MEMORY PACKAGE,SAND BEIGE,TRIM2#
main71200-0CD50-E3supersedes 71200-0CD40-E3i200904-200911
POWER MEMORY PACKAGE,RED ROCK,TRIM4#
main71200-0CD51-B0supersedes 71200-0CD41-B0i200911-201002
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0CD51-B1supersedes 71200-0CD41-B1i201002-201008
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0CD51-C0supersedes 71200-0CD41-C0i200911-201002
POWER MEMORY PACKAGE,SAND BEIGE,TRIM2#
main71200-0CD51-C1supersedes 71200-0CD41-C1i201002-201008
POWER MEMORY PACKAGE,SAND BEIGE,TRIM2#
main71200-0CD51-E0supersedes 71200-0CD41-E0i200911-201002
POWER MEMORY PACKAGE,RED ROCK,TRIM4#
main71200-0CD51-E1supersedes 71200-0CD41-E1i201002-201005
POWER MEMORY PACKAGE,RED ROCK,TRIM4#
main71200-0CD70-B1supersedes 71200-0CD60-B0i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71200-0CD70-C1supersedes 71200-0CD60-C0i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0CD70-E1supersedes 71200-0CD60-E0i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71200-0CD71-B0supersedes 71200-0CD61-B0i200911-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71200-0CD71-C0supersedes 71200-0CD61-C0i200911-201008
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71200-0CD71-E0supersedes 71200-0CD61-E0i200911-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71200-0CD80-B1i200904-200911
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#
main71200-0CD80-C3i200904-200911
POWER MEMORY PACKAGE&PLATINUM,RED ROCK,TRIM2#
main71200-0CD81-B0i200911-201002
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#
main71200-0CD81-B1i201002-201008
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#
main71200-0CD81-C0i200911-201002
POWER MEMORY PACKAGE&PLATINUM,BLACK,TRIM20
main71200-0CD81-C1i200911-201002
POWER MEMORY PACKAGE&PLATINUM,RED ROCK,TRIM21
main71200-0CD81-C2i201002-201008
POWER MEMORY PACKAGE&PLATINUM,BLACK,TRIM20
main71200-0CD81-C3i201002-201008
POWER MEMORY PACKAGE&PLATINUM,REDROCK,TRIM21
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0C040i200611-200904
main71512-0C080i200611-200809
main71512-0C081i200904-201005
main71512-0C110i201308-201511
main71512-0C111i201511-201708
main71512-0C140supersedes 71512-0C111i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT
main71512-0C150i201708-202110
main71512-0C060i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3
main71512-0C090i200611-200904
NUMBER OF PASSENGER-FRONT:2
main71512-0C100supersedes 71512-0C050i200703-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
main71512-0C130i200904-201308
POWER MEMORY PACKAGE&PLATINUM
7152
71537APROTECTOR, FRONT SEAT CUSHION
main71537-AA020×2i200611-200904
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0C150i200904-201005
main71552-0C160i200808-200904
main71552-0C170i200611-200808
main71552-0C230i201308-201708
main71552-0C240supersedes 71552-0C230i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT
main71552-0C260i201708-202110
main71552-0C250i200904-201308
POWER MEMORY PACKAGE&PLATINUM
71731FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)
main71731-0C010×4i200611-200904
71812DSHIELD, FRONT SEAT CUSHION, LH
main71806-0C040-B0i200611-200810
GRAY,TRIM1#
main71806-0C040-C0i200611-200810
BLACK,TRIM2#
main71806-0C040-E0i200611-200810
SAND BEIGE,TRIM4#
main71806-0C060-B0i200810-200904
GRAY,TRIM1#
main71806-0C060-C0i200810-200904
BLACK,TRIM2#
main71806-0C060-E0i200904-201308
SAND BEIGE,TRIM4#
main71812-0C100-B0i200904-201005
WORK TRUCK PACKAGE,GRAY,TRIM1#
main71812-0C100-C0i200904-201005
BLACK,TRIM2#
main71812-0C100-E0i200904-201005
WORK TRUCK PACKAGE,SAND BEIGE,TRIM4#
main71812-0C170-C0i201308-201403
BLACK,TRIM1#,2#,4#
main71812-0C171-C0i201403-201708
BLACK,TRIM1#,2#,4#
main71812-0C210-C0i201308-201403
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#,4#
main71812-0C211-C0i201403-201705
NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#,4#
main71812-0C212-C0supersedes 71812-0C171-C0i201706-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#,4#
main71812-0C220-C0i201308-201403
BLACK,TRIM2#
main71812-0C221-C0i201403-201705
BLACK,TRIM2#
main71812-0C222-C0i201708-202110
BLACK,TRIM2#
main71806-0C050-B0i200703-200810
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71806-0C050-C0i200703-200810
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71806-0C050-E0supersedes 71812-0C150-E0i200611-200810
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71806-0C070-B0supersedes 71812-0C150-B0i200810-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71806-0C070-C0i200810-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71806-0C070-E0supersedes 71812-0C150-E0i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71812-0C110-B0supersedes 71812-0C150-B0i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71812-0C110-C0supersedes 71812-0C150-C0i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71812-0C110-E0supersedes 71812-0C150-E0i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0C070-B0i200611-200904
GRAY,TRIM1#
main71862-0C070-C0i200904-201005
BLACK,TRIM2#
main71862-0C070-E0i200904-201308
SAND BEIGE,TRIM4#
main71862-AA080-B3supersedes 71862-0C080-B0i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
main71862-AA080-C0supersedes 71862-0C080-C0i200611-200904
BLACK,TRIM2#
main71862-AA080-E1supersedes 71862-0C080-E0i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-0C060-C0i200904-201005
BLACK
main71873-0C120i201608-201609
main71873-0C120-C0supersedes 71873-0C120-C0i201308-201608
BLACK,TRIM1#,2#,4#
main71874-06070-C0i200904-201308
BLACK
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-0C060-C0i200904-201308
BLACK
main71873-0C100i201608-201609
main71873-0C100-C0i201308-201608
BLACK,TRIM1#,2#,4#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06070-C0i200904-201308
BLACK
main71874-0C030-C0i200904-201005
BLACK
main71874-0C080i201608-201609
main71874-0C080-C0supersedes 71874-0C080-C0i201308-201708
BLACK,TRIM2#
71874CSHIELD, FRONT SEAT CUSHION, LOWER
main71874-0C030-C0i200904-201308
BLACK
main71874-0C060i201608-201609
main71874-0C060-C0i201708-202110
BLACK,TRIM2#
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-AD020-B0i200904-201308
GRAY,TRIM1#
main71875-AD020-C0i200904-201308
BLACK,TRIM2#
main71875-AD020-E1i200904-201308
SAND BEIGE,TRIM4#
main71876-AA090-B5i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71876-AA090-C0supersedes 71875-AD020-C0i200904-201005
BLACK,TRIM2#
main71876-AA090-E2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71814-0E020i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
main71875-AA060i200904-201308
main71813-0E020i200703-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-AA090-B3i200611-200904
GRAY,TRIM1#
main71875-AA090-C0i200904-201005
BLACK,TRIM2#
main71875-AA090-E2i200904-201005
SAND BEIGE,TRIM4#
main71876-AD020-B0i200611-200904
GRAY,TRIM1#
main71876-AD020-C0i200904-201005
BLACK,TRIM2#
main71876-AD020-E1i200611-200904
SAND BEIGE,TRIM4#
main71875-0E010-B3i200904-201005
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71875-0E010-C0i200904-201005
POWER MEMORY PACKAGE,BLACK,TRIM2#
main71875-0E010-E2i200904-201308
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71875-0E020-B5i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main71875-0E020-C0supersedes 71876-AD020-C0i200904-201308
BLACK,TRIM2#
main71875-0E020-E2i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71876-AD020-B0i200904-201005
GRAY,TRIM1#
main71876-AD020-C0i200904-201308
BLACK,TRIM2#
main71876-AD020-E1i200904-201308
SAND BEIGE,TRIM4#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71813-0E020i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE
main71876-AA060i200611-200904
main71814-0E020i200703-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
71910AHEADREST ASSY, FRONT SEAT
main71910-0C110-B0supersedes 71910-0C110-B0i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,GRAY,TRIM1#
main71910-0C110-C0×2supersedes 71910-0C110-C0i200904-201308
BLACK,TRIM2#,LH
main71910-0C110-E0supersedes 71910-0C110-E0i200611-200904
NUMBER OF PASSENGER-FRONT:2,SAND BEIGE,TRIM4#
main71910-0C210-B0×2i200611-200904
GRAY,TRIM1#
main71910-0C210-E0×2i200904-200911
SAND BEIGE,TRIM4#
main71910-0C210-E1×2i200904-200911
REDROCK,TRIM2#
main71910-0C211-B2×2i200911-201308
GRAY,TRIM1#
main71910-0C211-E4×2i200911-201308
REDROCK,TRIM2#
main71910-0C211-E5×2i200911-201308
SAND BEIGE,TRIM4#
main71910-0C230-B0i200904-201308
GRAY,TRIM1#,CENTER
main71910-0C230-C0i200904-201308
BLACK,TRIM2#,CENTER
main71910-0C230-E0i200611-200904
SAND BEIGE,TRIM4#,CENTER
main71910-0C370×2i201608-201609
main71910-0C370-B0×2i201308-201608
GRAY,TRIM1#
main71910-0C370-B2×2i202008-202110
GRAY,TRIM1#
main71910-0C370-C0×2i201708-202008
BLACK,TRIM2#
main71910-0C370-C1×2i202008-202110
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71910-0C370-E0×2i201308-201608
SAND BEIGE,TRIM4#
main71910-0C370-E1×2i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,SAND BEIGE,TRIM4#
main71910-0C390-B1×2i201708-202008
GRAY,TRIM1#
main71910-0C390-B3×2i202008-202110
GRAY,TRIM1#
main71910-0C390-C1×2i201308-201708
BLACK,TRIM2#
main71910-0C390-C3×2i202008-202110
BLACK,TRIM2#
main71910-0C390-C4×2i202008-202110
BLACK,TRIM20
main71910-0C390-E1×2i201708-202008
SAND BEIGE,TRIM4#
main71910-0C390-E3×2i202008-202110
SAND BEIGE,TRIM4#
main71910-0C080-B0×2supersedes 71910-0C110-B0i200904-201308
GRAY,TRIM1#,RH
main71910-0C220-B0supersedes 71910-0C110-B0i200904-201308
GRAY,TRIM1#,CENTER
main71910-0C240-B0×2supersedes 71910-0C110-B0i201008-201308
WORK TRUCK PACKAGE,GRAY,TRIM1#,RH
main71910-0C350-B0supersedes 71910-0C230-B0i200904-201308
WORK TRUCK PACKAGE,GRAY,TRIM1#,CENTER
main71910-0C360-B0×2i200904-200911
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#,RH
main71910-0C360-C0×2i200904-200911
POWER MEMORY PACKAGE&PLATINUM,BLACK,TRIM20,RH
main71910-0C360-E0×2i200904-200911
POWER MEMORY PACKAGE&PLATINUM,REDROCK,TRIM21,RH
main71910-0C361-B1×2i200911-201308
POWER MEMORY PACKAGE&PLATINUM,GRAY,TRIM1#,RH
main71910-0C361-C1×2i200911-201308
POWER MEMORY PACKAGE&PLATINUM,BLACK,TRIM20,RH
main71910-0C361-E1×2i200911-201308
POWER MEMORY PACKAGE&PLATINUM,RED ROCK,TRIM21,RH
main71910-0C370-B1×2i202008-202110
LOW PACKAGE&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM13
main71910-0C420-E1×2supersedes 71910-0C410-C1i201308-201708
1794 EDITION,BROWN,TRIM2#
main71910-0C420-E2×2supersedes 71910-0C410-C2i202008-202110
WESTERN PACKAGE,BROWN,TRIM2#
main71910-0C430-C0×2i201409-201609
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71910-0C440-C0×2i201708-201808
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71910-0C440-C1×2i202008-202110
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:POWER SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-06050×2i201608-201609
W(LOCK)
main71930-06050-C0×2i201308-201708
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-06050-C1×2i202008-202110
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-42020-B8×3i200904-201007
W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,GRAY,TRIM1#
sub71930-52030
main71930-42020-C0×2i200611-200904
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-52030
main71930-42020-E3×2i200611-200904
W(LOCK)&W(BUTTON),NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
sub71930-52030
main71930-44020-B7×2i201008-201308
W(LOCK),GRAY,TRIM1#
sub71930-02370
main71930-44020-C0×2i201008-201308
W(LOCK),NUMBER OF PASSENGER-FRONT:2 REAR:3&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
sub71930-02370
main71930-44020-E2×3i201008-201308
W(LOCK),NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
sub71930-02370
main71931-06040×2i201608-201609
W/O(LOCK)
main71931-06040-C0×2i201308-201608
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-06040-C1×2i202008-202110
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-42020-B8×3i200904-201005
W(LOCK)&W/O(BUTTON),POWER MEMORY PACKAGE,GRAY,TRIM1#
main71931-42020-C0×2supersedes 71931-42020-C0i200611-200904
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
main71931-42020-E3×3i200904-201007
W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4#
main71931-47010-C0×3i201008-201308
W/O(LOCK),NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM2#
main71931-47010-E8×2i201008-201308
W/O(LOCK),SAND BEIGE,TRIM4#
main71931-47010-P2×3i201008-201308
W/O(LOCK),NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72137-0C410-B0i200611-200808
GRAY,TRIM1#
main72137-0C410-C0i200904-201005
BLACK,TRIM13,2#
main72137-0C410-E0i200611-200808
SAND BEIGE,TRIM4#
main72138-0C040-B0supersedes 72137-0C410-B0i200904-201107
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM13
main72138-0C040-C0supersedes 72137-0C410-C0i200904-201107
BLACK,TRIM13,2#,44
main72138-0C040-E0supersedes 72137-0C410-E0i200904-201107
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM44
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-0C010-B0i200611-200808
GRAY,TRIM1#
main72138-0C010-C0i200904-201005
BLACK,TRIM13,2#
main72138-0C010-E0i200611-200808
SAND BEIGE,TRIM4#
main72138-0C030-B0supersedes 72138-0C010-B0i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,GRAY,TRIM1#
main72138-0C030-C0supersedes 72138-0C010-C0i200611-200904
BLACK,TRIM2#
main72138-0C030-E0supersedes 72138-0C010-E0i200904-201107
NUMBER OF PASSENGER-FRONT:2 REAR:3&POWER SEAT PACKAGE,SAND BEIGE,TRIM44
main72138-0C080-C0supersedes 72138-0C090-C0i201708
BLACK,TRIM1#,2#,4#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06020-B1i200611-200904
GRAY,TRIM1#
main72526-06020-C0i200904-201005
BLACK,TRIM2#
main72526-06020-E1i200904-201005
SAND BEIGE,TRIM4#
main72526-0C030-B0supersedes 72526-06020-B1i200904-201308
WORK TRUCK PACKAGE,GRAY,TRIM1#
main72526-0C030-C0i200904-201005
BLACK,TRIM2#
main72526-0C030-E0i200904-201005
WORK TRUCK PACKAGE,SAND BEIGE,TRIM4#
main72526-0C040-C0i201308-201708
BLACK,TRIM1#,2#,4#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0C040i200611-200904
main73920-0C050i201308-201410
main73920-0C051i201411-201601
main73920-0C052i201602-201708
main73920-0C060i200904-201203
POWER MEMORY PACKAGE&PLATINUM
main73920-0C061i201204-201308
POWER MEMORY PACKAGE&PLATINUM
8421
9008016099
main90080-16099
90105A0199
main90105-A0199
9046710203
main90467-10203
9418560600
main94185-60600

31 parts on this diagram · 29 diagrams in section
