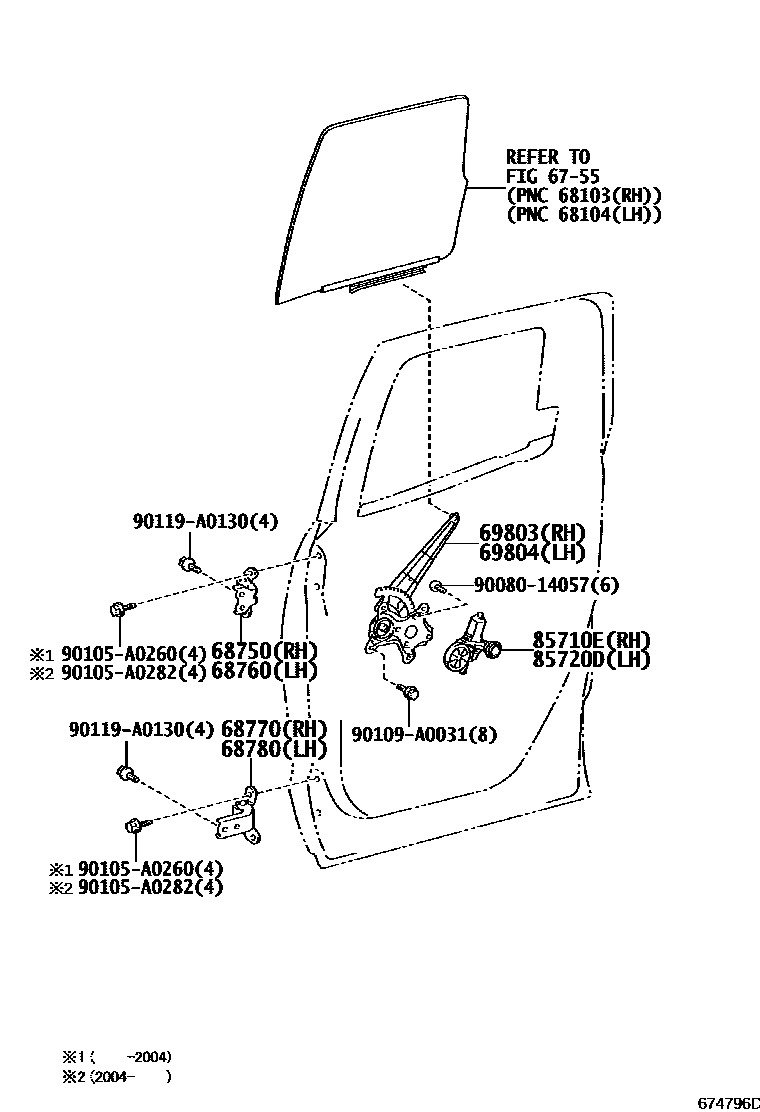

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0C020iUPK5#,USK5#..CMAX,DCB201308-201708

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0C020iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-04010iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-04010iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-0C030iUPK5#,USK51,56..CMAX201308-201708

main69803-0C030iUSK5#..DCB..HTWC201708

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-0C030iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201308

main69804-0C030iUPK52,57;UPK51,56..DCB..L200904-201005

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AE010iUPK5#..CMAX;USK56..CMAX..HTWCF201708-201907

main85720-AE010iGSK51..DCB201308-201409

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-AE010iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200904

main85720-AE010iUCK51,56,USK51,56..CMAX200703-200904

9008014057

main90080-14057

90105A0260

main90105-A0260

90105A0282

main90105-A0282

90109A0031

main90109-A0031

90119A0130

main90119-A0130

14 parts on this diagram · 2 diagrams in section
