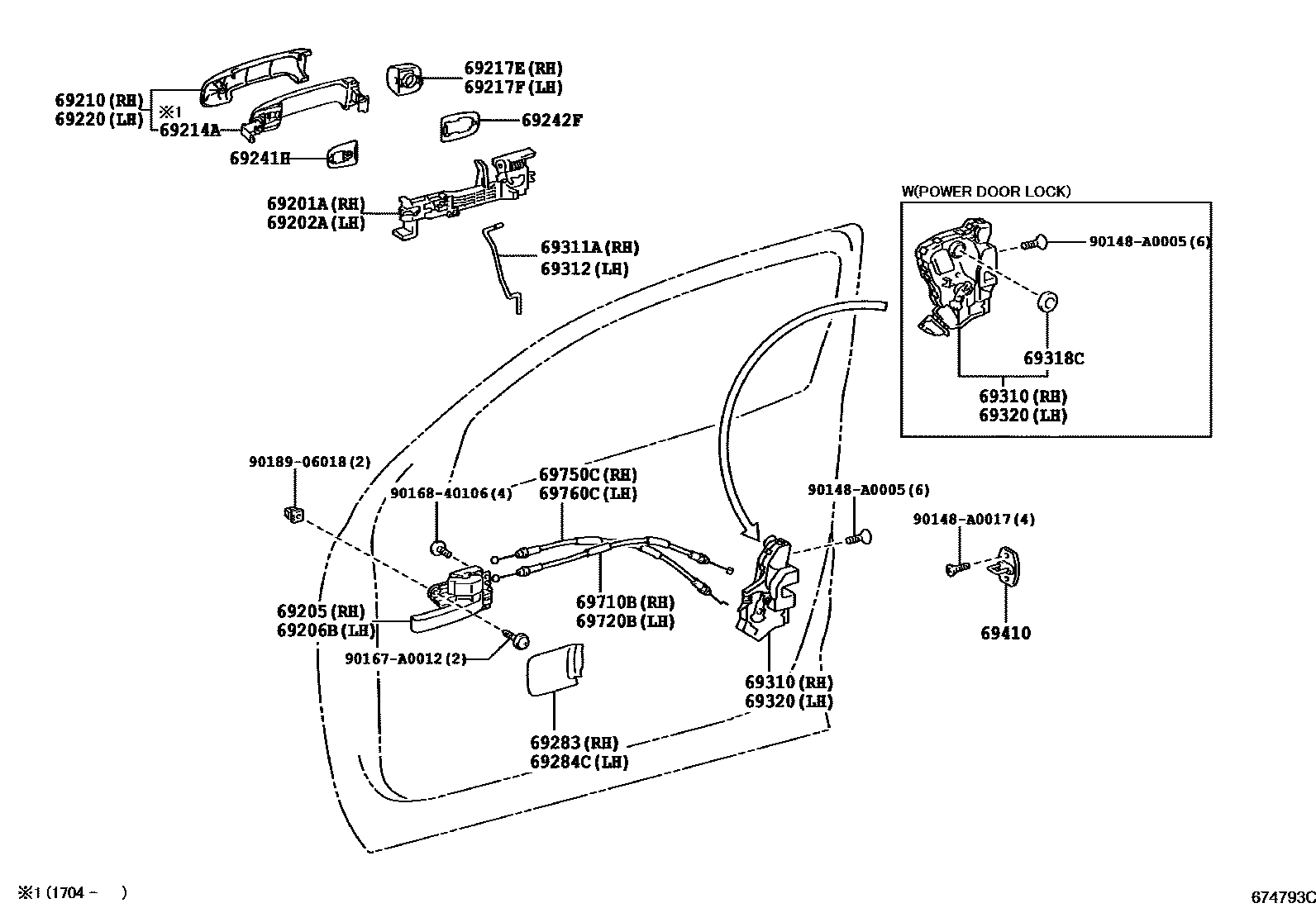

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0C010iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201308

main69201-0C011iUSK5#201908

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0C010iGSK51201308-201409

main69202-0C011iUSK5#201908

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0C020iUCK51,56,USK51,56..L200611-200904

main69205-0C040supersedes 69205-0C020iGSK5#,UCK5#,USK5#..SR5200611-200904

main69205-0C070iUSK51,56..HTWC..Z201708

main69205-0C060iUSK51,56..CMAX..L200904-201308

PLATINUM

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0C020iUSK51,56..L200904-201308

main69206-0C040supersedes 69206-0C020iGSK5#,UCK5#,USK5#..SR5200611-200904

main69206-0C070iUSK51,56..Z201308-201708

main69206-0C060iUSK51,56..CMAX..L200904-201308

PLATINUM

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0C010iUPK5#,USK5#..S201708

NO PAINT REQ.

main69210-0C020iUPK51,56..L200904-201005

PLATED

main69210-0C040-A0iUSK51,56..L,Z201908

SUPER WHITE 2,040

main69210-0C040-A2iUSK51,56..L,Z202008

PLATINUM WHITE PEARL MC.,089

main69210-0C040-B0iUSK51,56..L,Z201908

SILVER ME.,1D6

main69210-0C040-B1iUSK51,56..L,Z201908

GRAY ME.,1G3

main69210-0C040-B2iUSK51,56..L201908

CEMENT GRAY ME.,1H5

main69210-0C040-C0iUSK51,56..L,Z201908

ATTITUDE BLACK MC.,218

main69210-0C040-D0iUSK51,56..L,Z201908

RED M.M.,3R3

main69210-0C040-E0iUSK51,56..L201908-202008

BEIGE,4V6

main69210-0C040-E2iUSK51,56..L,Z201908

VINTAGE BROWN PEARL CS.,4X4

main69210-0C040-G0iUSK51,56..L,Z202008

DK.GREEN,6V7

main69210-0C040-J0iUSK51,56..L,Z201908

BLUE,8T6

main69210-0C040-J1iUSK51,56..L201908

GRAYISH BLUE,8W2

main69210-0C030-C0iUSK50200904-201005

ROAD WARRIOR PACKAGE,BLACK,202

main69210-0C030-D1iUSK50;USK51..DCB..S200808-200904

ROAD WARRIOR PACKAGE,RED,3L5

main69210-0C060-C0iUSK51,56..L202008

NIGHTSHADE,ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218

main69210-0C070iUSK5#..S201908

NO PAINT REQ.,STARTING SYSTEM-PUSH BUTTON

69214AHANDLE, DOOR OUTSIDE, NO.2

main69214-0C010×2iUPK5#,USK5#201704-201708

main69214-0C020×2iUSK5#..S; USK51,56..L,Z201908

STARTING SYSTEM-PUSH BUTTON

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0C030iUPK5#,USK5#..S201708

BLACK

main69217-0C040iUSK51,56..L,Z201308-201708

*CR

main69217-0C010iUPK51,55,56,USK50..D; UPK52,57200904-201005

BLACK; BLACK,WIRELESS DOOR LOCK-WITHOUT; BLACK,WORK TRUCK PACKAGE

main69217-0C060-C0iUSK51..DCB..S200904-201308

ROAD WARRIOR PACKAGE,BLACK,202

main69217-0C060-C1iUSK51,56..L202008

NIGHTSHADE,ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218

main69217-0C060-D1iUSK51..DCB..S200904-201308

ROAD WARRIOR PACKAGE,RED,3L5

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-0C010iGSK51201308-201409

BLACK

main69217-0C020iUSK51,56..L,Z201708-201908

*CR

main69217-0C070iUSK51,56..L,Z201908

*CR

main69217-0C050-C0iUSK50;USK51..DCB..S200808-200904

ROAD WARRIOR PACKAGE,BLACK,202

main69217-0C050-D1iUSK50200904-201005

ROAD WARRIOR PACKAGE,RED,3L5

main69217-0C080-C0iUSK51,56..L202008

NIGHTSHADE,ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218

main69217-0C090iUSK5#..S201908

BLACK,STARTING SYSTEM-PUSH BUTTON

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0C010iGSK5#,UCK5#,USK5#..SR5200611-200904

NO PAINT REQ.

main69210-0C020iUSK51,56..L,Z201708-201908

PLATED

main69210-0C040-A0iUSK51,56..L,Z201908

SUPER WHITE 2,040

main69210-0C040-A2iUSK51,56..L,Z202008

PLATINUM WHITE PEARL MC.,089

main69210-0C040-B0iUSK51,56..L,Z201908

SILVER ME.,1D6

main69210-0C040-B1iUSK51,56..L,Z201908

GRAY ME.,1G3

main69210-0C040-B2iUSK51,56..L201908

CEMENT GRAY ME.,1H5

main69210-0C040-C0iUSK51,56..L,Z201908

ATTITUDE BLACK MC.,218

main69210-0C040-D0iUSK51,56..L,Z201908

RED M.M.,3R3

main69210-0C040-E0iUSK51,56..L201908-202008

BEIGE,4V6

main69210-0C040-E2iUSK51,56..L,Z201908

VINTAGE BROWN PEARL CS.,4X4

main69210-0C040-G0iUSK51,56..L,Z202008

DK.GREEN,6V7

main69210-0C040-J0iUSK51,56..L,Z201908

BLUE,8T6

main69210-0C040-J1iUSK51,56..L201908

GRAYISH BLUE,8W2

main69210-0C030-C0iUSK51..DCB..S200904-201308

ROAD WARRIOR PACKAGE,BLACK,202

main69210-0C030-D1iUSK50200904-201005

ROAD WARRIOR PACKAGE,RED,3L5

main69210-0C060-C0iUSK51,56..L202008

NIGHTSHADE,ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218

main69210-0C070iUSK5#..S201908

NO PAINT REQ.,STARTING SYSTEM-PUSH BUTTON

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0C010×2iGSK5#,UCK5#,USK5#200611-200904

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0C010×2iGSK5#,UCK5#,USK5#200611-200904

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-0C010-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D; GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..(L,S)200611-200904

BLACK,TRIM1#; BLACK,TRIM1#,2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-0C010-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D; GSK51,UCK51,52,56,57,USK51,52,56,57..HTWC..(L,S)200611-200904

BLACK,TRIM1#; BLACK,TRIM1#,2#

69310LOCK ASSY, FRONT DOOR, RH

main69030-06200iGSK5#,UCK5#,USK5#200611-200904

main69030-0C050iUSK55,56,57..HTWCF201109-201308

main69030-06210iUSK56,57..DCB..HTWCF..S200904-201109

WIRELESS DOOR LOCK-WITHOUT

main69030-0C060iUSK56,57..DCB..HTWCF..S201109-201308

WIRELESS DOOR LOCK-WITHOUT

main69310-0C020iGSK5#,UPK50,USK51,55,56..D200904-201308

WORK TRUCK PACKAGE

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0C030iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201308

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0C030iUPK5#,USK5#201308-201708

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iUSK5#..HTWC201708

69320LOCK ASSY, FRONT DOOR, LH

main69040-06180iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

main69040-0C050iGSK51201308-201409

main69320-0C020iGSK5#,UPK50,USK51,55,56..D200904-201308

WORK TRUCK PACKAGE

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02020×2iUPK5#,USK5#201308-201708

main69410-AA030×2iGSK5#,UCK5#,USK5#200611-200904

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0C030iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

main69710-0C040iUSK51,56..RCB201308-201708

main69710-0C050iGSK51,UPK5#,USK5#..CMAX,DCB201308-201405

main69710-0C051iUPK5#,USK5#..CMAX,DCB201406-201708

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0C030iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

main69710-0C040iGSK5#,UPK50,USK51,55,56..D200904-201308

main69710-0C050iGSK51,UPK5#,USK5#..CMAX,DCB201308-201405

main69710-0C051iUPK5#,USK5#..CMAX,DCB201406-201708

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0C030iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

main69750-0C040iUSK51,56..RCB201308-201708

main69750-0C050iGSK51,UPK5#,USK5#..CMAX,DCB201308-201405

main69750-0C051iGSK51..DCB201406-201409

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0C030iUSK51,56..L,S;GSK51,UPK51,56,USK52,57..S200904-201206

main69750-0C040iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

main69750-0C050iGSK51,UPK51,56,USK51,52,56,57..L,S201207-201308

main69750-0C051iUPK5#,USK5#..CMAX,DCB201406-201708

90148A0005

main90148-A0005

90148A0017

main90148-A0017

90167A0012

main90167-A0012

9016840106

main90168-40106

9018906018

main90189-06018

28 parts on this diagram · 1 diagram in section
