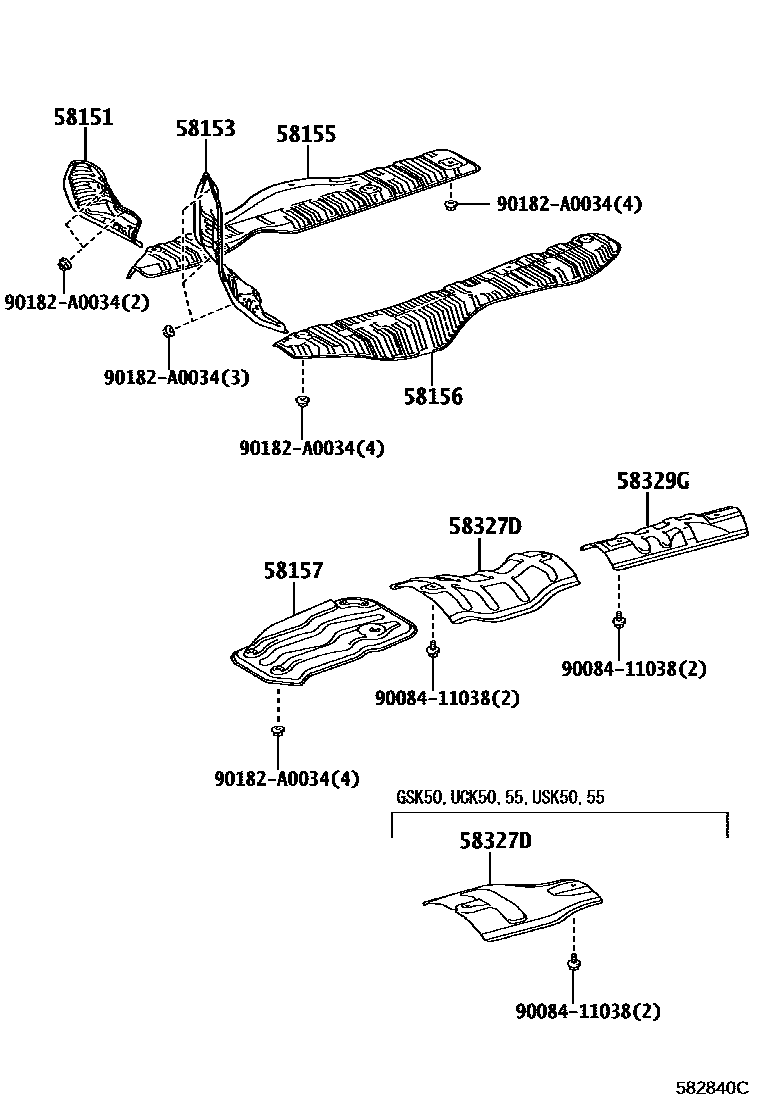

FLOOR INSULATOR

0001 1 0003 1 0005 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0C040iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

main58151-0C041iUPK5#,USK5#201706-201708

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0C050iGSK5#,UCK5#,USK5#200611-200904

main58153-0C051iUPK5#,USK5#201706-201708

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-0C020iGSK5#,UCK5#,USK5#200611-200904

main58155-0C021iUPK5#,USK5#201706-201708

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0C010iGSK5#,UCK5#,USK5#200611-200811

main58156-0C011iGSK5#,UCK5#,USK5#200812-200904

main58156-0C012iUPK5#,USK5#201706-201708

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-0C010iGSK5#,UCK50,51,55,56,USK50,51,55,56..CMAX,RCB200611-200904

main58157-0C011iUSK51,56..CMAX..HTWC201708

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-0C040iGSK50,UCK50,55,USK50,55;GSK51,UCK51,56,USK51,56..DCB200611-200904

main58327-0C080iUPK52,57;UPK51,56..D200904-201005

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0C010iGSK5#,UCK5#,USK5#200611-200904

9008411038

main90084-11038

90182A0034

main90182-A0034

9 parts on this diagram · 3 diagrams in section
