FRAME

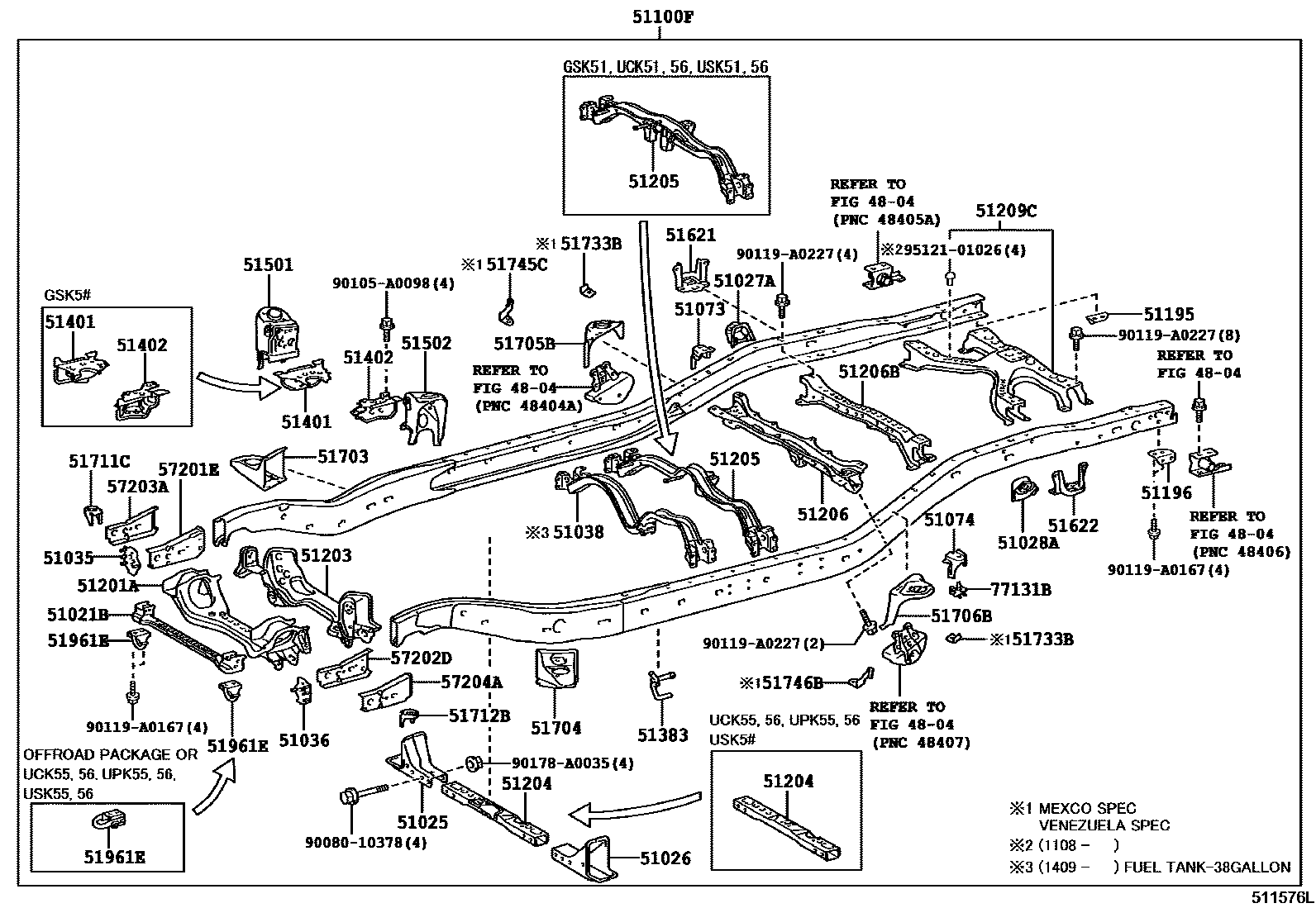

Parts diagram
4804REAR SPRING & SHOCK ABSORBER
→ Go to FIG 48-04
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
main51021-0C030i200611-201708
51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
main51025-0C040i200611-201708
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
main51026-0C020i200611-201708
51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
main51027-0C010i200611-201708
51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
main51028-0C010i200611-201708
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
main51035-0C040i200611-201708
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
main51036-0C040i200611-201708
51038MEMBER SUB-ASSY, FUEL TANK SUPPORT
main51038-0C040
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
main51073-0C010i200611-201708
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
main51074-0C010i200611-201708
51100FFRAME SUB-ASSY
main51001-0C330i200611-200807
main51001-0C331i200808-201109
main51001-0C332i201109-201308
main51001-0C340i200611-200807
main51001-0C341i200808-200904
main51001-0C360i200611-200807
main51001-0C361i200808-200904
main51001-0C370i200701-200807
main51001-0C371i200808-201005
main51001-0C380i200701-200807
OFFROAD PACKAGE
main51001-0C381i200808-200908
OFFROAD PACKAGE
main51001-0C382i200909-201005
OFFROAD PACKAGE
main51001-0C382i200909-201109
main51001-0C383i201109-201308
main51001-0C420i200701-200807
main51001-0C421i200808-201109
main51001-0C422i201109-201409
main51001-0C424i201409-201708
main51001-0C430i200701-200807
main51001-0C431i200808-200908
main51001-0C432i200909-201109
main51001-0C433i201109-201308
main51001-0C434i201308-201409
OFFROAD PACKAGE
main51001-0C435i201409-201708
OFFROAD PACKAGE
main51001-0C440i200611-200807
main51001-0C441i200808-201109
main51001-0C442i201109-201409
main51001-0C450i200611-200807
main51001-0C451i200808-200904
main51001-0C470i200611-200807
main51001-0C471i200808-200904
main51001-0C480i200701-200807
main51001-0C481i200808-201109
main51001-0C482i201109-201409
main51001-0C484i201409-201802
main51001-0C485i201802-202010
main51001-0C486i202010
main51001-0C490i200701-200807
OFFROAD PACKAGE
main51001-0C491i200808-200908
OFFROAD PACKAGE
main51001-0C492i200909-201005
main51001-0C492i200909-201109
OFFROAD PACKAGE
main51001-0C493i201109-201409
OFFROAD PACKAGE
main51001-0C495i201409-201802
OFFROAD PACKAGE
main51001-0C495i201409-201802
TRD PRO
main51001-0C496i201802-201911
main51001-0C530i200703-200807
main51001-0C531i200808-201109
main51001-0C532i201109-201409
main51001-0C534i201409-201802
main51001-0C535i201802-202010
main51001-0C536i202010
main51001-0C540i200703-200807
OFFROAD PACKAGE
main51001-0C541i200808-200908
OFFROAD PACKAGE
main51001-0C542i200909-201109
OFFROAD PACKAGE
main51001-0C542i200909-201005
main51001-0C543i201109-201409
OFFROAD PACKAGE
main51001-0C545i201409-201802
TRD PRO
main51001-0C545i201409-201802
OFFROAD PACKAGE
main51001-0C546i201802-201911
main51001-0C550i200611-200807
main51001-0C551i200808-200904
main51001-0C560i200611-200807
main51001-0C561i200808-200904
main51001-0C570i200701-200807
main51001-0C571i200808-201109
main51001-0C572i201109-201409
main51001-0C574i201409-201802
main51001-0C575i201802-202010
main51001-0C576i202010
main51001-0C580i200701-200807
main51001-0C581i200808-200908
main51001-0C582i200909-201109
main51001-0C583i201109-201308
main51001-0C584i201308-201409
OFFROAD PACKAGE
main51001-0C585i201409-201802
OFFROAD PACKAGE
main51001-0C586i201802-201911
main51001-0C650i200611-200807
main51001-0C651i200808-201109
main51001-0C652i201109-201409
main51001-0C660i200611-200807
main51001-0C661i200808-200904
main51001-0C670i200611-200807
main51001-0C671i200808-200904
main51001-0C680i200703-200807
main51001-0C681i200808-200904
main51001-0C690i200703-200807
main51001-0C691i200808-200904
main51001-0C740i200904-201109
main51001-0C741i201109-201308
main51001-0C780i200904-201005
main51001-0C800i200904-201109
main51001-0C801i201109-201409
main51001-0C803i201409-201802
main51001-0C804i201802-201907
main51001-0C830i200904-201109
main51001-0C831i201109-201409
main51001-0C833i201409-201802
main51001-0C834i201802-201907
main51001-0C850i200904-201005
main51001-0CJ70i201911-202010
main51001-0CJ71i202010
main51001-0CJ90i201911-202010
main51001-0CJ91i202010
main51001-0CK00i201911-202010
main51001-0CK01i202010
51195PATCH, REAR FRAME RAIL, RH
main51195-0C010i200611-201708
51196PATCH, REAR FRAME RAIL, LH
main51196-0C010i200611-201708
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
main51201-0C020i200611-201708
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
main51202-0C020i200904-200910
OFFROAD PACKAGE
main51202-0C020i200611-200904
main51202-0C021i201708
OFFROAD PACKAGE&FUEL TANK-38 GALLON
main51202-0C021i200910-201708
OFFROAD PACKAGE
main51202-0C030i200611-201708
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51203-0C040i200611-201708
main51203-0C050i200611-201907
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
main51204-0C090i200611-201308
main51204-0C100i201708-201911
OFFROAD PACKAGE&FUEL TANK-38 GALLON
main51204-0C100i200611-201708
OFFROAD PACKAGE
main51204-0C110i200611-201708
main51204-0C130i200611-201708
main51204-0C140i201708-201911
OFFROAD PACKAGE&FUEL TANK-38 GALLON
main51204-0C140i201308-201708
OFFROAD PACKAGE
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
main51205-0C060i200611-201708
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
main51206-0C040i200611-201708
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
main51209-0C030i200611-201109
main51209-0C031i201109-201708
51383ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER
main51383-0C010i200611-201708
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
main51401-0C060i200611-201409
main51401-0C070i200611-200904
main51401-0C080i200701-201708
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
main51402-0C060i200611-201409
main51402-0C070i200611-200904
main51402-0C080i200701-201708
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
main51501-0C010i200611-201812
main51501-0C020i201901
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
main51502-0C010i200611-201708
51621BRACKET, REAR BOUND STOPPER, RH
main51621-0C040i200611-201708
51622BRACKET, REAR BOUND STOPPER, LH
main51622-0C040i200611-201708
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
main51703-0C020i200611-201708
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
main51704-0C020i200611-201708
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
main51705-0C020i200703-201708
main51705-0C030i200611-201708
main51705-0C040i200611-201708
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
main51705-0C040i200611-201708
main51706-0C020i200703-201708
main51706-0C030i200611-201708
51711CBRACKET, CAB MOUNTING, NO.1 RH
main51711-0C010i200611-201708
51712BBRACKET, CAB MOUNTING, NO.1 LH
main51711-0C010i200611-201708
51733BBRACKET, CAB REAR MOUNTING, UNDER
51745CGUSSET, CAB MOUNTING, NO.3 RH
51746BGUSSET, CAB MOUNTING, NO.3 LH
51961EHOOK, FRONT
main51960-0C011i200611-201708
OFFROAD PACKAGE
main51960-0C011i201708
OFFROAD PACKAGE&FUEL TANK-38 GALLON
main51960-0C020i200611-201708
57201EEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
main57201-0C010i200611-201708
57202DEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
main57202-0C010i200611-201708
57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
main57203-0C010i200611-201708
57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
main57204-0C010i200611-201708
77131BBRACKET, FUEL INLET PIPE SUPPORT
main77131-0C020i200611-201308
main77131-0C021i201308-201708
9008010378
main90080-10378
90105A0098
main90105-A0098
90119A0167
main90119-A0167
90119A0227
main90119-A0227
90178A0035
main90178-A0035
9512101026
main95121-01026

49 parts on this diagram · 29 diagrams in section
