4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0C040i200611-200904

main47311-0C050i201708-201907

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10266i201308-201409

main90412-A0005i201501-201708

47312TUBE, FRONT BRAKE, NO.2

main47312-0C080i200611-200904

main47312-0C100i201708-201907

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10267i200611-200904

main90412-A0007i201501-201708

47313TUBE, FRONT BRAKE, NO.3

main47313-0C090i200611-200904

main47313-0C110i201708-201907

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2016×2i200611-200904

main90947-A2090×2i201308-201708

47314TUBE, FRONT BRAKE, NO.4

main47314-0C020i200611-200904

main47314-0C021i201409-201708

47315TUBE, FRONT BRAKE, NO.5

main47315-0C030i200611-200904

main47315-0C031i201409-201708

47316TUBE, FRONT BRAKE, NO.6

main47316-0C090i200904-201005

main47316-0C091i201409-201708

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-A2014i200904-201308

RH

main90947-A2015i200904-201005

LH

main90947-A2091i201308-201409

LH

main90947-A2092i201308-201409

RH

47317TUBE, FRONT BRAKE, NO.7

main47317-0C030i200611-200904

main47317-0C031i201409-201708

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2i200611-200904

main90401-A0001×2i201609-201708

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2i200611-200705

main47389-50021×2i200706-200904

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-A2013i200904-201308

main90947-A2089i201308-201708

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-A2013i200611-200904

main90947-A2089i201308-201708

47321TUBE, REAR BRAKE, NO.1

main47321-0C090i200611-200904

main47321-0C100i201708-201907

47321AWAY(FOR REAR BRAKE TUBE)

main90412-10268i200611-200904

47322TUBE, REAR BRAKE, NO.2

main47322-0C110i200611-200904

main47322-0C120i201708-201907

47323TUBE, REAR BRAKE, NO.3

main47323-0C090i200904-201005

main47323-0C100i201708-201907

47324TUBE, REAR BRAKE, NO.4

main47324-0C060i200904-201308

main47324-0C080i200904-201308

main47324-0C081i201409-201708

main47324-0C090i200904-201005

main47324-0C130i201708-201907

FUEL TANK-38 GALLON

main47324-0C140supersedes 47324-0C091i201409-201708

FUEL TANK-38 GALLON

47325TUBE, REAR BRAKE, NO.5

main47325-0C090i200904-201308

main47325-0C100i200904-201308

main47325-0C101i201708-201907

main47325-0C110i200904-201005

main47325-0C150i201708-201907

FUEL TANK-38 GALLON

main47325-0C160supersedes 47325-0C111i201708

FUEL TANK-38 GALLON

47326TUBE, REAR BRAKE, NO.6

main47326-0C080i200611-200904

main47326-0C081i201409-201708

main47326-0C090i201308-201408

main47326-0C091i201409-201708

47327TUBE, REAR BRAKE, NO.7

main47327-0C050i201308-201408

main47327-0C051i201708-201907

main47327-0C060i200904-201005

main47327-0C061i201708

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0C020i200904-201005

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0C010i201708

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-0C020×2i201708

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-0C010i201708

47371ACLAMP, BRAKE TUBE, NO.1

main90949-A4008×2i201708

47371CCLAMP, BRAKE TUBE, NO.7

main90469-A0004×7i200611-200904

47371DCLAMP, BRAKE TUBE, NO.8

main90461-08639×4i200611-200904

47372CLAMP, BRAKE TUBE, NO.2

main90949-A1010×4i200611-200904

main90949-A1030×4i201708-201907

47374BCLAMP, BRAKE TUBE, NO.4

main90949-A1011×3i200611-200904

47375CLAMP, BRAKE TUBE, NO.5

main90464-A0004i200611-200904

47381LBRACKET, BRAKE TUBE CLAMP, NO.3

main90949-A1012i200611-200904

main90949-A1027i201708-201907

9008017245

main90080-17245

90119A0169

main90119-A0169

90119A0174

main90119-A0174

90119A0183

main90119-A0183

90119A0184

main90119-A0184

90119A0222

main90119-A0222

9046808035

main90468-08035

90468A0007

main90468-A0007

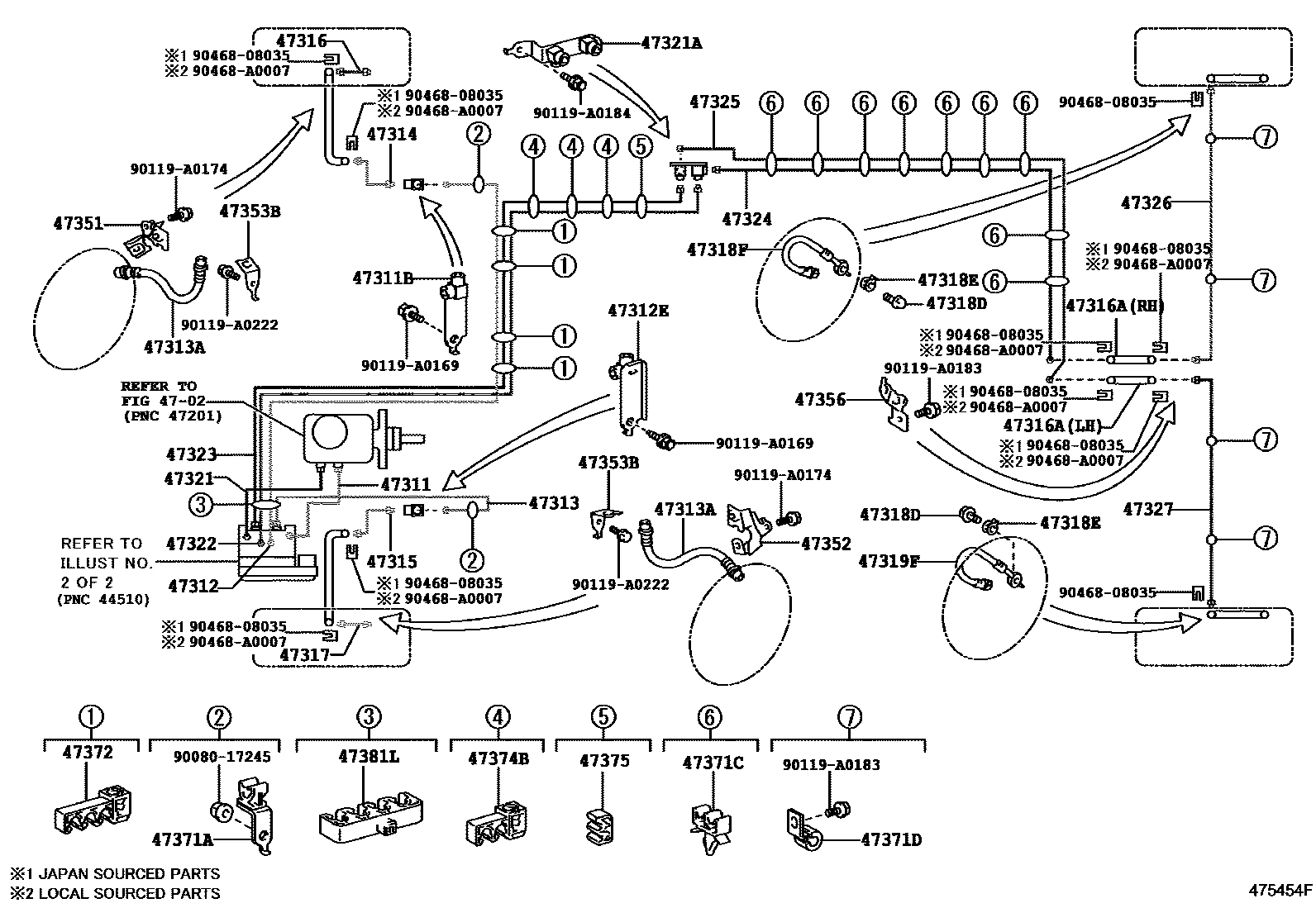

BRAKE TUBE & CLAMP
