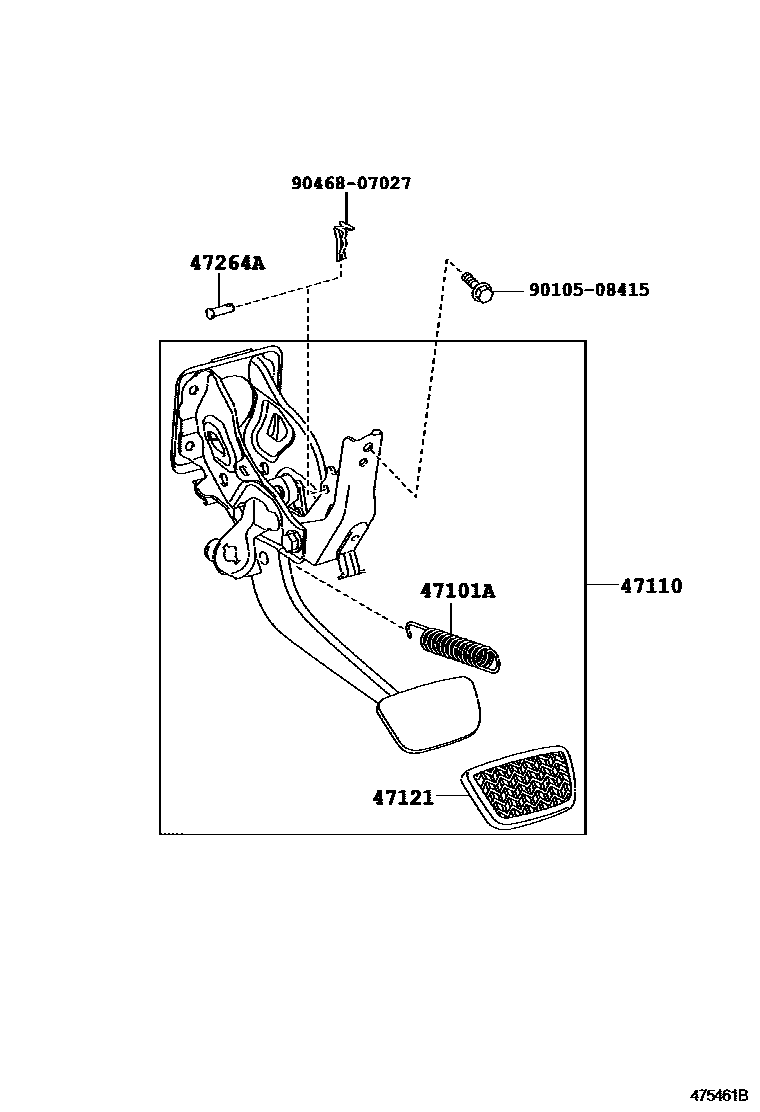

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-19006iGSK5#,UCK5#,USK5#200611-200904

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0C011iGSK5#,UCK5#,USK5#200611-200904

main47110-0C012iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

main47110-0C030iUPK5#;USK56,57..HTWCF201708-201907

47121PAD, BRAKE PEDAL

main47121-0E010iGSK5#,UCK5#,USK5#200611-200904

main47121-48010iUPK5#;USK56,57..HTWCF201708-201907

47264APIN(FOR PUSH ROD)

main90240-06028iUSK5#..HTWC201708

main90240-08078iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201308

9010508415

main90105-08415

9046807027

main90468-07027

6 parts on this diagram · 1 diagram in section
