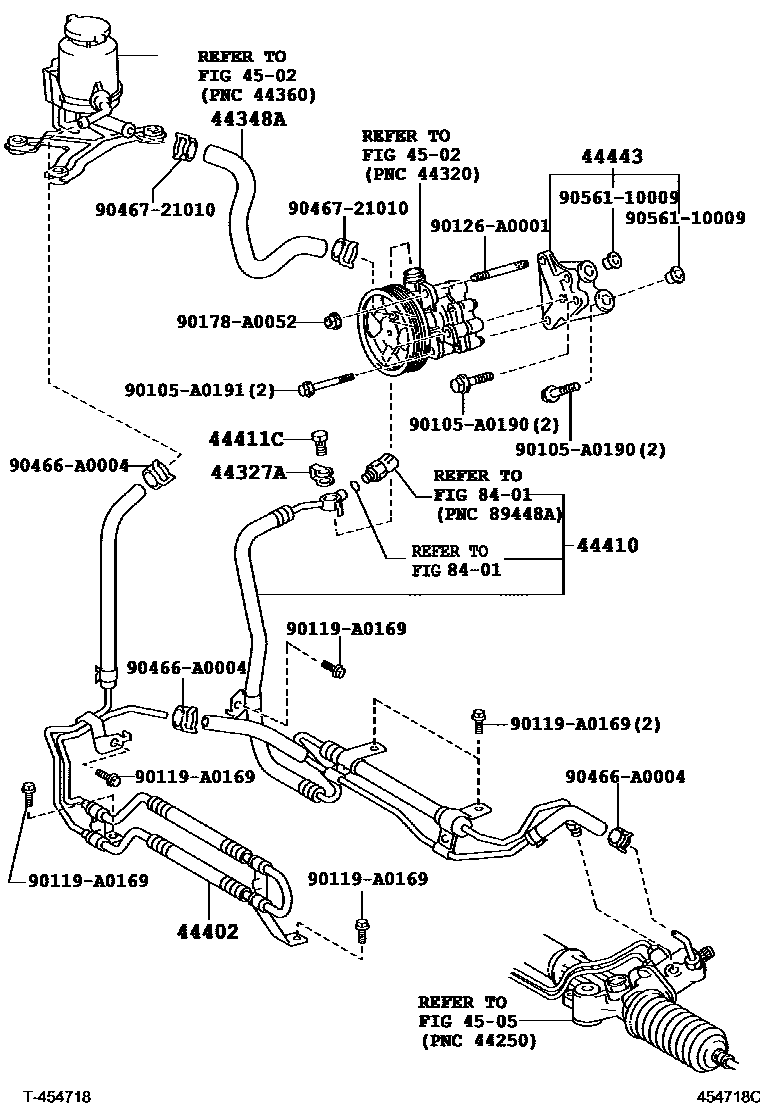

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30040iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201308

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0C040iGSK5#200904-201007

main44348-0C050iUCK5#200611-200904

main44348-0C060iUPK5#,USK5#201308-201708

main44348-0C070iGSK51201308-201409

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-0C010iGSK5#,USK5#200611-200903

main44402-0C011iUPK52,57;UPK51,55,56,USK50..D,L200910-201005

main44402-0C012iUPK5#,USK5#201603-201708

44410TUBE ASSY, PRESSURE FEED

main44410-0C090iGSK5#200611-200708

main44410-0C091iGSK5#200709-200810

main44410-0C100iUCK5#200611-200708

main44410-0C101iUCK5#200709-200712

main44410-0C102iUCK5#200801-200904

main44410-0C110iUSK5#200701-200706

main44410-0C111iUSK5#200707-200712

main44410-0C112iUSK5#200801-200810

main44410-0C120iGSK5#200811-200904

main44410-0C150iUPK50;UPK51,56..S200904-201007

main44410-0C180iUPK5#,USK5#201708-202103

main44410-0C181iUSK5#202104

main44410-0C190iUPK5#201007-201308

main44410-0C200iGSK51201308-201409

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iGSK5#,UCK5#,USK5#200611-200904

44443BRACKET, PUMP

main44443-0C010iUCK5#200611-200904

(L)

main44443-60100iUCK5#200611-200904

(J)

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105A0190

main90105-A0190

90105A0191

main90105-A0191

90119A0169

main90119-A0169

90126A0001

main90126-A0001

90178A0052

main90178-A0052

90466A0004

main90466-A0004

9046721010

main90467-21010

9056110009

main90561-10009

17 parts on this diagram · 4 diagrams in section
