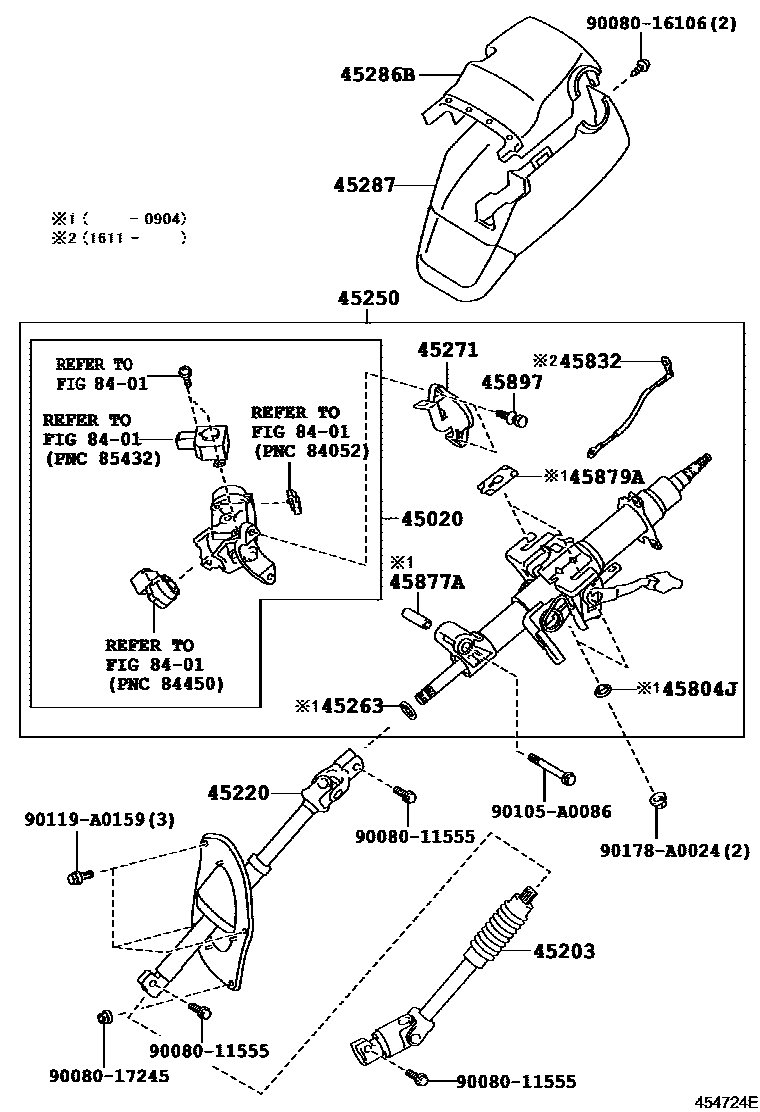

STEERING COLUMN & SHAFT
45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
POWER MEMORY PACKAGE
NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45220SHAFT ASSY, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
NUMBER OF PASSENGER-FRONT:2
NUMBER OF PASSENGER-FRONT:2 REAR:3
NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE
POWER MEMORY PACKAGE
POWER MEMORY PACKAGE
POWER MEMORY PACKAGE
45263RING, STEERING COLUMN, NO.1
NUMBER OF PASSENGER-FRONT:2
45271CLAMP, STEERING COLUMN, UPPER
POWER MEMORY PACKAGE
45286BCOVER, STEERING COLUMN, UPR
NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE,BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM44
BLACK,TRIM2#
NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE,BLACK,TRIM1#,2#,4#
POWER MEMORY PACKAGE,DK. BROWN,TRIM4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM1#,2#,44
DK. BROWN,TRIM44
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
POWER MEMORY PACKAGE,BLACK,TRIM1#,2#
POWER MEMORY PACKAGE,DK. BROWN,TRIM4#
POWER MEMORY PACKAGE,DK. BROWN,TRIM44
45804JCOLLAR SUB-ASSY, BREAK AWAY
POWER MEMORY PACKAGE
45832CABLE, TILT STEERING SUPPORT BOND
45877ASPACER, STEERING COLUMN BRACKET
POWER MEMORY PACKAGE
45879ACAPSULE, BREAK AWAY
POWER MEMORY PACKAGE
45897BOLT, STEERING LOCK SET
POWER MEMORY PACKAGE
8401
9008011555
main90080-11555
9008016106
main90080-16106
9008017245
main90080-17245
90105A0086
main90105-A0086
90119A0159
main90119-A0159
90178A0024
main90178-A0024
20 parts on this diagram · 4 diagrams in section
