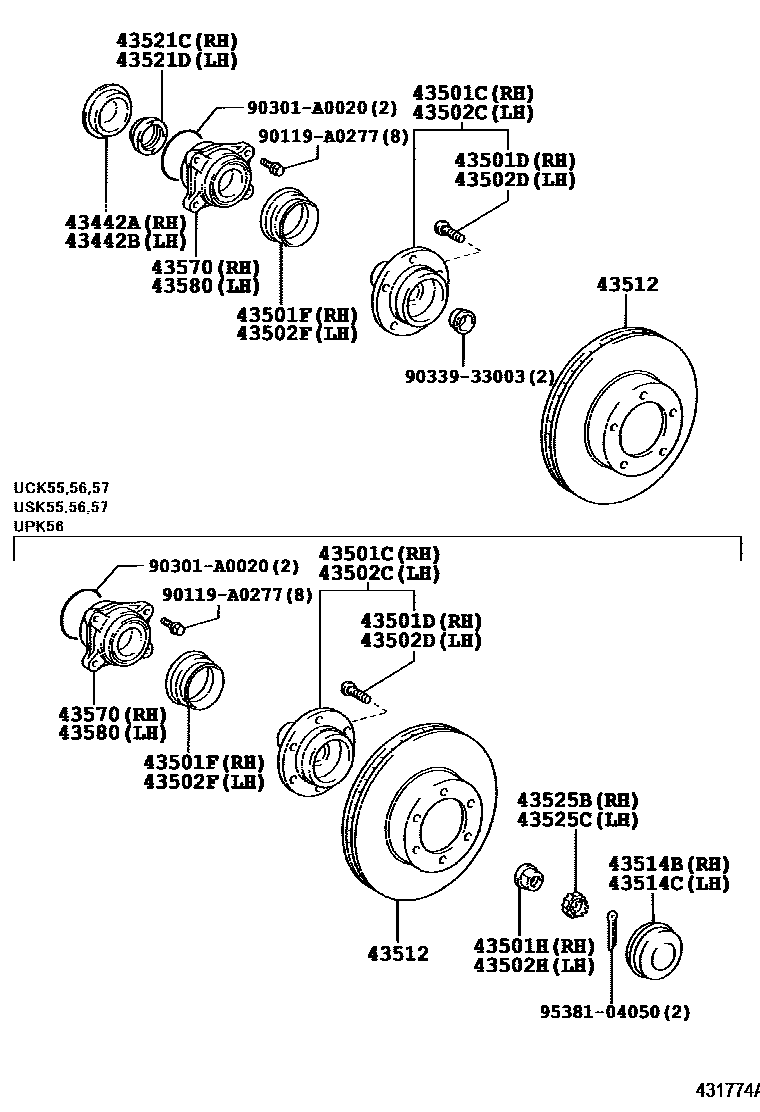

FRONT AXLE HUB

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0C010iGSK51201308-201409

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0C010iGSK5#,UCK50,51,52,USK50,51,52200611-200904

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0C021iGSK5#,UPK50,51,52,USK50,51,52200904-200907

main43502-0C031iUPK57;UPK55,56..D,L201001-201005

main43502-34050iGSK5#,UPK50,51,52,USK50,51,52200908-201001

main43502-34060iUPK55,56,57,USK55,56,57200909-201001

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02077×5iGSK5#,UCK5#,USK5#200611-200712

main90942-02083×5iGSK51201308-201409

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-A0002iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-32005iUCK55,56,57,USK55,56,57200611-200708

main90179-32007iUCK55,56,57,USK55,56,57200709-200904

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0C021iGSK5#,UPK50,51,52,USK50,51,52200904-200907

main43502-0C031iUPK57;UPK55,56..D,L201001-201005

main43502-34050iGSK5#,UPK50,51,52,USK50,51,52200908-201001

main43502-34060iUPK55,56,57,USK55,56,57200909-201001

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02077×5iGSK5#,UCK5#,USK5#200611-200712

main90942-02083×5iUPK5#,USK5#201308-201708

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-A0002iGSK5#,UCK5#,USK5#200611-200904

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-32005iUCK55,56,57,USK55,56,57200611-200708

main90179-32007iUCK55,56,57,USK55,56,57200709-200904

43512DISC, FRONT

main43512-0C020×2iGSK5#,UCK5#,USK5#200611-200904

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-34020iUCK55,56,57,USK55,56,57200611-200904

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-34020iUCK55,56,57,USK55,56,57200611-200904

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-0C010iGSK5#,UCK50,51,52,USK50,51,52200611-200904

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-0C010iGSK5#,UCK50,51,52,USK50,51,52200611-200904

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-0C010iUCK55,56,57,USK55,56,57200611-200904

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-0C010iUCK55,56,57,USK55,56,57200611-200904

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-0C010iGSK5#,UCK5#,USK5#200611-200904

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-0C010iGSK5#,UCK5#,USK5#200611-200904

90119A0277

main90119-A0277

90301A0020

main90301-A0020

9033933003

main90339-33003

9538104050

main95381-04050

23 parts on this diagram · 1 diagram in section
