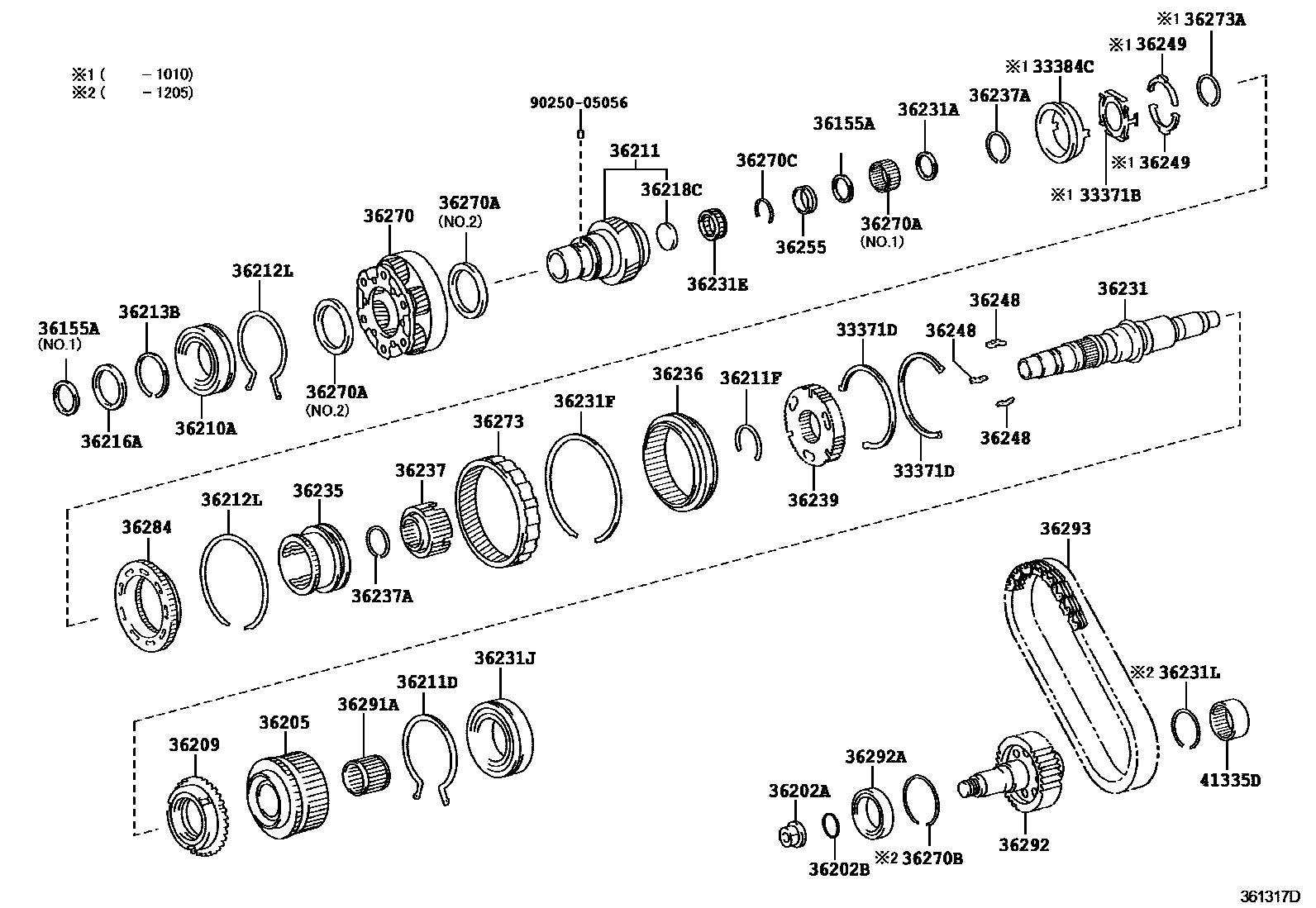

TRANSFER GEAR
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
33384CRING, SYNCHRONIZER, OUTER NO.3
sub33384-60091
36155ARING, TRANSFER OIL SEAL
NO.1
NO.2
36202ANUT(FOR TRANSFER OUTPUT REAR SHAFT)
36202BRING, O(FOR TRANSFER OUTPUT REAR SHAFT)
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36209RING SET, TRANSFER SYNCHRONIZER
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36211SHAFT, TRANSFER INPUT
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
T=2.4
36211FRING, SHAFT SNAP (FOR TRANSFER INPUT SHAFT)
36212LRING, SHAFT SNAP
T=2.4
T=1.8
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.13,MARK C
T=2.18,MARK D
T=2.23,MARK E
T=2.28,MARK F
T=2.33,MARK G
T=2.38,MARK H
T=2.43,MARK J
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36218CPLUG, TRANSFER INPUT SHAFT
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
T=2.3
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.0
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231LRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)
T=1.0,NO MARK
T=2.4
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.12,MARK B
T=2.17,MARK C
T=2.22,MARK D
T=2.27,MARK E
T=2.32,MARK F
T=2.37,MARK G
T=2.42,MARK H
T=2.47,MARK J
T=2.52,MARK K
36239HUB, TRANSFER DRIVE CLUTCH
36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
NO.1
NO.2
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
T=1.8,MARK B
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
FRONT
REAR
36293CHAIN, TRANSFER FRONT DRIVE
9025005056
main90250-05056
43 parts on this diagram · 2 diagrams in section
