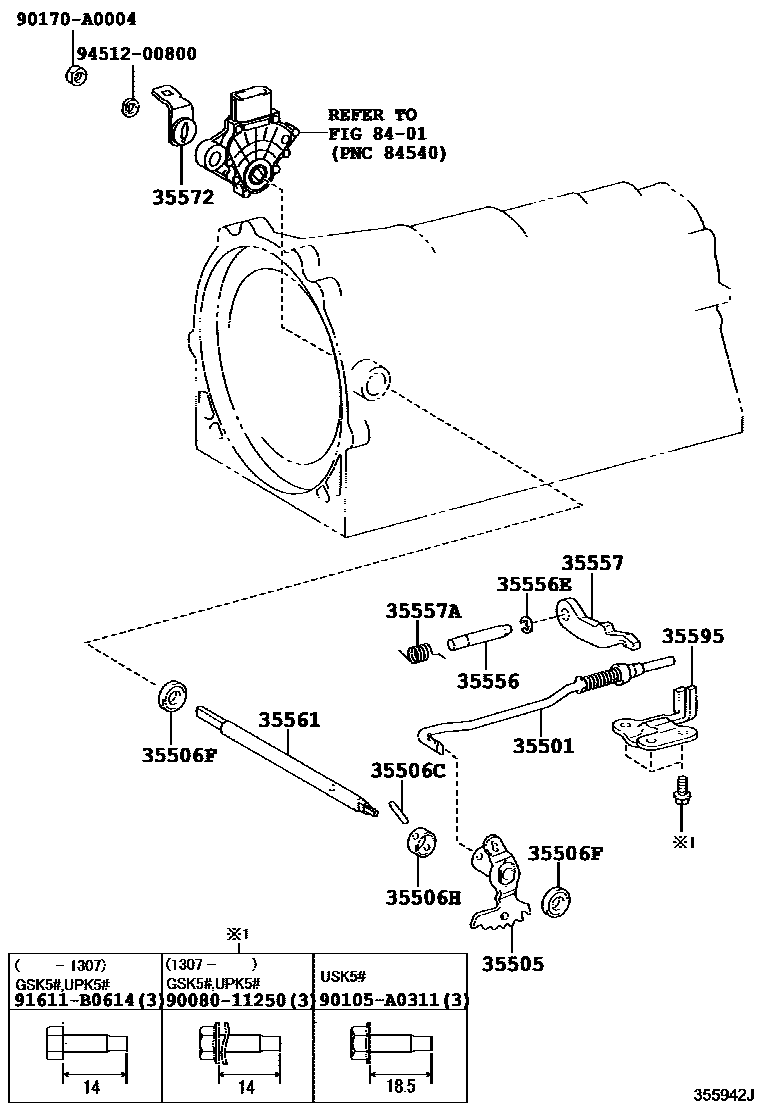

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A750E,A750F,A760E,A760F,AB60E0002 1A760E,A760F,AB60E,AB60F

35501ROD SUB-ASSY, PARKING LOCK

main35501-34020iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-34020iGSK5#,UCK5#,USK5#200611-200904

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGSK5#,UCK5#,USK5#200611-200904

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iGSK5#,UCK5#,USK5#200611-200904

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGSK5#,UCK5#,USK5#200611-200904

35556SHAFT, PARKING LOCK PAWL

main35556-0C010iGSK5#,UCK5#200611-200708

main35556-60020iUSK5#200701-200904

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGSK5#,UCK5#,USK5#200611-200904

35557PAWL, PARKING LOCK

main35557-34010iUSK5#200701-200710

main35557-60040iGSK5#,UCK5#200611-200904

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iUSK5#..HTWC201708

main90949-A3001iGSK5#,UPK5#,USK5#200904-200912

35561SHAFT, MANUAL VALVE LEVER

main35561-34010iUSK5#..HTWC201708

main35561-50020iGSK51201308-201409

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-34010iUPK5#;USK56,57..HTWCF201708-201907

35595BRACKET, PARKING LOCK PAWL

main35595-34010iUSK5#200701-200710

main35595-60030iGSK5#,UCK5#200611-200904

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011250

main90080-11250

90105A0311

main90105-A0311

90170A0004

main90170-A0004

91611B0614

main91611-B0614

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
