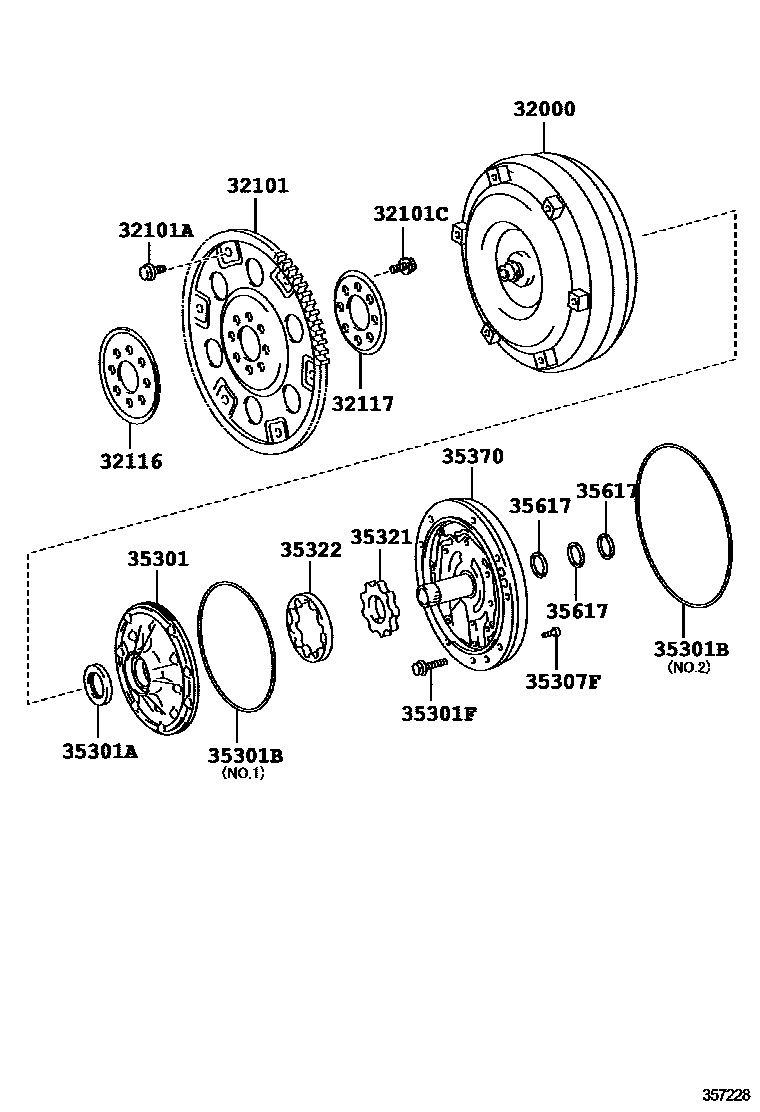

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(L)
(J)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.8-9,BLACK
*9-1.25PX12.8-9
*9-1.25PX12.8-8.8,SILVER WHITE
*9-1.25PX12.8-8.8
*10-1.25PX16-12.9,BLACK
*10-1.25PX16-12.9
*10-1.25PX16-13,SILVER WHITE
*10-1.25PX16-13
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX22-15
*10-1.25PX23-16,(J)
*10-1.25PX23-16,(L)
32117SPACER, DRIVE PLATE, REAR
35301BRING, O (FOR FRONT OIL PUMP BODY)
NO.2
NO.2
NO.1
NO.1
NO.2
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX45-35
*8-1.25PX40-30
*8-1.25PX40-30
*8-1.25PX45-35
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.76,MARK 0
T=10.76,MARK 1
T=10.76,MARK 2
T=10.76,MARK 3
T=10.76,MARK 4
T=10.76,MARK 5
T=10.76,MARK 6
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.76,MARK 0
T=10.76,MARK 1
T=10.76,MARK 2
T=10.76,MARK 3
T=10.76,MARK 4
T=10.76,MARK 5
T=10.76,MARK 6
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
35617RING, CLUTCH DRUM OIL SEAL
