FUEL INJECTION SYSTEM

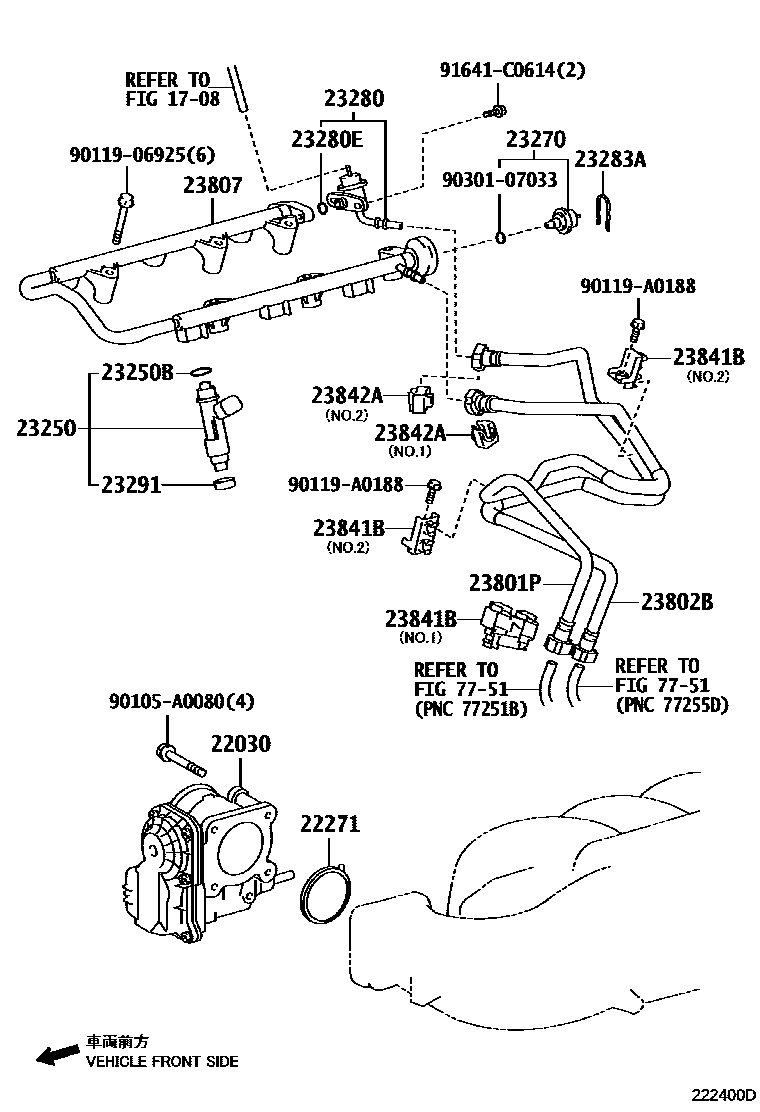

Parts diagram
1708VACUUM PIPING
→ Go to FIG 17-08
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-0F010i200611-200904
main22030-0P010i200611-200904
main22030-0S010i200904-201109
main22030-0S021i201308-201708
(L)
main22030-31060i201308-201409
main22030-38020i201109-201308
(J)
main22030-38041i201708-201907
(J)
22271GASKET, THROTTLE BODY
main22271-0P010i200611-200904
main22271-0S010i200807-200904
ENGINE NO.=5XXXXXX
main22271-0S020i200904-201308
main22271-31040i201308-201409
main22271-38010i200701-200904
ENGINE NO.=3XXXXXX
main22271-50050i200904-201308
23250INJECTOR ASSY, FUEL
main23209-09100×6i200904-201010
main23209-09110×8i200701-200709
MARK=23250-0S010
main23209-09150×8i200709-200801
MARK=23250-0S020
main23209-09151×8i201708-201907
(L)
main23209-0F020×8i200611-200904
main23209-39135×8i200701-200707
MARK=23250-38010
main23209-39165×8i200904-201308
(J)
main23209-39185×8i200806-200808
E/G NO.=5XXXXXX,(J)
main23209-39215×6i201010-201308
23250BRING, O(FOR FUEL INJECTOR)
main90301-07033×6i200904-201308
main90301-07037×8i200701-200904
ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX
main90301-A0036×8i201708
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
main23270-31010i200611-200904
main23270-31080i200908-201201
main23270-31140i201308-201409
main23270-38020×2i200904-201203
main23270-38021×2i201708-201907
main23270-50010i200611-200904
23280REGULATOR ASSY, FUEL PRESSURE
main23280-31010i200904-201010
main23280-31050i201010-201201
main23280-31051i201201-201308
main23280-38010i200904-201109
main23280-38040i200904-201203
main23280-38041i201308-201708
main23280-38050i200904-201206
main23280-38051i201708-201907
main23280-38090i201109-201206
main23280-38091i201708
main23280-50050i200611-200904
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
main90301-07034i201308-201409
main90301-07037i200611-200904
23283AHOLDER, FUEL PRESSURE REGULATOR
main23283-31010i200904-201308
23291INSULATOR, INJECTOR VIBRATION
main23291-23010×8i200808-200904
ENGINE NO.=5XXXXXX
main23291-28020×8i200904-201308
main23291-41010×8i200611-200904
23801PPIPE SUB-ASSY, FUEL, NO.1
main23271-0F010i200611-200904
NO.2
main23271-0S011i200904-201109
main23271-0S020i200904-201005
main23271-0S030i201109-201308
main23801-31140i200904-201010
main23801-31190i201308-201409
main23801-50071i200611-200904
NO.1
main23901-0S020i201308-201409
main23901-0S030i201308-201409
main23901-0S050i201409-201708
23802BPIPE SUB-ASSY, FUEL, NO.2
main23273-0F010i200611-200904
main23802-31060i200611-200904
main23802-31090i201308-201409
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-0F020i200611-200904
main23807-0P010i200904-201010
main23807-31120i201308-201409
main23814-38030i200701-200903
ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX
main23814-38031i200904-201109
main23814-38120i200808-200903
main23814-38121i200904-201109
main23814-38122i201109-201308
main23814-38130i200904-201205
main23814-38131i201708-201907
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
main23841-0F010i200611-200904
NO.1
main23841-0P020×2i200904-201010
NO.2
main23841-0P030i201010-201308
NO.2
main23841-0S010i201308-201409
main23841-0S020i201708-201907
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
main23842-0P010i200611-200904
NO.1
main23842-0P020i200611-200904
NO.2
main23842-0S010i201708
main23842-28010i200903-200904
ENGINE NO.=3XXXXXX; ENGINE NO.=5XXXXXX
7751FUEL TANK & TUBE
→ Go to FIG 77-51
90105A0080
main90105-A0080
9011906925
main90119-06925
90119A0188
main90119-A0188
9030107033
main90301-07033
91641C0614
main91641-C0614

21 parts on this diagram · 10 diagrams in section
