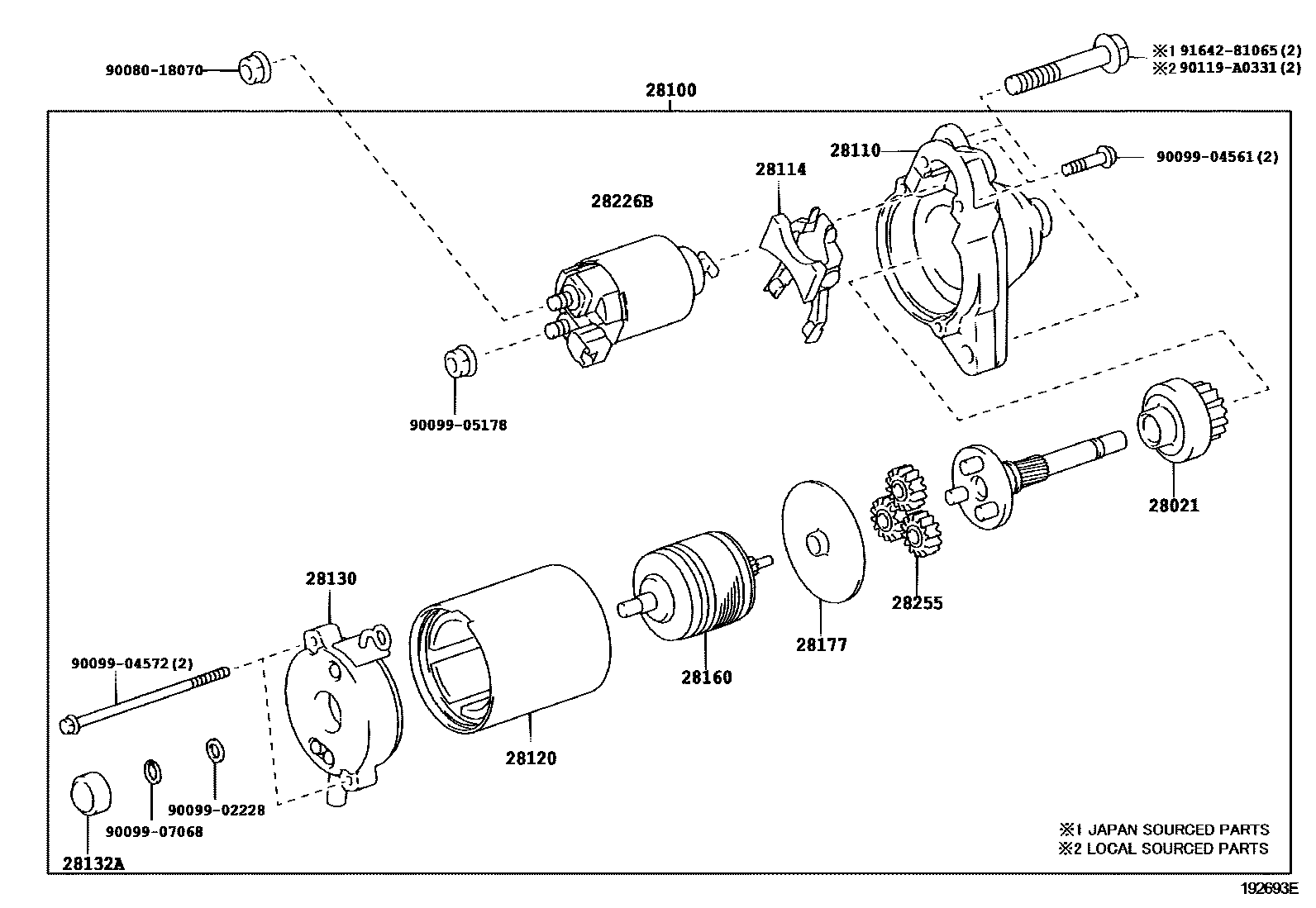

STARTER

0001 112V 1.6KW 0003 112V 2.0KW 0004 112V 1.4KW,2.0KW 0005 112V 2.0KW 0006 112V 1.6KW 0008 112V 2.0KW 0009 112V 1.4KW 0011 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0S031i3UR#..USK5#200904-201907

main28021-21060i1GRFE..GSK5#200611-201409

main28021-38020i3URFE..USK5#200701-200908

main28021-38040i3UR#..USK51,52,55,56,57200808-201104

28100STARTER ASSY

main28100-0S010i3UR#..USK5#200701-200908

12V 2.0KW

main28100-0S011i3UR#..USK5#200808-201103

12V 2.0KW

main28100-0S031i1URFE..UPK52,57;1URFE..UPK51,55,56..D,L200904-201907

12V 1.6KW

main28100-0S050i3URFBE..USK56,57201104-201907

12V 2.0KW

main28100-31040i1GRFE..GSK5#200611-200911

12V 1.6KW

main28100-31041i1GRFE..GSK5#200912-201409

12V 1.6KW

main28100-50090i2UZFE..UCK5#200611-200904

12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i1GRFE..GSK5#200611-201409

main28110-38010i3UR#..USK5#200701-201104

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i1GRFE..GSK5#200611-201409

28120YOKE ASSY, STARTER

main28120-0S030i1URFE..UPK5#200904-201907

main28120-28040i1GRFE..GSK5#200611-200808

main28120-28060i1GRFE..GSK51200808-201409

main28120-38020i1URFE..UPK50;1URFE..UPK51,56..S200904-201104

COLD AREA SPEC

main28120-38020i3UR#..USK5#200701-200904

main28120-38070i1URFE..UPK5#201104-201907

COLD AREA SPEC

main28120-38070i3URFE..USK5#201708

main28120-50040i2UZFE..UCK5#200611-200904

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31040i1GRFE..GSK5#200611-201409

main28130-38010i3UR#..USK51,52,55,56,57200701-201104

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1GRFE..GSK5#200611-201409

28160ARMATURE ASSY, STARTER

main28160-0S030i1URFE..UPK5#201401-201907

(L)

main28160-0S060i3URFE..USK5#201401-201907

(L)

main28160-0S060i1URFE..UPK5#201401-201907

COLD AREA SPEC,(L)

main28160-21060i1GRFE..GSK51200611-201409

main28160-37050i1URFE..UPK5#201401-201907

(J)

main28160-37050i1URFE..UPK52,57;1URFE..UPK51,55,56..D,L200904-201401

main28160-38020i3UR#..USK51,52,55,56,57200904-201104

COLD AREA SPEC

main28160-38020i3UR#..USK5#200701-200904

main28160-38070i3UR#..USK5#201401-201907

(J)

main28160-38070i3UR#..USK5#201104-201401

COLD AREA SPEC

main28160-38070i3UR#..USK5#201401-201907

COLD AREA SPEC,(J)

main28160-74070i2UZFE..UCK5#200611-200904

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1GRFE..GSK5#200611-201409

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i1GRFE..GSK5#200611-201409

28255GEAR, PLANET

main28255-28040i1GRFE..GSK51200611-201409

9008018070

main90080-18070

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

90119A0331

main90119-A0331

9164281065

main91642-81065

19 parts on this diagram · 8 diagrams in section
